The LM317 is a popular adjustable voltage regulator widely used in electronic circuits to provide a stable output voltage. When dealing with higher current requirements, engineers often explore connecting multiple LM317 regulators in parallel to enhance performance. In this article, we’ll dive into the LM317 in parallel circuit design, its components, working principle, and practical applications, ensuring you have all the information you need to implement this setup effectively.
What is the LM317 Voltage Regulator?
The LM317 is a versatile three-terminal adjustable regulator capable of supplying more than 1.5A of current with an output voltage range from 1.25V to 37V. It’s favored for its simplicity, reliability, and ability to maintain a constant output voltage despite changes in input voltage or load conditions. However, when higher current demands exceed the capacity of a single LM317, paralleling multiple units becomes a practical solution.
Why Use LM317 in Parallel?
Paralleling LM317 regulators allows you to distribute the current load across multiple devices, effectively increasing the total current capacity. This setup is ideal for applications requiring stable voltage with higher current, such as power supplies for audio amplifiers, LED drivers, or battery chargers. However, proper configuration is crucial to ensure balanced current sharing and prevent thermal runaway.

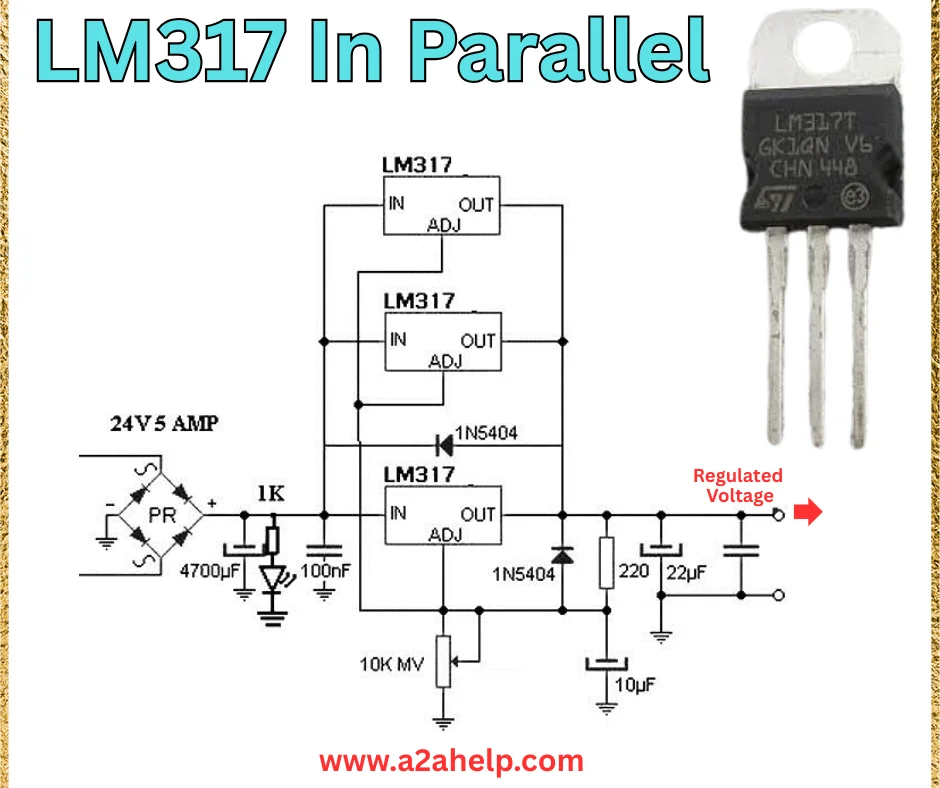

Analyzing the LM317 in Parallel Circuit Diagram
Let’s break down the circuit diagram provided:
- Power Input: The circuit starts with a 24V 5A power source, filtered by a 4700µF capacitor to reduce noise and stabilize the input.
- LM317 Regulators: Three LM317 ICs are connected in parallel. Each has its IN, OUT, and ADJ pins connected accordingly.
- Current Sharing: A 1N5404 diode and a 1kΩ resistor are used with each LM317 to ensure balanced current distribution. The diodes prevent reverse current flow, while the resistors help equalize the load.
- Output Filtering: Capacitors (100nF, 22µF, and 10µF) are placed at the output to smooth the regulated voltage and eliminate ripple.
- Adjustable Output: A 10kΩ potentiometer allows fine-tuning of the output voltage, ensuring flexibility in the design.
- Regulated Output: The final output is a stable regulated voltage, as indicated by the arrow in the diagram.
This configuration ensures that each LM317 handles a portion of the load, with the diodes and resistors playing a critical role in maintaining stability.
How Does the LM317 in Parallel Work?
In a parallel setup, the output voltages of all LM317s must be precisely matched to avoid one regulator overpowering the others. The internal reference voltage of the LM317 (1.25V) is used to set the output voltage via the ADJ pin and a resistor network. By adding diodes and resistors, the circuit compensates for slight differences in regulator characteristics, ensuring even current sharing. The capacitors further stabilize the output, making this a robust solution for high-current applications.
Step-by-Step Guide to Building the Circuit
- Gather Components: You’ll need three LM317 ICs, 1N5404 diodes, 1kΩ and 10kΩ resistors, 4700µF, 100nF, 22µF, and 10µF capacitors, and a 24V power supply.
- Connect the Power Supply: Attach the 24V 5A source with the 4700µF capacitor across the input.
- Wire the LM317s: Connect the IN pins to the positive input, OUT pins together to the output, and ADJ pins to the resistor network.
- Add Diodes and Resistors: Place a 1N5404 diode and 1kΩ resistor in series with each LM317’s output to balance the current.
- Install Capacitors: Add the 100nF and 22µF capacitors near the output for filtering, and the 10µF capacitor for additional stability.
- Adjust the Output: Use the 10kΩ potentiometer to set the desired output voltage.
- Test the Circuit: Power on and measure the output with a multimeter to ensure stability.
Benefits of Paralleling LM317 Regulators
- Increased Current Capacity: Combine the output of multiple LM317s to handle loads exceeding 1.5A.
- Improved Thermal Management: Distributing the load reduces heat dissipation per regulator.
- Cost-Effective: Utilizes widely available components without needing a specialized high-current regulator.
Common Applications
This parallel LM317 circuit is perfect for:
- Powering high-current devices like motors or LEDs.
- Building adjustable bench power supplies.
- Stabilizing voltage in battery charging systems.
Troubleshooting Tips
- Uneven Current Sharing: Check diode and resistor values; ensure all LM317s are from the same batch.
- Overheating: Verify proper heat sinking and load distribution.
- Output Instability: Inspect capacitor connections and replace if damaged.
Conclusion
The LM317 in parallel configuration is a smart and efficient way to meet high-current demands while maintaining voltage stability. By understanding the circuit diagram and following the assembly steps, you can create a reliable power supply tailored to your needs. For more electronics projects and detailed guides, visit www.a2help.com. Experiment with this setup, and let us know your results in the comments below!
