Understanding the LED Flasher Circuit: A Beginner’s Guide to Building Your Own

Introduction

LED flasher circuits are a staple in electronics, captivating hobbyists with their simplicity and versatility. Whether you’re creating a blinking bike light or a decorative display, these circuits are perfect for beginners and seasoned engineers alike.

What is an LED Flasher Circuit?

An LED flasher circuit makes an LED blink on and off at regular intervals, often using an oscillator like an astable multivibrator. The circuit in our schematic uses a CD4011 IC, a CMOS chip with four NAND gates, to create this effect, differing from the more common 555 timer or transistor-based designs. This configuration is ideal for driving higher-voltage loads like a 12V LED bulb, making it suitable for automotive or decorative applications. Its low power consumption and simplicity make it a great project for beginners learning about CMOS logic and timing circuits.

Components of the LED Flasher Circuit

The circuit uses a few key components, each playing a critical role in creating the flashing effect. Below is a table summarizing the components based on the schematic:

ComponentRoleTypical Value
CD4011 ICForms an astable multivibrator for oscillationCD4011BE
Resistor (R1)Controls charging/discharging of capacitor100kΩ
Capacitor (C1)Sets the timing for the flash rate4.7µF
NPN TransistorSwitches the LED bulb on and offZ44N or similar
12V LED BulbEmits light when poweredFilament-style LED
12V Power SupplyPowers the circuit12V DC (e.g., battery)
  • CD4011 IC: Contains four 2-input NAND gates, two of which (IC1a and IC1b) form the oscillator.
  • Resistor (R1): Limits current and works with the capacitor to set the flash frequency.
  • Capacitor (C1): Charges and discharges to control the timing of the oscillations.
  • Transistor: Acts as a switch, driven by the IC’s output to control the LED bulb.
  • 12V LED Bulb: The load that flashes, suitable for high-voltage applications.
  • Power Supply: Provides stable 12V DC, easily sourced from a battery or adapter.

How Does an LED Flasher Circuit Work?

The circuit operates as an astable multivibrator using two NAND gates of the CD4011 IC. Here’s a simplified explanation:

  1. The NAND gates (IC1a and IC1b) are connected to form an oscillator, with their outputs feeding back to each other’s inputs.
  2. The 100kΩ resistor (R1) and 4.7µF capacitor (C1) create an RC time constant, determining the oscillation frequency (~0.97 Hz, or one flash per second).
  3. The output of IC1b (Pin 4) produces a square wave, which drives the gate of the MOSFET.
  4. When the output is high, the transistor turns on, allowing current to flow through the 12V LED bulb, lighting it up. When the output is low, the transistor turns off, and the LED goes dark.
  5. This cycle repeats, creating the flashing effect.

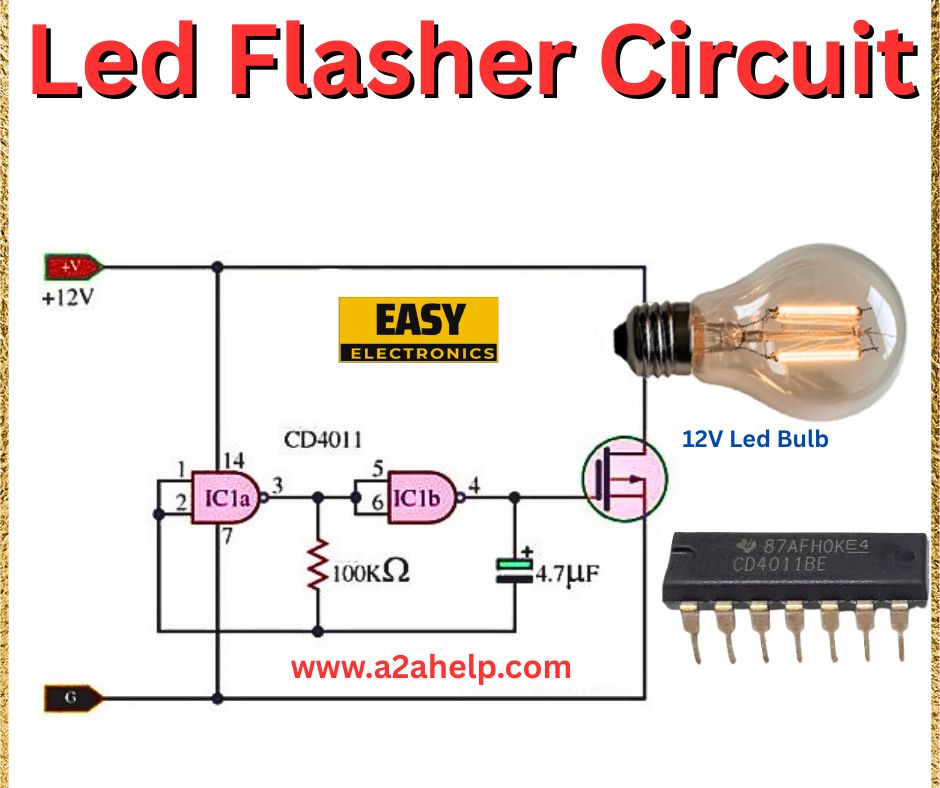

LED Flasher Circuit

Step-by-Step Guide to Building an LED Flasher Circuit

Follow these steps to build the CD4011-based LED flasher circuit on a breadboard:

  1. Gather Components:
    • CD4011 IC
    • 100kΩ resistor
    • 4.7µF capacitor
    • MOSFET (e.g., Z44N )
    • 12V LED bulb
    • 12V DC power supply (e.g., battery or adapter)
    • Breadboard and jumper wires
  2. Assemble the Circuit:
    • Place the CD4011 IC on the breadboard. Connect Pin 14 to +12V and Pin 7 to ground.
    • Tie Pins 1 and 2 of IC1a together and connect them to Pin 4 (output of IC1b).
    • Connect Pin 3 (output of IC1a) to Pins 5 and 6 of IC1b via the 100kΩ resistor.
    • Connect the 4.7µF capacitor between Pins 5 and 6 and ground.
    • Connect Pin 4 to the gate of the MOSFET.
    • Connect the transistor’s collector to one terminal of the 12V LED bulb, and the other terminal to +12V. Connect the transistor’s emitter to ground.
  3. Test the Circuit:
    • Power on the 12V supply and observe the LED bulb flashing ~once per second.
    • If it doesn’t work, check connections, ensure correct polarity for the capacitor and LED, and verify the transistor type.
  4. Troubleshoot:
    • No flashing: Check IC pin connections or replace the CD4011.
    • Constantly on/off: Verify the resistor and capacitor values.
    • Dim LED: Ensure the power supply is 12V.

Safety Tips: Always double-check polarity to avoid damaging components. Use a multimeter to verify connections before powering on.

Applications of LED Flasher Circuits

The CD4011-based LED flasher circuit is versatile and has numerous applications:

  • Automotive Indicators: Ideal for turn signals or hazard lights on bikes, as the 12V LED bulb is suitable for vehicle use.
  • Decorative Lighting: Use in events like weddings or Diwali celebrations in India for eye-catching displays.
  • Educational Projects: Perfect for learning about CMOS ICs, astable multivibrators, and transistor switching.
  • Security Indicators: Mimic a car alarm or security system to deter theft.

In India, components like the CD4011 and Z44N are readily available from suppliers like Utsource or local shops in electronics markets .

Tips for Optimizing Your LED Flasher Circuit

  • Adjust Flash Rate: Change the capacitor (C1) or resistor (R1) values to alter the frequency. For faster flashing, use a smaller capacitor (e.g., 1µF); for slower, use a larger one (e.g., 10µF).
  • Use Different LEDs: Swap the 12V LED bulb for colored LEDs (with appropriate resistors) for varied effects.
  • Power Supply Options: Use a 12V battery for portability or a regulated adapter for stable performance.
  • Experiment with CMOS ICs: Try other CMOS ICs like the CD4001 for similar functionality .

FAQs

What is a CD4011 IC?
The CD4011 is a CMOS IC with four 2-input NAND gates, used here to create an astable multivibrator for flashing LEDs.

How do I change the flash rate?
Adjust the resistor (R1) or capacitor (C1) values. A smaller RC product increases the frequency, making the LED flash faster.

Can I use a 555 timer instead?
Yes, a 555 timer can replace the CD4011 for a similar effect, but you’ll need a different circuit configuration .

Where can I buy components in India?
Purchase from online platforms like Amazon.in or Utsource, or visit local electronics markets in cities like Bengaluru or Delhi .

Conclusion

The CD4011-based LED flasher circuit is a fascinating project that combines simplicity with educational value. Whether you’re a beginner in India looking to explore electronics or an enthusiast building a bike indicator, this circuit is a great starting point. With components available from local suppliers like Utsource, you can create your own blinking masterpiece. Try building it today, and share your results or questions in the comments below!
