If you’re an electronics enthusiast looking to dive into the fascinating world of high-voltage experiments, building a Tesla coil circuit is an exciting project to start with. Tesla coils are iconic for their ability to generate high-voltage, low-current electricity, often producing stunning visual effects like electric arcs and sparks. In this article, we’ll break down a simple Tesla coil circuit, analyze its components, and guide you through the process of building one yourself. Whether you’re a beginner or an experienced hobbyist, this guide will help you understand the essentials of a Tesla coil circuit and how to create one safely.
What Is a Tesla Coil Circuit?
A Tesla coil is a type of resonant transformer circuit invented by Nikola Tesla in the late 19th century. It’s designed to produce high-voltage electricity at high frequencies, often used for educational demonstrations, wireless power experiments, and even musical performances with plasma speakers. The circuit in the image above is a simplified version of a Tesla coil, perfect for beginners looking to experiment with high-voltage electronics.
Analyzing the Tesla Coil Circuit Diagram

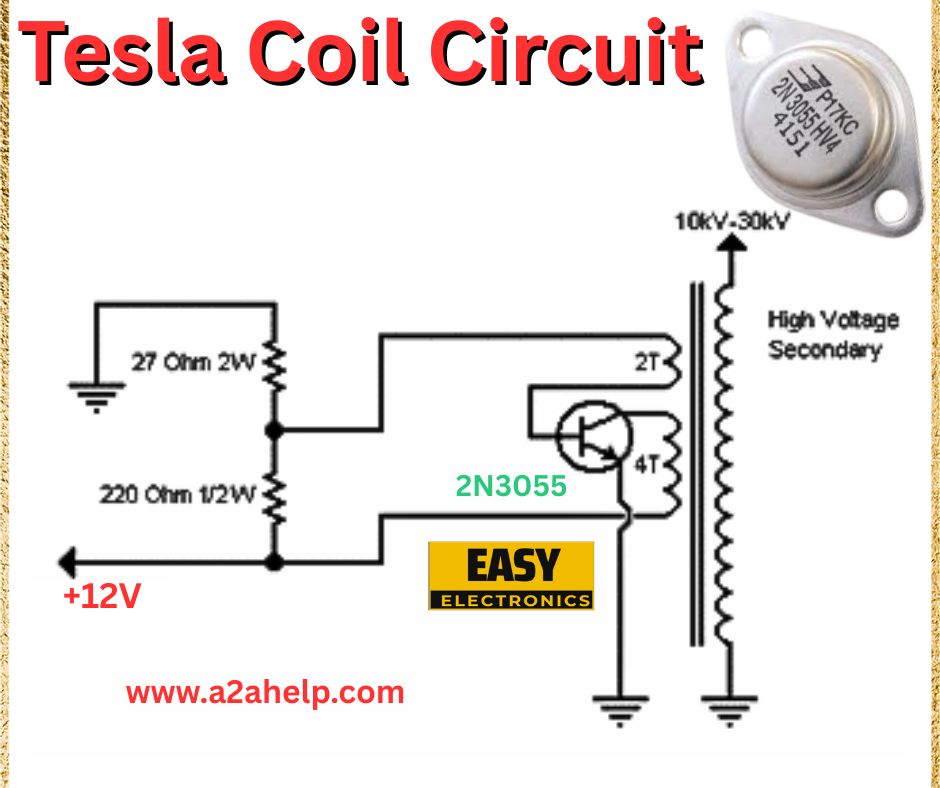

Let’s break down the components of the Tesla coil circuit shown in the diagram:
- Power Supply (+12V): The circuit is powered by a 12V DC source, which is a common voltage for small-scale Tesla coils. This can be supplied by a battery or a DC power adapter.
- Resistors (27 Ohm, 2W and 220 Ohm, 1/2W):
- The 27 Ohm (2W) resistor is connected in series with the base of the transistor to limit the current and protect the transistor.
- The 220 Ohm (1/2W) resistor is connected between the 12V supply and the base of the transistor, forming part of the biasing network for the transistor.
- Transistor (2N3055): The 2N3055 is an NPN power transistor used as a switch in this circuit. It drives the primary coil of the transformer by rapidly switching the current on and off, creating the oscillations needed for the Tesla coil to function.
- Transformer (2T Primary, 4T Feedback, High Voltage Secondary):
- The transformer has a primary coil with 2 turns (2T), a feedback coil with 4 turns (4T), and a high-voltage secondary coil.
- The primary and feedback coils work together to create oscillations, while the secondary coil steps up the voltage to a high level (10kV to 30kV, as indicated in the diagram).
- High-Voltage Diode (PTKC 4151W4, 10kV-30kV): This diode is connected in series with the secondary coil to rectify the high-voltage AC output into a DC signal, which can be useful for certain applications or to reduce interference.
- Ground Connections: The circuit includes multiple ground connections to ensure proper operation and safety.
How Does This Tesla Coil Circuit Work?
The Tesla coil circuit operates on the principle of electromagnetic induction and resonance. Here’s a simplified explanation of how it works:
- The 12V DC supply powers the circuit, and the 2N3055 transistor acts as an oscillator. The resistors (27 Ohm and 220 Ohm) bias the transistor to ensure it switches on and off rapidly.
- The primary coil (2T) and feedback coil (4T) form an oscillatory circuit. When the transistor switches on, current flows through the primary coil, inducing a magnetic field.
- The feedback coil senses this changing magnetic field and sends a signal back to the transistor’s base, causing it to switch off. This creates a continuous oscillation.
- The oscillations in the primary coil induce a high voltage in the secondary coil due to the large turns ratio. The secondary coil can produce voltages between 10kV and 30kV, depending on the design.
- The high-voltage diode rectifies the output, and the high voltage can be used to create sparks, light up gas-filled tubes, or power other experiments.
Step-by-Step Guide to Building Your Tesla Coil Circuit
Now that we understand the circuit, let’s walk through the process of building one. Safety Warning: Tesla coils produce high voltages that can be dangerous. Always exercise caution, wear protective gear, and work in a controlled environment.
Materials Needed:
- 12V DC power supply (e.g., a battery or adapter)
- 27 Ohm (2W) resistor
- 220 Ohm (1/2W) resistor
- 2N3055 NPN transistor
- Transformer with 2T primary, 4T feedback, and a high-voltage secondary coil (you can wind your own or purchase a pre-made one)
- High-voltage diode (rated for 10kV-30kV, such as PTKC 4151W4)
- Wires, soldering iron, and a breadboard or PCB for assembly
- Grounding wire and a grounding point
Steps:
- Set Up the Power Supply:
- Connect the positive terminal of your 12V DC power supply to the circuit and the negative terminal to ground. Ensure your power supply can handle the current draw (the 2N3055 can draw significant current, so a 1-2A supply is recommended).
- Assemble the Transistor and Resistors:
- Place the 2N3055 transistor on your breadboard or PCB.
- Connect the 220 Ohm resistor between the 12V supply and the base of the transistor.
- Connect the 27 Ohm resistor between the base of the transistor and the feedback coil (4T).
- Wire the Transformer:
- Connect the primary coil (2T) between the collector of the 2N3055 transistor and the 12V supply.
- Connect the feedback coil (4T) between the 27 Ohm resistor and ground.
- The secondary coil should be connected to ground on one end, with the other end leading to the high-voltage output.
- Add the High-Voltage Diode:
- Connect the high-voltage diode in series with the secondary coil’s output to rectify the high voltage. Ensure the diode is rated for the expected voltage (10kV-30kV).
- Ground the Circuit:
- Ensure all ground connections are securely made. Proper grounding is critical for safety and performance.
- Test the Circuit:
- Double-check all connections, then power on the circuit.
- If everything is wired correctly, you should hear a faint buzzing sound (from the oscillations) and see small sparks or arcs at the output of the secondary coil. You can test the output by bringing a grounded metal object near the secondary coil’s output (be cautious!).
Safety Tips for Working with Tesla Coils
- High Voltage Caution: The secondary coil produces extremely high voltages that can cause severe electric shocks. Never touch the output while the circuit is powered.
- Insulate Components: Use insulated tools and keep the high-voltage section of the circuit away from conductive surfaces.
- Ventilation: If you’re producing sparks, ensure you’re in a well-ventilated area to avoid inhaling ozone or other byproducts.
- Emergency Shutoff: Have a way to quickly disconnect the power supply in case of an issue.
Applications of a Tesla Coil Circuit
A small Tesla coil like this one can be used for:
- Educational demonstrations to teach about electromagnetic induction and resonance.
- Lighting up gas-filled tubes (like neon or fluorescent tubes) without direct contact.
- Creating small electric arcs for visual effects.
- Experimenting with wireless power transmission on a small scale.
Troubleshooting Common Issues
- No Output: Check your connections, especially around the transistor and transformer. Ensure the 2N3055 is functional and not overheating.
- Weak Sparks: The transformer’s secondary coil may need more turns, or your power supply might not be providing enough current.
- Overheating: The 2N3055 transistor can get hot. Consider adding a heatsink to dissipate heat.
Why Build a Tesla Coil?
Building a Tesla coil is a rewarding project that combines electronics, physics, and creativity. It’s a great way to learn about transformers, resonance, and high-voltage systems while creating something visually spectacular. Plus, it’s a fantastic conversation starter for your next science fair or maker event!
Conclusion
This simple Tesla coil circuit is an excellent starting point for anyone interested in high-voltage electronics. By following the steps above and taking proper safety precautions, you can build your own Tesla coil and explore the wonders of high-frequency, high-voltage electricity. Whether you’re using it for educational purposes or just for fun, a Tesla coil is a classic project that never fails to impress.
Ready to get started? Gather your components, follow the guide, and let us know how your Tesla coil project turns out! For more electronics projects and tutorials, visit [your website link] and join our community of makers and innovators.
