Introduction to Temperature Sensor Circuits
Temperature sensor circuits are essential for monitoring and controlling temperature in various applications, from home automation to industrial systems. In this article, we’ll explore a simple yet effective temperature sensor circuit using a thermistor, BC547 transistors, and an LED indicator. This beginner-friendly project is perfect for electronics enthusiasts looking to build a practical circuit with minimal components.
What You’ll Need for the Temperature Sensor Circuit
To build this temperature sensor circuit, gather the following components:
- Thermistor (10kΩ NTC): A temperature-sensitive resistor that decreases resistance as temperature rises.
- BC547 Transistors (2 units): NPN transistors for switching and amplification.
- Resistors: 10kΩ (2 units) and 390Ω (1 unit).
- LED: To indicate temperature changes.
- 9V Battery: Power source for the circuit.
- Breadboard and Jumper Wires: For easy assembly.
How the Temperature Sensor Circuit Works

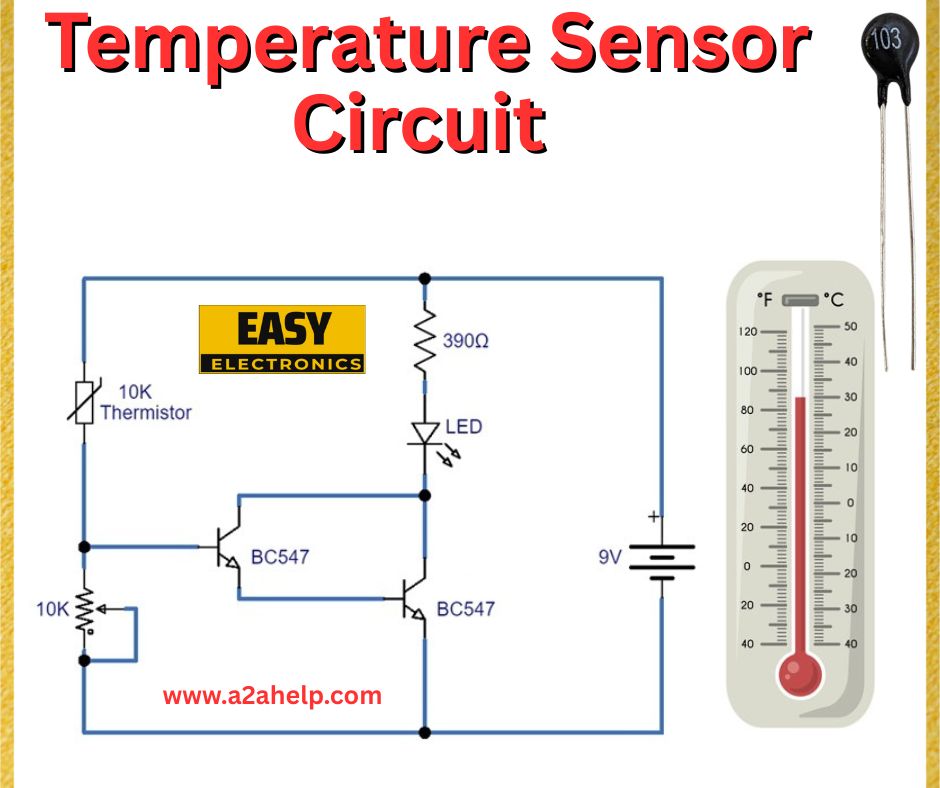

The circuit diagram (shown above) illustrates a straightforward design for temperature sensing. Here’s a breakdown of its operation:
- Thermistor and Voltage Divider: The 10kΩ thermistor forms a voltage divider with a 10kΩ resistor. As temperature increases, the thermistor’s resistance decreases, altering the voltage at the divider’s midpoint.
- BC547 Transistor Switching: This voltage is fed to the base of the first BC547 transistor. When the temperature rises, the thermistor’s resistance drops, increasing the base voltage. Once this voltage exceeds the transistor’s threshold (around 0.7V), the transistor turns on.
- LED Activation: The first BC547 drives the second BC547, which controls the LED. A 390Ω resistor limits the current through the LED to prevent damage. When the transistors are active, the LED lights up, indicating a temperature rise above the threshold.
- Power Supply: The entire circuit is powered by a 9V battery, making it portable and easy to use.
Step-by-Step Guide to Build the Circuit
- Set Up the Voltage Divider: Connect the 10kΩ thermistor and a 10kΩ resistor in series between the 9V supply and ground. The junction between them connects to the base of the first BC547 transistor.
- Wire the First BC547: Connect the emitter of the first BC547 to ground and its collector to the base of the second BC547 through a 10kΩ resistor.
- Configure the Second BC547: The emitter of the second BC547 goes to ground, and its collector connects to the LED’s cathode. The LED’s anode connects to the 9V supply through a 390Ω resistor.
- Power the Circuit: Connect the 9V battery and test the circuit by exposing the thermistor to heat (e.g., holding it between your fingers). The LED should light up as the temperature increases.
Why Use a Thermistor in Temperature Sensing?
Thermistors, particularly Negative Temperature Coefficient (NTC) types, are ideal for temperature sensing because:
- They offer high sensitivity to temperature changes.
- They are cost-effective and easy to integrate into circuits.
- Their resistance-temperature relationship is predictable, making them reliable for DIY projects.
Applications of the Temperature Sensor Circuit
This simple circuit can be used in various scenarios:
- Home Automation: Monitor room temperature and trigger alerts.
- Overheating Protection: Detect high temperatures in electronic devices.
- Educational Projects: Teach students about transistors, thermistors, and circuit design.
Tips for Optimizing the Circuit
- Adjust Sensitivity: Modify the 10kΩ resistor in the voltage divider to change the temperature threshold at which the LED turns on.
- Replace the LED: Use a buzzer or relay in place of the LED for different types of alerts.
- Add Calibration: Incorporate a potentiometer to fine-tune the circuit for specific temperature ranges.
Safety Precautions
- Ensure proper polarity when connecting the battery to avoid damaging components.
- Double-check the LED’s current-limiting resistor (390Ω) to prevent burnout.
- Handle the thermistor carefully, as excessive heat can alter its characteristics.
Conclusion
Building a temperature sensor circuit with a thermistor and BC547 transistors is a fantastic way to dive into electronics. This project not only teaches fundamental concepts like voltage dividers and transistor switching but also results in a practical device for temperature monitoring. Whether you’re a hobbyist or a student, this circuit is a great starting point for exploring the world of sensors and automation.
