A step-up DC to DC converter, also known as a boost converter, is a handy circuit for increasing a low DC voltage to a higher one. Whether you’re powering a high-voltage device from a small battery or experimenting with electronics, this circuit is a must-know for hobbyists and engineers alike. In this guide, we’ll analyze a simple step-up DC to DC converter circuit that boosts a 3V input to an output range of 25V to 100V. We’ll break down its components, explain how it works, and provide a step-by-step guide to build it yourself.
What Is a Step-Up DC to DC Converter?
A step-up DC to DC converter is a type of power electronics circuit that increases (or “boosts”) a DC input voltage to a higher DC output voltage. Unlike transformers, which work with AC, a boost converter uses an inductor, a switching element, and a diode to achieve this voltage increase. The circuit we’ll explore today is a simple design that uses basic components to step up a 3V input to a variable output of 25V to 100V, making it versatile for various applications.

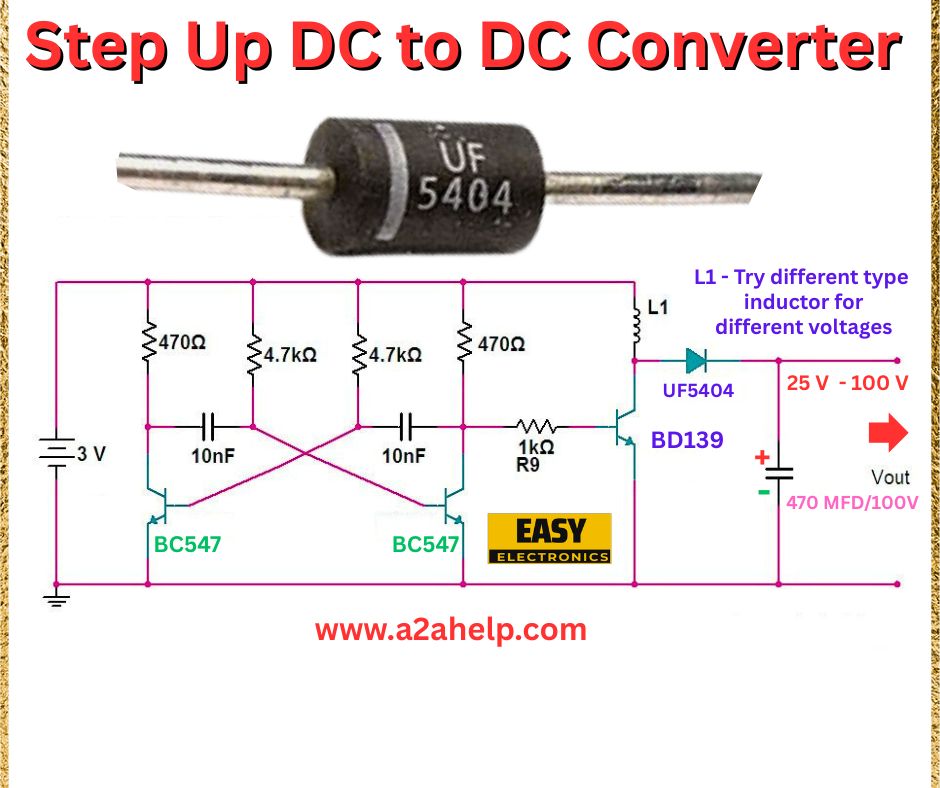

Components of the Step-Up DC to DC Converter Circuit
The circuit diagram includes the following components:
- Input Voltage: 3V DC (e.g., from two AA batteries).
- Transistors (2 x BC547): NPN transistors used for switching and oscillation.
- Resistors: 470Ω (2 units), 4.7kΩ (2 units), and 1kΩ for biasing and feedback.
- Capacitors: 10nF (2 units) for timing in the oscillator circuit.
- Inductor (L1): A custom inductor (value not specified, but noted to vary for different output voltages).
- Diode (UF5404): A fast-switching diode to handle the boosted voltage.
- Transistor (BD139): Switching process, amplifying the current through the inductor.
- Output Capacitor: 470µF/100V to smooth the output voltage.
- Output Voltage (Vout): Adjustable between 25V and 100V, depending on the inductor and load.
These components form a self-oscillating boost converter that steps up the voltage efficiently.
How Does This Step-Up DC to DC Converter Work?
Let’s break down the operation of this circuit step by step:
- Oscillator Circuit with Transistors: The two BC547 transistors, along with the 4.7kΩ resistors and 10nF capacitors, form a self-oscillating circuit (an astable multivibrator). This setup generates a square wave signal that drives the switching action. The 470Ω resistors provide biasing for the transistors, ensuring they switch on and off rapidly.
- Switching and Inductor Action: The oscillating signal from the transistors drives the inductor (L1). When the transistor switches on, current flows through the inductor, storing energy in its magnetic field. When the transistor switches off, the inductor’s magnetic field collapses, inducing a high voltage (higher than the input 3V) according to Faraday’s law of induction.
- Voltage Boost with the Diode: The UF5404 diode allows the induced voltage from the inductor to flow to the output while preventing backflow to the input. The UF5404 is a fast-recovery diode, ideal for handling the high-frequency switching in this circuit.
- BD139 Transistor : BD139 is a common NPN transistor. it’s used as a transistor to assist in the switching process, amplifying the current through the inductor.
- Output Smoothing with the Capacitor: The 470µF/100V capacitor smooths the pulsating DC output from the inductor and diode, providing a stable DC voltage. The 1kΩ resistor (labeled R9) may act as a bleeder resistor to discharge the capacitor when the circuit is off.
- Adjustable Output Voltage: The output voltage (25V to 100V) depends on the inductor value (L1) and the load. The note “Try different type inductor for different voltages” suggests experimenting with the inductor’s inductance to achieve the desired output.
Why Build This Step-Up DC to DC Converter?
This circuit is ideal for several reasons:
- Simplicity: It uses a minimal number of components, making it accessible for beginners.
- Versatility: The adjustable output (25V to 100V) makes it suitable for various applications.
- Educational Value: It teaches the principles of boost converters, inductors, and switching circuits.
- Low Input Voltage: It can operate from a low 3V input, such as a small battery.
However, this circuit lacks feedback regulation, so the output voltage will vary with the load. For precise applications, consider adding a feedback loop or using a dedicated boost converter IC.
How to Build This Step-Up DC to DC Converter
Here’s a step-by-step guide to assembling the circuit:
- Gather Your Components: Source the BC547 transistors, UF5404 diode, BD139 transistor, resistors, capacitors, and a suitable inductor. The inductor value isn’t specified, so start with a 100µH inductor and experiment.
- Assemble the Oscillator: Connect the two BC547 transistors in an astable multivibrator configuration. Solder the 4.7kΩ resistors and 10nF capacitors as shown, and add the 470Ω resistors for biasing.
- Add the Inductor and Diode: Connect the inductor (L1) between the collector of one BC547 and the anode of the UF5404 diode. The cathode of the diode goes to the output.
- Install the BD139 Transistor: Connect the BD139 (used as a transistor) to assist in switching, following the diagram.
- Add the Output Capacitor and Resistor: Solder the 470µF/100V capacitor across the output, and add the 1kΩ resistor in parallel to discharge the capacitor when off.
- Test the Circuit: Apply a 3V input (e.g., from two AA batteries) and measure the output voltage. Adjust the inductor value to achieve the desired output (25V to 100V).
Safety Considerations
- High Voltage Warning: The output can reach up to 100V, which can cause a shock. Handle with care and insulate exposed connections.
- Component Ratings: Ensure the capacitor and diode are rated for the maximum output voltage (100V or higher).
- Heat Dissipation: The transistors and inductor may get warm during operation. Provide adequate ventilation.
Applications of This Step-Up DC to DC Converter
This circuit can be used for:
- Powering high-voltage devices like LEDs or small motors from a low-voltage battery.
- DIY projects requiring a variable high-voltage supply.
- Educational experiments to learn about boost converters and switching circuits.
Conclusion
Building a step-up DC to DC converter is a fantastic way to explore power electronics while creating a practical circuit for boosting voltage. This simple design, using BC547 transistors, an inductor, and a UF5404 diode, can step up a 3V input to a range of 25V to 100V, making it versatile for various projects. While it’s a basic circuit without regulation, it’s perfect for learning and experimentation. Try building it yourself, and let us know your results! For more electronics tutorials, keep exploring our blog.
