Controlling the temperature of a soldering iron is essential for safe, clean, and professional solder joints. Overheated tips can damage components and circuit boards, while underheating leads to cold, unreliable connections. Commercial temperature-controlled soldering stations are often expensive, but you can achieve accurate control with a simple electronic circuit. This article demystifies a proven soldering iron temperature controller design, explains how each part works, and shows you how to build your own reliably.
Why Do You Need Soldering Iron Temperature Control?
Soldering is at the heart of electronics work—from assembling boards to repairs. But using a soldering iron with no temperature regulation risks overheating delicate components or failing to melt solder efficiently. Temperature control results in:
- Consistent solder joints.
- Less oxidation and tip wear.
- Safer handling for sensitive PCBs and components.
- Energy savings over continuous operation.

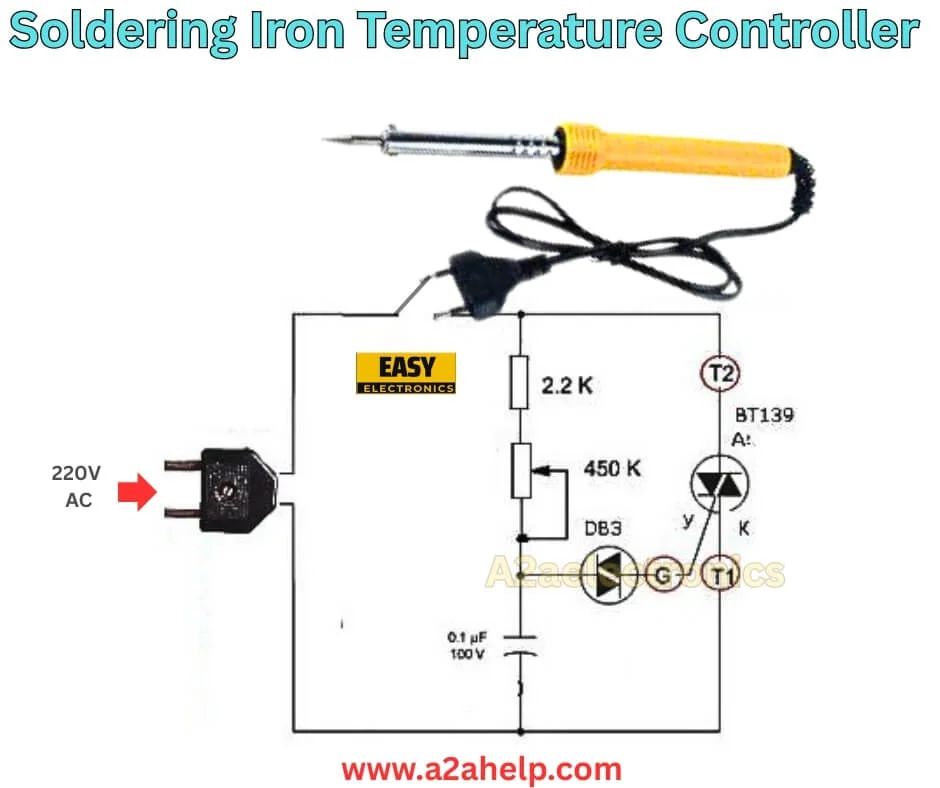

Understanding the Circuit Diagram
Let’s break down the core components of your circuit and see how they work together.
- AC Power Input (220V): The circuit connects directly to mains power. Exercise extreme caution during assembly and use, and always insulate exposed wires.
- Resistor (2.2 KΩ): Limits the current and establishes timing for triggering the controller.
- Potentiometer (450 KΩ): Adjustable resistor to set the desired temperature by changing conduction timing.
- Capacitor (0.1 μF / 100 V): Shapes the AC waveform for more reliable TRIAC triggering.
- DB3 DIAC: A Semiconductor device that outputs a sharp trigger pulse once the threshold voltage is reached, ensuring the TRIAC (main switch) can reliably ignite.
- BT139 TRIAC: The heart of the power control stage; a bidirectional electronic switch that regulates how much current flows through the soldering iron heater.
How Does It Control Temperature?
- When powered, the AC voltage enters the circuit and charges the capacitor.
- The potentiometer adjusts how quickly the capacitor charges during each half-cycle.
- Once the capacitor reaches a critical voltage, the DIAC snaps on and triggers the gate of the TRIAC.
- The TRIAC then allows AC power to reach the soldering iron only for a calculated slice of each waveform, effectively “dimming” the power like a light dimmer switch.
- Adjusting the potentiometer changes the firing angle. Earlier firing means more power to the iron (hotter tip); later firing decreases power and keeps the tip cooler.
- This phase control means you have a stepless, adjustable temperature without complex sensors or costly digital systems.
Component List and Their Function
| Component | Value / Model | Function |
|---|---|---|
| Resistor | 2.2 KΩ | Limits current, sets time constant |
| Potentiometer | 450 KΩ | User-adjustable temperature control |
| Capacitor | 0.1 μF, 100V | Smoothens, shapes waveform |
| DIAC | DB3 | Sharp pulse trigger to TRIAC |
| TRIAC | BT139 | Phase-control power switching |
| Soldering Iron | (Generic) | Main heating element |
How to Build and Use the Controller
- Assemble on a PCB: For safety, use a well-insulated base and keep AC connections shielded.
- Mount the Potentiometer: Position it so you can easily adjust the temperature during work.
- Wire the Soldering Iron via the Controller: All heating passes through the TRIAC, so it’s regulated.
- Test Carefully: Power up, adjust the control knob, and observe how the soldering iron heats up and stabilizes.
Important Safety Tips
- AC Danger: This circuit deals directly with mains voltage. Use heat-resistant, insulated wires, and never touch live parts during operation.
- Case and Knob: Ideally, install the controller in a non-metallic box with only the knob and power connections visible.
- Fuse Protection: Consider adding a small fuse for additional safety.
How the Electronic Control Works
This circuit uses “phase angle control,” similar to classic lamp dimmers. Instead of heating the iron continuously at full power, TRIAC rapidly switches the current on and off, providing average power that can be dialed up or down. The adjustable potentiometer controls how early or late in each AC cycle the TRIAC fires, setting tip temperature almost instantly.
The DIAC ensures the TRIAC fires sharply and only when intended. TRIACs handle substantial AC loads and keep the temperature stable without sensors—ideal for classic heating elements.
Comparison: Commercial Vs. DIY Controller
| Feature | Commercial Stations | DIY Controller |
|---|---|---|
| Price | High | Low |
| Sensor Feedback | Thermocouple/thermistor | None |
| Precision | High (digital setting) | Moderate (manual knob) |
| Complexity | Advanced | Simple |
| Adjustment | Preset/digital knob | Manual potentiometer |
| Repairs | Difficult/expensive | Easy |
| Suitability | Hobby/Pro workshops | DIY, learning, basic tasks |
Applications and Benefits
- Precision Work: Adjusting temperature lets you work with delicate components or thick leads equally well.
- Extended Soldering Sessions: Reduce tip oxidation by not running hot continuously.
- Energy Efficiency: Only the needed power is used, saving energy and prolonging tip life.
- DIY Upgrade: Add temperature control to existing soldering irons without buying new gear.
Common Troubleshooting Steps
- Iron Doesn’t Heat: Check fuse, connections, and TRIAC orientation.
- No Temperature Adjustment: Verify potentiometer wiring and DIAC polarity.
- Overheating or No Control: Replace the faulty TRIAC or check for shorted wires.
- Erratic Heating: Capacitor might be leaky, or the AC waveform isn’t being shaped properly.
Frequently Asked Questions
Q: Can this controller be used on any soldering iron?
A: Most plug-in types work, but always check your iron’s voltage and wattage ratings.
Q: Is this circuit suitable for sensitive electronics?
A: Yes—variable control lets you cool the tip for tiny or heat-sensitive parts.
Q: What maintenance is needed?
A: Occasionally, check connections and keep the controller box clean and dry.
Q: Why not use a ready-made station?
A: Cost, repairability, and learning. If you build your own, you understand and fix it anytime.
Conclusion
Building a soldering iron temperature controller is a rewarding electronics project. With simple parts—a resistor, potentiometer, DIAC, TRIAC, and a capacitor—you gain fine control that protects your electronics work, saves energy, and keeps your tools lasting longer. Always work safely with AC voltages, mount everything properly, and enjoy the control and precision this DIY upgrade brings.
