If you’re looking to power LEDs safely and efficiently, a simple LED driver circuit is a great starting point. LEDs are energy-efficient lighting solutions, but they require a stable current to function properly and avoid damage. In this guide, we’ll break down a straightforward LED driver circuit design, explain its components, and show you how it works. Whether you’re a hobbyist or a beginner in electronics, this tutorial will help you understand and build your own LED driver circuit.
What Is an LED Driver Circuit?
An LED driver circuit regulates the power supplied to an LED or a series of LEDs, ensuring they receive the correct voltage and current. LEDs are sensitive to voltage fluctuations, and without proper regulation, they can overheat or burn out. A driver circuit typically steps down the input voltage, rectifies AC to DC (if needed), and limits the current to protect the LEDs.
The circuit we’ll discuss today is a basic yet effective design that uses minimal components to drive a series of 5mm white LEDs from a 230V AC mains supply. Let’s dive into the details.
Components of the Simple LED Driver Circuit

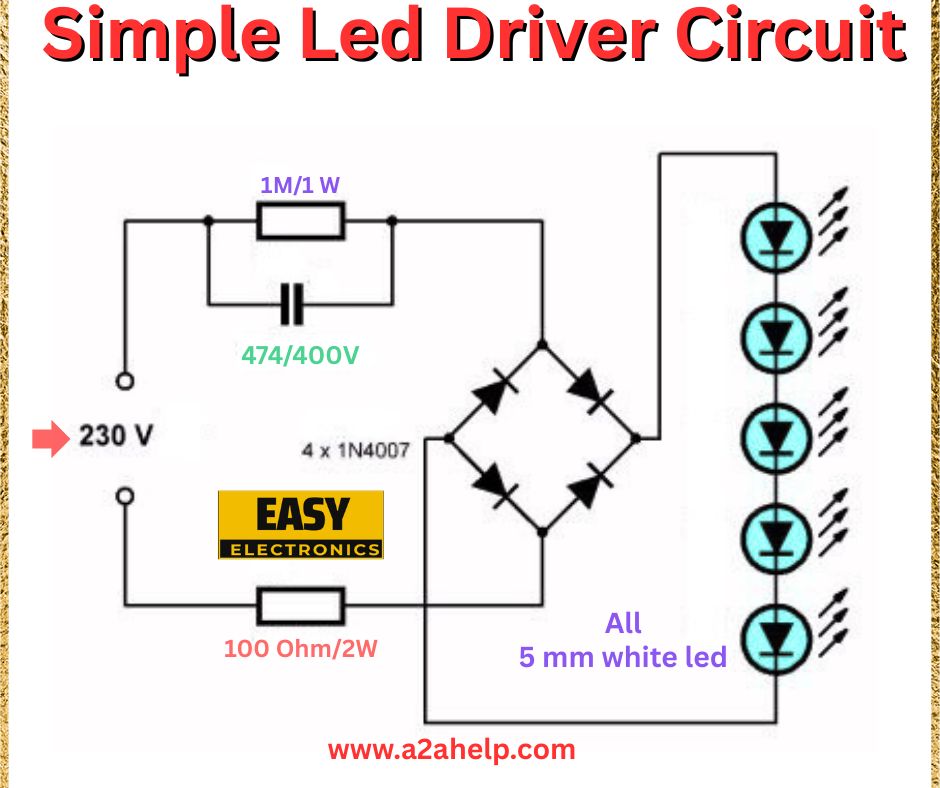

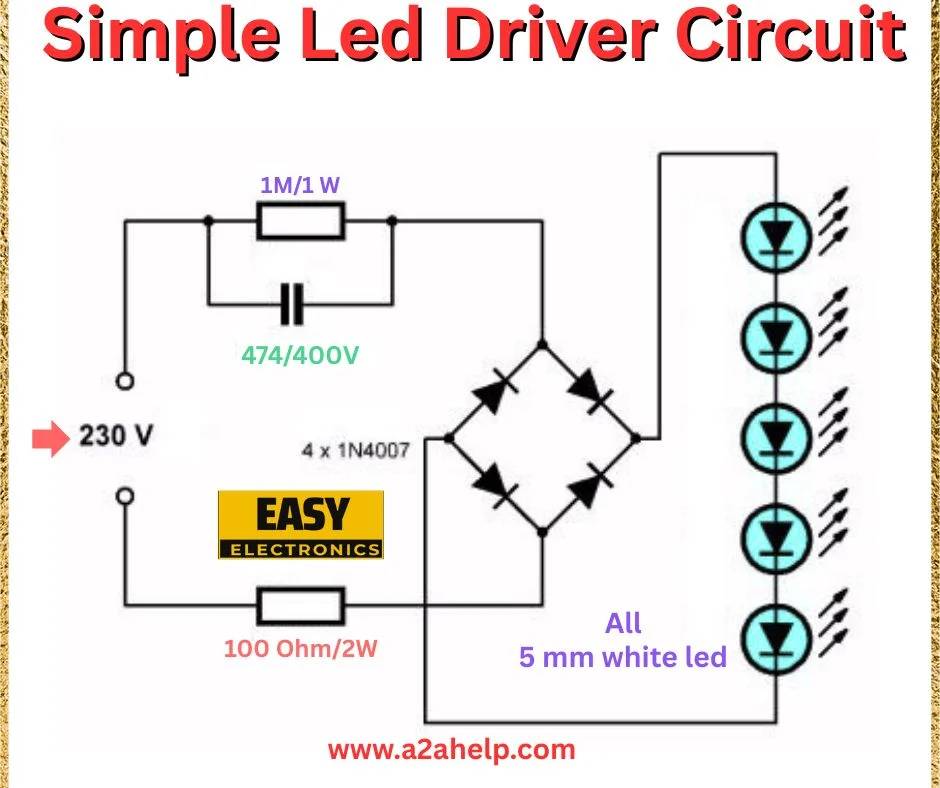

The circuit diagram we’re analyzing includes the following components:
- Input Voltage: 230V AC (common mains voltage in many countries).
- Capacitor (474/400V): A 0.47µF, 400V capacitor to limit the current.
- Resistor (1MΩ/1W): A 1MΩ resistor with a 1W rating to discharge the capacitor when the circuit is off.
- Resistor (100Ω/2W): A 100Ω resistor with a 2W rating to further limit the current to the LEDs.
- Diodes (4 x 1N4007): Four 1N4007 diodes arranged in a bridge rectifier configuration to convert AC to DC.
- LEDs: Five 5mm white LEDs connected in series.
These components work together to step down the mains voltage, convert it to DC, and provide a stable current to the LEDs.
How Does This LED Driver Circuit Work?
Let’s break down the operation of this circuit step by step:
- Current Limiting with the Capacitor: The 474/400V capacitor (0.47µF) acts as a reactive impedance to limit the current from the 230V AC supply. Capacitors in AC circuits provide a frequency-dependent resistance (called reactance), which reduces the current without dissipating power as heat, unlike a resistor. For a 50Hz mains frequency, the reactance of a 0.47µF capacitor is approximately 6.8kΩ, allowing a small current (around 30-40mA) to flow.
- Discharging the Capacitor: The 1MΩ/1W resistor is connected in parallel with the capacitor. When the circuit is switched off, this resistor safely discharges the capacitor, preventing any residual voltage that could cause a shock.
- Rectification with the Diode Bridge: The four 1N4007 diodes form a bridge rectifier, converting the AC voltage to pulsating DC. The 1N4007 diodes are rated for 1000V and 1A, making them suitable for handling the 230V AC input after the capacitor limits the current.
- Current Smoothing with the Resistor: After rectification, the 100Ω/2W resistor further limits the current to a safe level for the LEDs. This resistor also helps smooth out the pulsating DC, providing a more stable current.
- Powering the LEDs: The five 5mm white LEDs are connected in series. Each white LED typically has a forward voltage of about 3.2-3.6V, so five LEDs in series require around 16-18V. The rectified voltage after the bridge and resistor is sufficient to drive these LEDs while the current (limited to around 20-30mA) ensures they operate safely.
Why Use This Circuit?
This LED driver circuit is popular among hobbyists for several reasons:
- Simplicity: It uses minimal components, making it easy to build.
- Cost-Effective: The components are inexpensive and widely available.
- Efficiency: The capacitor-based current limiting avoids power loss compared to using a resistor alone.
- Compact Design: The circuit is small and can be used in tight spaces, such as LED lighting fixtures.
However, this circuit has limitations. It’s not isolated from the mains, so it poses a shock hazard if not handled properly. Always ensure the circuit is enclosed in an insulated housing and avoid touching it while powered.
How to Build This LED Driver Circuit
Here’s a quick guide to assembling this circuit:
- Gather Your Components: Source the capacitor, resistors, diodes, and LEDs as specified.
- Assemble the Bridge Rectifier: Connect the four 1N4007 diodes in a bridge configuration. Ensure the cathode (marked with a stripe) and anode are oriented correctly.
- Connect the Capacitor and Discharge Resistor: Solder the 0.47µF/400V capacitor in series with one of the AC inputs to the bridge rectifier. Solder the 1MΩ/1W resistor in parallel with the capacitor.
- Add the Current-Limiting Resistor: Connect the 100Ω/2W resistor in series with the positive output of the bridge rectifier.
- Wire the LEDs: Connect the five 5mm white LEDs in series, ensuring correct polarity (anode to cathode). Attach the LED string to the circuit, with the anode of the first LED to the 100Ω resistor and the cathode of the last LED to the negative output of the bridge rectifier.
- Test Safely: Double-check all connections, insulate the circuit, and test it with a 230V AC supply. If the LEDs don’t light up, check for loose connections or incorrect polarity.
Safety Considerations
- Mains Voltage Warning: This circuit operates directly on 230V AC, which can be dangerous. Always work with caution and insulate all exposed connections.
- Component Ratings: Ensure all components are rated for the voltage and power they’ll handle. For example, the capacitor must be rated for at least 400V to handle the peak voltage of 230V AC (around 325V).
- Heat Dissipation: The 100Ω/2W resistor may get warm during operation. Ensure it has enough space for heat dissipation.
Applications of This LED Driver Circuit
This simple LED driver circuit is ideal for small-scale lighting projects, such as:
- Decorative lighting for homes or events.
- Indicator lights in DIY electronics projects.
- Emergency lighting solutions with battery backup (if modified).
Conclusion
Building a simple LED driver circuit is a great way to learn about electronics while creating a practical lighting solution. This design, using a capacitor, bridge rectifier, and a few resistors, is an efficient and affordable way to power 5mm white LEDs from a 230V AC supply. However, always prioritize safety when working with mains voltage and consider using isolated drivers for commercial applications.
If you’re ready to experiment with LED lighting, try building this circuit and let us know how it works for you! For more electronics tutorials and project ideas, stay tuned to our blog.
