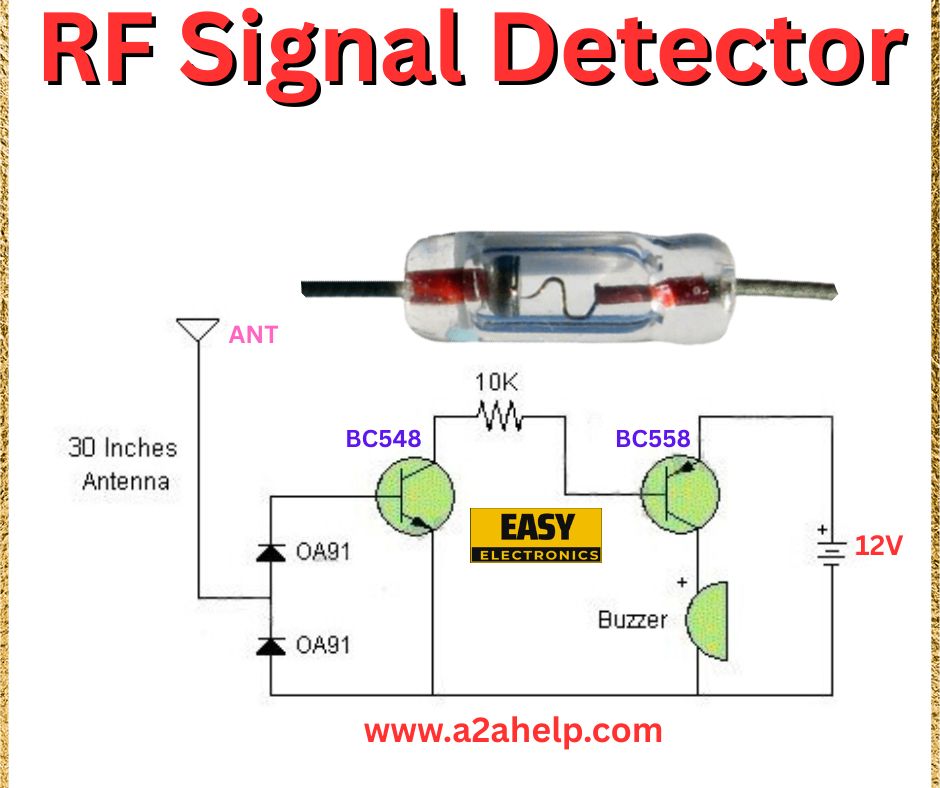

Ever wondered how you can detect radio frequency (RF) signals in your surroundings? Whether you’re a hobbyist, a student, or someone curious about RF signals, building an RF signal detector is a fun and educational project. In this guide, we’ll walk you through a simple RF signal detector circuit, as shown in the schematic, that uses basic components to detect RF signals and alert you with a buzzer. Let’s dive into how this circuit works and how you can build one yourself!
What Is an RF Signal Detector Circuit?
An RF signal detector is a device that can sense the presence of radio frequency signals in the environment. These signals could come from sources like mobile phones, Wi-Fi routers, or other wireless devices. The circuit shown in the image uses a simple design with a 30-inch antenna, diodes, transistors, and a buzzer to detect RF signals and provide an audible alert when a signal is detected.
Key Features of the Circuit
- Antenna: A 30-inch antenna to capture RF signals.
- Sensitivity: Detects a wide range of RF signals using a germanium diode (0A91).
- Alert System: A buzzer that sounds when an RF signal is detected.
- Power Supply: Operates on a 12V DC supply, making it portable.
Components Needed for the RF Signal Detector Circuit
To build this circuit, you’ll need the following components:
- Germanium Diodes: 0A91 (x2, for RF detection)
- Transistors: BC548 (NPN), BC558 (PNP)
- Resistor: 10KΩ
- Antenna: 30-inch wire (can be a stiff piece of wire or a telescopic antenna)
- Buzzer: 12V DC buzzer
- Power Supply: 12V DC (can use a battery or adapter)
- Wires and Soldering Kit: For assembling the circuit
These components are affordable and widely available at electronics stores or online.
How Does the RF Signal Detector Circuit Work?
Let’s break down the operation of this circuit step by step:
- Antenna and RF Detection:
- The 30-inch antenna captures RF signals from the environment.
- The two 0A91 germanium diodes are connected in a voltage doubler configuration. These diodes rectify the RF signal, converting it into a small DC voltage. Germanium diodes are used because they have a low forward voltage drop (around 0.3V), making them ideal for detecting weak RF signals.
- Signal Amplification:
- The rectified DC voltage from the diodes is applied to the base of the BC548 transistor (an NPN transistor).
- The 10KΩ resistor limits the current to the base of the BC548, ensuring stable operation.
- When an RF signal is detected, the small DC voltage turns on the BC548 transistor, allowing current to flow from the collector to the emitter.
- Switching the Buzzer:
- The collector of the BC548 is connected to the base of the BC558 transistor (a PNP transistor).
- When the BC548 turns on, it pulls the base of the BC558 low, turning on the BC558 transistor.
- The BC558 then allows current to flow from the 12V supply through the buzzer to ground, activating the buzzer and producing an audible alert.
- Power Supply:
- The entire circuit is powered by a 12V DC supply, which can be a battery for portability or a wall adapter.
Step-by-Step Guide to Build the RF Signal Detector Circuit
Step 1: Gather Your Components
Make sure you have all the components listed above. Double-check the diode type (0A91) and transistor types (BC548 and BC558) to avoid issues during assembly.
Step 2: Assemble the Circuit
- Start by attaching the 30-inch antenna to the circuit. This can be a stiff wire or a telescopic antenna.
- Connect the two 0A91 diodes in a voltage doubler configuration: one diode’s anode to the antenna and cathode to the base of the BC548, and the other diode’s cathode to the antenna and anode to ground.
- Add the 10KΩ resistor between the base of the BC548 and the junction of the diodes.
- Connect the emitter of the BC548 to ground and the collector to the base of the BC558.
- Connect the emitter of the BC558 to the 12V supply and the collector to one terminal of the buzzer.
- Connect the other terminal of the buzzer to ground.
- Finally, connect the 12V DC power supply to the circuit.
Step 3: Test the Circuit
Power on the circuit with the 12V supply. Bring an RF source (like a mobile phone making a call or a Wi-Fi router) close to the antenna. If the circuit is working correctly, the buzzer should sound when it detects an RF signal. Adjust the antenna length or position if the sensitivity is too low.
Step 4: Fine-Tune and Enclose
Once the circuit is working, you can mount it in a small enclosure with the antenna exposed and the buzzer audible. You can also add an on/off switch to the power supply for convenience.
Advantages of This RF Signal Detector Circuit
- Simplicity: Uses minimal components, making it easy to build for beginners.
- Portability: Operates on a 12V battery, so you can carry it anywhere.
- Cost-Effective: All components are inexpensive and easy to find.
- Educational: Great for learning about RF detection and basic transistor circuits.
Common Applications of the RF Signal Detector
This circuit can be used for:
- Detecting RF interference in electronics projects
- Finding hidden RF transmitters or bugs
- Educational purposes to learn about RF signals and detection
- Hobbyist projects involving wireless communication
Troubleshooting Tips
- Buzzer Doesn’t Sound: Check the power supply (ensure it’s 12V) and verify the connections, especially the diode polarity.
- Low Sensitivity: Extend the antenna length or move closer to the RF source. Ensure the diodes are germanium (0A91) as silicon diodes have a higher voltage drop and may not work as well.
- Buzzer Sounds Continuously: There might be a strong RF signal nearby (like a Wi-Fi router). Move to a different location or check for wiring errors.
Safety Tips
- Ensure proper polarity when connecting the 12V supply to avoid damaging the components.
- Be cautious when using the detector near sensitive electronic devices, as it may pick up unintended signals.
- If using a wall adapter for the 12V supply, ensure it’s properly rated to avoid voltage spikes.
Conclusion
Building an RF signal detector circuit is a rewarding project that combines simplicity with practical functionality. With just a few components, you can create a device that detects RF signals and alerts you with a buzzer, making it perfect for hobbyists and learners alike. Follow the steps in this guide, and you’ll have your own RF signal detector ready in no time. Ready to explore the world of radio frequencies? Grab your components and start building today!
