Are you looking to enhance your audio experience by adding bass and treble control to your sound system? A passive tone control circuit is a simple, cost-effective way to adjust the low (bass) and high (treble) frequencies of your audio signal without the need for active components like amplifiers. In this guide, we’ll analyze the passive tone control circuit shown in the schematic, explain how it works, and provide a step-by-step guide to building your own. Let’s get started!
What Is a Passive Tone Control Circuit?

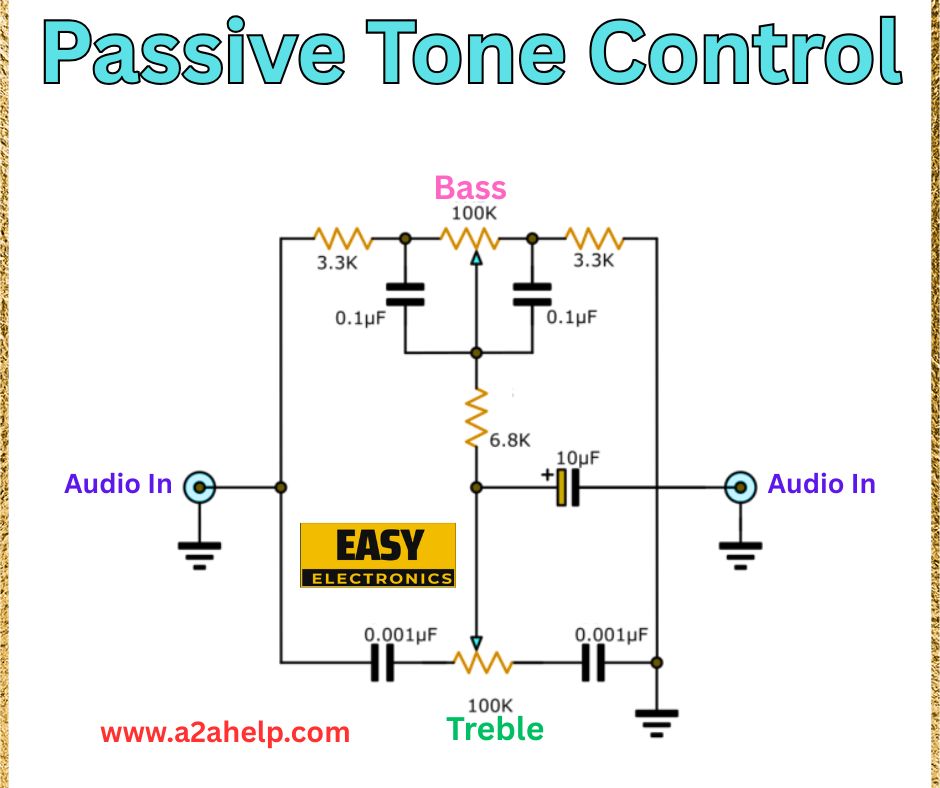

A passive tone control circuit allows you to adjust the bass and treble of an audio signal using only passive components like resistors, capacitors, and potentiometers. Unlike active tone control circuits, which require power and amplifiers, this circuit is entirely passive, making it simple to build and integrate into your audio setup. The schematic shown in the image uses a classic design to control bass and treble frequencies, making it perfect for DIY audio projects.
Key Features of the Circuit
- Bass Control: Adjusts low-frequency sounds using a 100K potentiometer.
- Treble Control: Adjusts high-frequency sounds using another 100K potentiometer.
- Passive Design: No external power supply needed, ideal for simple audio applications.
- Components: Uses readily available resistors, capacitors, and potentiometers.
Components Needed for the Passive Tone Control Circuit
Here’s a list of components you’ll need to build this circuit:
- Potentiometers (POT): 100K (x2, for bass and treble control)
- Resistors: 3.3K (x2), 6.8K
- Capacitors: 0.1µF (x2), 0.001µF (x2), 10µF
- Audio Input/Output Connectors: For connecting to your audio source and output device
- Wires and Soldering Kit: For assembling the circuit
These components are affordable and can be sourced from any electronics store or online retailer.
How Does the Passive Tone Control Circuit Work?
Let’s break down the operation of this circuit step by step:
- Audio Input: The circuit accepts a stereo audio input (left and right channels) through the “Audio In” terminals. The ground connections ensure proper signal referencing.
- Bass Control Section:
- The bass control is managed by the 100K potentiometer labeled “Bass.”
- The 0.1µF capacitors and 3.3K resistors form a low-pass filter, allowing low frequencies (bass) to pass through while attenuating higher frequencies.
- Adjusting the 100K potentiometer changes the amount of bass in the output signal. Turning it up boosts the bass, while turning it down reduces it.
- Treble Control Section:
- The treble control is handled by the 100K potentiometer labeled “Treble.”
- The 0.001µF capacitors form a high-pass filter, allowing high frequencies (treble) to pass through while attenuating lower frequencies.
- Adjusting the 100K potentiometer changes the treble level. Turning it up boosts the treble, while turning it down reduces it.
- Midrange and Signal Path:
- The 6.8K resistor and 10µF capacitor in the middle of the circuit help balance the midrange frequencies and couple the bass and treble sections.
- The circuit maintains the integrity of the audio signal while allowing frequency-specific adjustments.
- Audio Output: The adjusted audio signal is sent to the output, where it can be connected to speakers, headphones, or an amplifier for further amplification.
Step-by-Step Guide to Build the Passive Tone Control Circuit
Step 1: Gather Your Components
Ensure you have all the components listed above. Check their values to avoid mismatches, especially for the capacitors, as they directly affect the frequency response.
Step 2: Assemble the Circuit
- Start by connecting the audio input terminals (left and right channels) to the circuit.
- For each channel (left and right), connect a 0.1µF capacitor in series with a 3.3K resistor, followed by the 100K bass potentiometer.
- Connect the wiper of the bass potentiometer to the 6.8K resistor and 10µF capacitor, which form the midsection of the circuit.
- Add the treble section by connecting the 0.001µF capacitors in parallel with the 100K treble potentiometer.
- Connect the output of the treble potentiometer to the audio output terminals.
- Ground all necessary points as shown in the schematic to ensure proper signal flow.
Step 3: Test the Circuit
Connect an audio source (like a phone or MP3 player) to the input and a speaker or headphones to the output. Play some music and adjust the bass and treble potentiometers to hear the changes in sound. You should notice a clear difference in low and high frequencies as you turn the knobs.
Step 4: Fine-Tune and Mount
Once the circuit is working, you can mount it in a small enclosure with the potentiometers accessible for adjustment. Label the bass and treble knobs for easy operation.
Advantages of a Passive Tone Control Circuit
- Simplicity: No external power supply or active components needed, making it easy to build.
- Cost-Effective: Uses inexpensive components that are widely available.
- Compact Design: Can be integrated into small audio projects or portable setups.
- Customizable Sound: Allows you to tweak bass and treble to your liking without distortion.
Common Applications of the Passive Tone Control Circuit
This circuit is ideal for:
- DIY audio projects like portable speakers or headphone amps
- Vintage audio systems that lack built-in tone control
- Guitar preamp stages for basic tone shaping
- Home audio setups where simplicity is preferred
Troubleshooting Tips
- No Sound Output: Check the connections, especially the ground points, and ensure the audio input/output is properly connected.
- No Bass/Treble Adjustment: Verify the values of the capacitors (0.1µF for bass, 0.001µF for treble) and ensure the potentiometers are working.
- Distorted Sound: Ensure the audio signal isn’t too strong for the circuit; you may need to reduce the input volume or add a resistor in series with the input.
Conclusion
Building a passive tone control circuit is a fantastic way to personalize your audio experience without complicating your setup. With just a handful of components, you can add bass and treble control to your audio system, making your music sound exactly the way you want it. Follow the steps in this guide, and you’ll have a working tone control circuit in no time. Ready to enhance your sound? Grab your components and start building today!
