How to Build a Simple Battery Charger Circuit Using LM317: A Step-by-Step Guide

Are you looking for an easy and efficient way to charge your batteries at home? In this guide, we’ll walk you through a simple battery charger circuit using the LM317 voltage regulator. This DIY project is perfect for electronics enthusiasts who want a reliable, cost-effective solution for charging 12V lead-acid batteries, like the one shown in the circuit diagram. Let’s dive into the details of this circuit, how it works, and how you can build it yourself.

What Is the LM317 Battery Charger Circuit?

The LM317 battery charger circuit is a popular choice for hobbyists due to its simplicity and versatility. The LM317 is an adjustable voltage regulator that can be configured to provide a constant voltage or current, making it ideal for charging batteries. This circuit, as shown in the schematic, is designed to charge a 12V lead-acid battery safely by limiting the charging current and maintaining a stable output voltage.

Key Features of the Circuit

  • Input Voltage: 20V rectified DC
  • Output Voltage: Adjustable via a potentiometer (1K POT)
  • Current Limiting: Ensures the battery charges safely without overcurrent
  • Components: Uses minimal, easily available components like resistors, capacitors, and the LM317 IC

Components Needed for the Battery Charger Circuit

Before we get started, let’s list the components you’ll need to build this circuit:

  • LM317 Voltage Regulator IC
  • Capacitors: 1000µF (40V), 0.22µF (x2)
  • Resistors: 120Ω, 100Ω, 470Ω, 0.5Ω (5W for current limiting)
  • Potentiometer (POT): 1KΩ
  • Diode: 1N4007 (for reverse polarity protection)
  • 12V Lead-Acid Battery (like the one shown in the image)
  • Heat Sink for LM317 (to dissipate heat)
  • Power Supply: 20V rectified DC input

You can find these components at any electronics store or online marketplace.

How Does the LM317 Battery Charger Circuit Work?

Let’s break down the working of this circuit step by step:

  1. Input Stage: The circuit starts with a 20V rectified DC input, which is filtered by a 1000µF capacitor to smooth out any ripples in the supply voltage.
  2. Voltage Regulation with LM317: The LM317 IC is the heart of this circuit. It has three pins: input (pin 3), output (pin 2), and adjust (pin 1). The output voltage is set using the resistors (120Ω and 470Ω) and the 1K potentiometer. By adjusting the POT, you can fine-tune the charging voltage to match the battery’s requirements (typically 13.8V for a 12V lead-acid battery).
  3. Current Limiting: The 0.5Ω (5W) resistor acts as a current limiter, ensuring the charging current doesn’t exceed a safe value for the battery. For a 12V lead-acid battery, a charging current of around 1A is typical.
  4. Protection and Stability: The 0.22µF capacitors at the input and output of the LM317 improve stability and reduce noise. The 1N4007 diode (not shown in the schematic but recommended) can be added in series with the battery to prevent reverse current flow, protecting the circuit and the battery.
  5. Output to Battery: The regulated voltage and current are delivered to the battery terminals, ensuring a safe and controlled charging process.

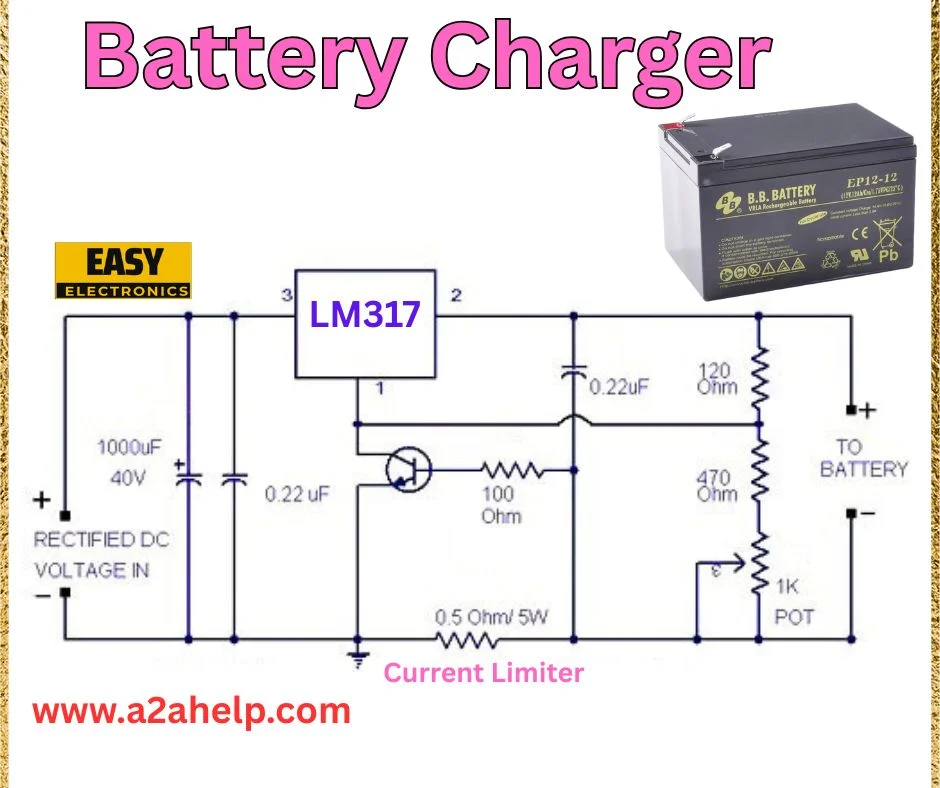

LM317 battery charger circuit

Step-by-Step Guide to Build the Battery Charger Circuit

Step 1: Gather Your Components

Make sure you have all the components listed above. Double-check their ratings, especially the voltage rating of the capacitors and the power rating of the 0.5Ω resistor.

Step 2: Assemble the Circuit

  • Start by connecting the 1000µF capacitor across the 20V rectified DC input to filter the supply.
  • Connect the input (pin 3) of the LM317 to the positive terminal of the filtered DC supply.
  • Place a 0.22µF capacitor between the input pin and ground for stability.
  • Connect the 120Ω resistor between the output (pin 2) and adjust (pin 1) pins of the LM317.
  • Attach the 1K potentiometer and 470Ω resistor in series between the adjust pin and ground to set the output voltage.
  • Add another 0.22µF capacitor between the output pin and ground.
  • Connect the 0.5Ω (5W) resistor in series with the output to limit the charging current.
  • Finally, connect the output to the battery terminals (positive to positive, negative to negative).

Step 3: Test the Circuit

Before connecting the battery, use a multimeter to measure the output voltage. Adjust the 1K potentiometer to set the output voltage to around 13.8V, which is ideal for charging a 12V lead-acid battery. Once the voltage is set, connect the battery and monitor the charging process.

Step 4: Add a Heat Sink

The LM317 can get hot during operation, especially when charging a large battery. Attach a heat sink to the LM317 to prevent overheating and ensure long-term reliability.

Safety Tips for Charging Batteries

  • Always double-check the polarity before connecting the battery to avoid damage.
  • Monitor the battery temperature during charging. If it gets too hot, disconnect it immediately.
  • Use a well-ventilated area, as lead-acid batteries can release gases during charging.
  • Do not leave the charger unattended for long periods.

Advantages of Using the LM317 for Battery Charging

  • Cost-Effective: The LM317 and other components are inexpensive and widely available.
  • Adjustable Output: You can easily adjust the charging voltage to suit different battery types.
  • Built-In Protection: The current-limiting feature prevents overcharging and extends battery life.
  • Simple Design: This circuit requires minimal components, making it beginner-friendly.

Common Applications of the LM317 Battery Charger

This circuit is ideal for charging 12V lead-acid batteries used in:

  • UPS systems
  • Solar power setups
  • Automotive applications
  • Emergency lighting systems

Troubleshooting Tips

  • No Output Voltage: Check the input voltage and ensure the LM317 is properly connected.
  • Battery Not Charging: Verify the output voltage (should be around 13.8V for a 12V battery) and ensure the current-limiting resistor isn’t too high.
  • LM317 Overheating: Add a heat sink or reduce the input voltage if possible.

Conclusion

Building a battery charger circuit using the LM317 is a straightforward and rewarding project for any electronics enthusiast. With just a few components, you can create a reliable charger for your 12V lead-acid battery, ensuring safe and efficient charging. Follow the steps in this guide, and you’ll have a functional charger in no time. Ready to get started? Grab your components and start building today!
