Are you looking to dive into the world of electronics and create your own FM transmitter? This simple yet effective “Easy FM Transmitter” circuit is perfect for beginners and hobbyists alike. In this article, we’ll walk you through the components, assembly process, and tips to ensure your FM transmitter works flawlessly. Let’s get started!
What is an FM Transmitter?
An FM transmitter is a low-power device that broadcasts audio signals over the FM radio frequency band. This particular circuit, designed with minimal components, allows you to transmit audio from a microphone to any FM radio within a short range. It’s an excellent project for learning about radio frequency (RF) circuits and audio modulation.
Components Required
To build this easy FM transmitter, you’ll need the following components:
- BC557 Transistor: A PNP transistor that amplifies the audio signal.
- 4.7kΩ Resistor: Limits the current to the microphone.
- 330Ω Resistor: Provides the appropriate bias for the transistor.
- 1n Capacitor: Couples the audio signal from the microphone.
- 33p Capacitor: Part of the oscillator circuit for frequency stability.
- 47p Capacitor: Filters the power supply to reduce noise.
- 22n Capacitor: Couples the RF signal to the antenna.
- Inductor (6 turns of 0.5mm wire on a 10mm former): Forms the tuned circuit for the FM frequency.
- Microphone (MIC): Captures the audio input.
- Antenna: A simple wire to transmit the signal.
- 3V Power Supply: Powers the circuit (e.g., two AA batteries).

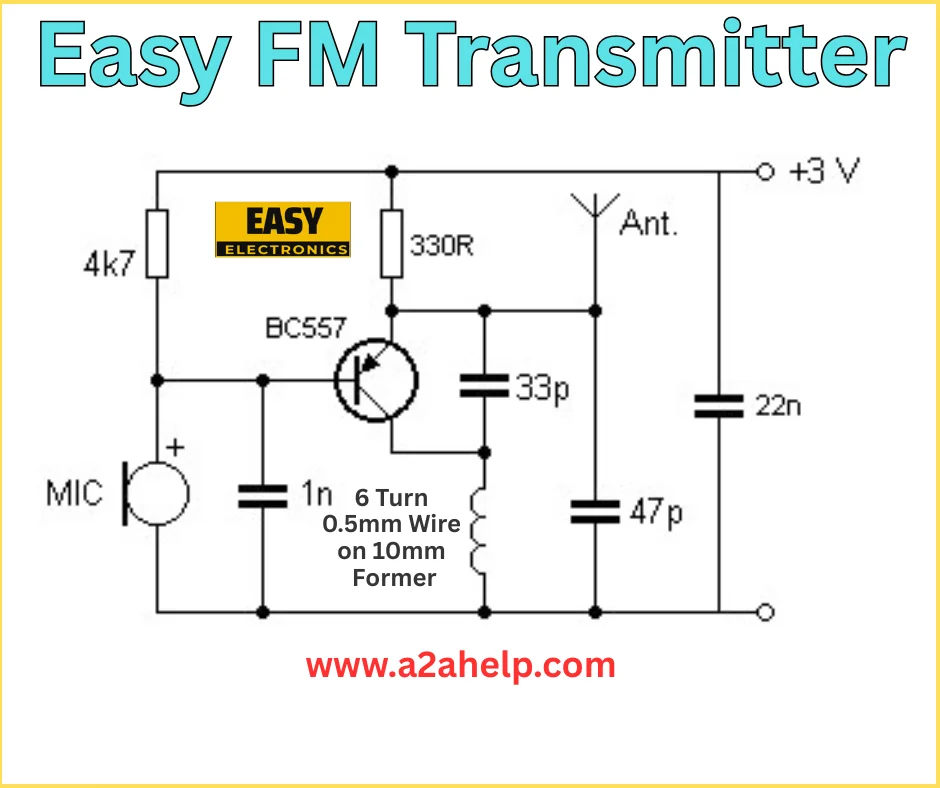

Circuit Diagram Analysis
The provided schematic is straightforward and easy to follow. Here’s a breakdown:
- The microphone picks up sound and sends it through the 4.7kΩ resistor and 1n capacitor to the base of the BC557 transistor.
- The inductor and 33p capacitor form a tuned LC circuit, which determines the transmission frequency.
- The 330Ω resistor and 47p capacitor stabilize the transistor and filter noise from the 3V supply.
- The 22n capacitor couples the modulated signal to the antenna for broadcasting.
Step-by-Step Assembly Guide
- Gather Your Tools: You’ll need a soldering iron, solder, wire cutters, and a breadboard or PCB.
- Place the Transistor: Insert the BC557 transistor into your circuit board, ensuring correct pin orientation (emitter, base, collector).
- Add Resistors and Capacitors: Solder the 4.7kΩ resistor, 330Ω resistor, 1n capacitor, 33p capacitor, 47p capacitor, and 22n capacitor according to the schematic.
- Wind the Inductor: Create the inductor by winding 6 turns of 0.5mm wire around a 10mm former. Connect it to the circuit.
- Connect the Microphone: Attach the microphone to the input side with the 4.7kΩ resistor.
- Attach the Antenna: Use a 20-30 cm wire as an antenna and connect it via the 22n capacitor.
- Power the Circuit: Connect a 3V power source (e.g., two AA batteries) to the designated terminals.
- Test the Circuit: Turn on an FM radio, tune it to an unused frequency, and speak into the microphone. You should hear the audio on the radio!
Tips for Success
- Frequency Adjustment: The transmission frequency can be fine-tuned by adjusting the inductor or capacitor values slightly.
- Range Limitation: This is a low-power transmitter, so the range will be limited to a few meters. Avoid using it for illegal broadcasting.
- Safety First: Ensure proper insulation of all connections to prevent short circuits.
Applications of an FM Transmitter
This easy FM transmitter can be used for:
- Personal audio broadcasting in a small room.
- Learning about RF and modulation techniques.
- DIY projects like wireless audio systems.
Troubleshooting Common Issues
- No Sound: Check the power supply and microphone connections.
- Weak Signal: Ensure the antenna is properly connected and extended.
- Interference: Adjust the frequency or move away from other electronic devices.
Conclusion
Building an easy FM transmitter is a rewarding project that combines fun with learning. With just a handful of components and this step-by-step guide, you can create your own broadcasting device. Visit www.a2ahelp.com for more electronics projects and tutorials. Happy building!
