If you’ve ever wanted to catch radio signals with nothing more than a handful of parts, then building a simple AM radio receiver is a great place to start. This project doesn’t even need a power supply – it works entirely by harvesting energy from the radio signal itself. That’s why it’s sometimes called a crystal radio.

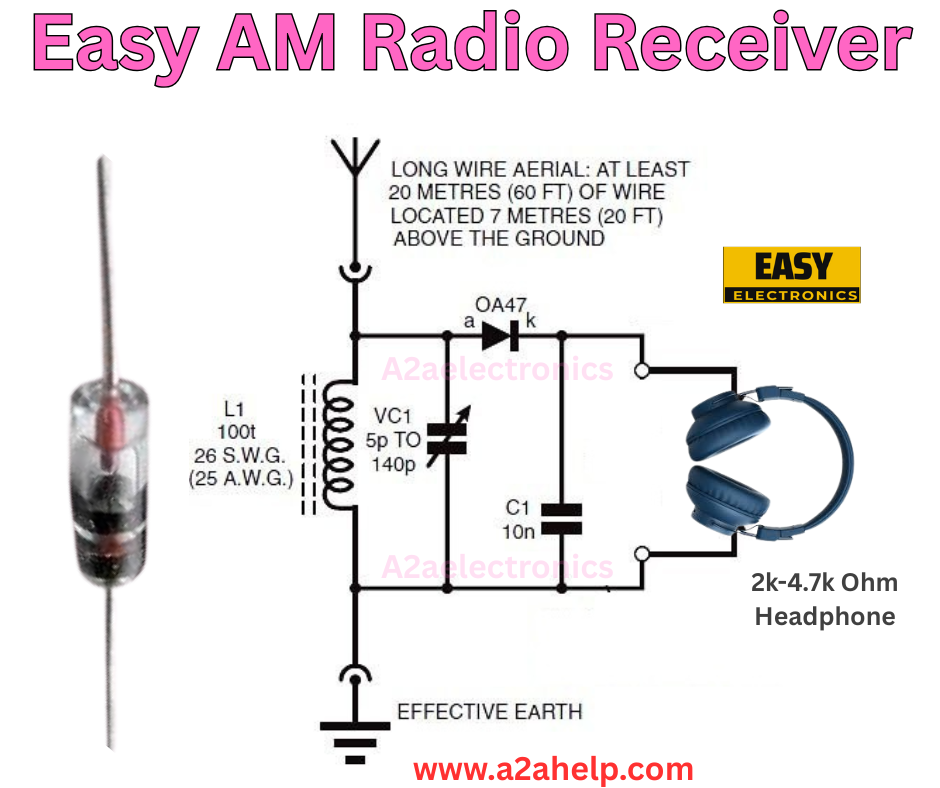

In this article, I’ll go through the schematic you see above, explain what each component does, and then show you how signals turn into sound in your headphones. You’ll also learn about antennas, coils, and why an old-school germanium diode (like the OA47) is perfect for this job.
Why Build an AM Radio Receiver?
AM receivers are simple, cheap, and educational. While modern radios are digital and packed inside integrated circuits, an AM radio made with a diode, a coil, and a capacitor takes you right back to the basics:
- You’ll see how electromagnetic waves in the air carry information.
- You’ll learn about resonance, tuning, and detection in a very hands-on way.
- You don’t even need a battery – the radio station provides the energy to move your headphone diaphragm.
There’s something magical about connecting a wire to the circuit, turning the tuning capacitor, and suddenly hearing a broadcast in your headphones.
The Circuit at a Glance
The schematic can look a little mysterious if you’ve never built one before, but it’s straightforward. Here are the main parts:
- Antenna: A long wire, at least 20 meters (60 feet) placed about 7 meters (20 feet) above ground.
- Coil (L1): 100 turns of enamelled copper wire wound on a ferrite rod or air core. This is part of the tuning circuit.
- Variable capacitor (VC1): Adjustable capacitor ranging from 5pF to 140pF, used to select the station you want to hear.
- OA47 germanium diode: Acts as a detector, also called a rectifier. Extracts audio information from the high-frequency radio signal.
- Bypass capacitor (C1, 10nF): Filters out the high-frequency carrier, leaving behind only the audio.
- Headphone (2kΩ – 4.7kΩ): Converts the tiny detected audio current into sound.
- Ground connection: An effective earth connection is needed to complete the circuit and give the best reception.
How Does It Work?
Let me walk you through how a radio wave floating in the air ends up as music in your headphones.
1. Capturing the Radio Wave
AM broadcast stations send electromagnetic waves at frequencies in the range of 540 kHz to 1600 kHz. Your long-wire antenna acts as a collector, picking up all these signals at once.
2. Selecting One Station
The coil L1 and variable capacitor VC1 form a resonant LC circuit. Think of it like a radio wave filter. By adjusting the capacitance, only one frequency resonates strongly, while the others die out. This is how you “tune” the radio.
So when you turn the knob on the capacitor, you’re changing the resonant frequency, and that lets you pick out one broadcast station from the air.
3. Detecting the Signal
Now, an AM radio wave isn’t just audio. It’s a high-frequency carrier wave that’s been modulated to carry the audio (Amplitude Modulation). The job of the diode (OA47) is to rectify that AM signal. That means it blocks one half of the waveform, leaving behind a signal that still “contains” the audio in its shape.
A germanium diode works better than a silicon diode here because it has a much lower forward voltage drop (about 0.2V instead of 0.6V). Since AM signals are weak, you want to preserve as much as possible.
4. Filtering Out the Carrier
Now the signal still has wiggles at hundreds of kilohertz, which your headphones can’t reproduce. That’s where the C1 capacitor (10nF) comes in. It filters out the high-frequency components, leaving only the slow variations from 20 Hz to 20 kHz – the audio that humans can hear.
5. Playing the Sound
Finally, the purified audio signal flows through your high-impedance headphones, moving the diaphragm back and forth. You’ll hear the broadcast exactly as it was sent by the station – music, speech, or talk radio.
Component Details
Antenna
The longer, the better. A 20m to 40m insulated copper wire strung between two poles or tied across your backyard works well. Keep it high and away from buildings for the best reception.
Coil
Wind 100 turns of 26 SWG enamelled copper wire around a ferrite rod or a cardboard tube. A ferrite rod improves selectivity, but even an air-core tube works.
Variable Capacitor
This is the main tuning knob. A 5pF to 140pF capacitor gives a good tuning range across the AM broadcast band.
Diode
The OA47 is a germanium diode. Alternatives include OA90, OA91, or 1N34. A silicon diode like 1N4148 will work, but not as well because of its higher threshold voltage.
Headphones
Ordinary modern stereo headphones won’t work because they are designed for low impedance. You need crystal earphones or high-impedance headphones (between 2kΩ to 4.7kΩ) so that the tiny current is enough to make sound.
Assembly Tips
- Start with a good baseboard or breadboard.
- Place the coil and tuning capacitor close together for short connections.
- Keep the antenna lead insulated and secure.
- Don’t skip the earth/ground connection – many times the radio won’t work without a solid ground. You can use a metal rod driven into moist earth, or your home’s grounding system.
Applications
This simple AM radio receiver may not compete with modern digital radios, but it has several real uses:
- Learning tool: Great for students to understand radio physics and electronics basics.
- Hobby project: Satisfying to build and experiment with antennas and coils.
- Emergency radio: Works without batteries, powered purely by radio energy.
- Science fair project: Simple to demonstrate the principle of electromagnetic energy harvesting.
Limitations
Before you get carried away, remember:
- It won’t drive loudspeakers – only headphones.
- Reception depends heavily on antenna length and grounding.
- Selectivity is limited – strong nearby stations may overpower weak ones.
Still, that’s part of the charm. You’re pulling voices and music out of thin air with just a wire, coil, and diode.
Improving the Circuit
Want to make it better?
- Add an amplifier stage using a single transistor to boost the audio volume.
- Use a longer antenna for stronger signals.
- Try different coils and capacitors to increase selectivity.
- Connect a supercapacitor across the output to smooth weak signals.
Conclusion
Building an AM crystal radio receiver is one of the most rewarding beginner projects in electronics. It beautifully demonstrates fundamental principles, requires no power source, and gives you a connection to the roots of radio technology.
All it takes is a coil, a variable capacitor, a diode, and a pair of headphones, plus a good antenna and earth connection. Once you hook it up and tune in your first station, you’ll feel the same joy early radio experimenters must have felt over a century ago.
If you’ve been looking for a practical, educational, and nostalgic electronics project, building this simple AM radio is a perfect choice.
