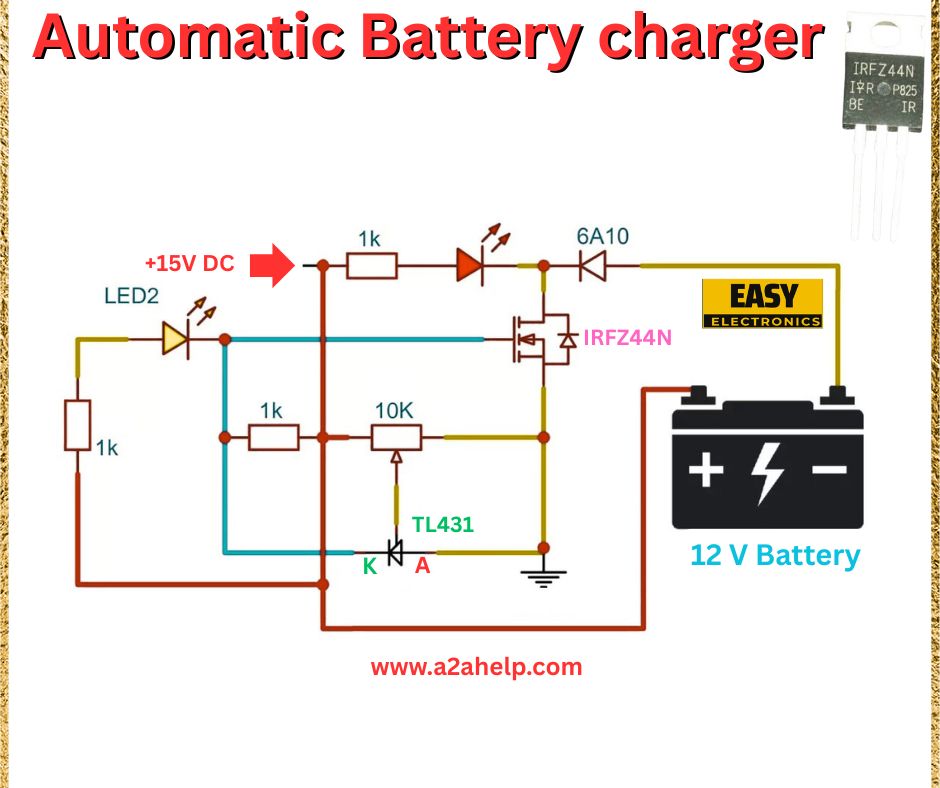

Are you looking for a reliable and efficient way to charge your 12V battery? An automatic battery charger circuit is a perfect solution for ensuring your battery stays charged without the risk of overcharging. In this article, we’ll break down a simple yet effective automatic battery charger circuit using the IRFZ44N MOSFET and TL431, as shown in the schematic below. Whether you’re a hobbyist or an electronics enthusiast, this step-by-step guide will help you understand the circuit, its components, and how to build it for your needs.
Understanding the Automatic Battery Charger Circuit
The circuit shown is designed to charge a 12V battery using a 15V DC input. It automatically stops charging once the battery reaches its full capacity, preventing damage due to overcharging. Let’s dive into the key components and their roles in this setup.
Key Components of the Circuit
- IRFZ44N MOSFET: Acts as a switch to control the charging current. This N-channel MOSFET is chosen for its low on-resistance and high current-handling capability.
- TL431 Voltage Reference: A precision shunt regulator that monitors the battery voltage and controls the MOSFET to stop charging when the battery is fully charged.
- 6A10 Diode: A high-current rectifier diode that prevents reverse current flow from the battery back to the circuit.
- Resistors (1kΩ, 10kΩ): Used for setting the reference voltage and controlling the current flow in the circuit.
- LED Indicators: LED2 indicates the power input, while another LED (not labeled) can be used to show the charging status.
- 12V Battery: The target battery to be charged, typically a lead-acid battery used in automotive or UPS systems.
How the Circuit Works
The automatic battery charger circuit operates on a simple principle: it monitors the battery voltage and regulates the charging process accordingly.
- Input Stage: A 15V DC supply is connected to the circuit, with the 6A10 diode ensuring current flows in the correct direction and protects the circuit from reverse polarity.
- Voltage Monitoring: The TL431, in combination with the 1kΩ and 10kΩ resistors, forms a voltage divider that senses the battery’s voltage. The TL431 compares this voltage to its internal 2.5V reference.
- Charging Control: When the battery voltage is below the set threshold (around 13.8V for a 12V lead-acid battery), the TL431 keeps the IRFZ44N MOSFET on, allowing current to flow to the battery. Once the battery voltage reaches the threshold, the TL431 turns off the MOSFET, stopping the charging process.
- Indicators: LED2 lights up to show the circuit is powered, providing a visual cue during operation.
This design ensures the battery is charged safely and efficiently, making it ideal for applications like automotive batteries, solar power systems, or backup power solutions.
Why Use an Automatic Battery Charger?
Manual battery charging can lead to overcharging, which reduces battery lifespan and can even cause damage. An automatic charger eliminates this risk by cutting off the power once the battery is full. Here are some benefits of this circuit:
- Protection: Prevents overcharging, extending battery life.
- Efficiency: Charges the battery only when needed, saving energy.
- Simplicity: Uses minimal components, making it cost-effective and easy to build.
- Versatility: Can be adapted for different battery types with minor adjustments.
Step-by-Step Guide to Build the Circuit
Ready to build your own automatic battery charger? Follow these steps to assemble the circuit.
Materials Needed
- IRFZ44N MOSFET
- TL431 voltage regulator
- 6A10 diode
- Resistors: 1kΩ (2 units), 10kΩ (1 unit)
- LEDs (for power and charging indication)
- 15V DC power supply
- 12V lead-acid battery
- Breadboard or PCB for assembly
- Wires, soldering iron, and basic tools
Assembly Instructions
- Set Up the Power Supply: Connect the 15V DC supply to the circuit. Ensure the polarity is correct—positive to the anode of the 6A10 diode and negative to the ground.
- Add the Diode and LED: Place the 6A10 diode in series with the positive input. Connect LED2 with a 1kΩ resistor in parallel to indicate power.
- Wire the MOSFET: Connect the IRFZ44N MOSFET as shown in the schematic. The drain connects to the battery’s positive terminal, the source to ground, and the gate to the TL431 output.
- Configure the TL431: Set up the TL431 with the 1kΩ and 10kΩ resistors to form a voltage divider. The resistors determine the cutoff voltage (adjust them for your battery’s full charge voltage, typically 13.8V for a 12V lead-acid battery).
- Connect the Battery: Attach the 12V battery to the circuit, ensuring proper polarity.
- Test the Circuit: Power on the circuit and monitor the charging process. The LED should indicate when charging starts, and the circuit should stop charging once the battery is full.
Tips for Optimizing the Circuit
- Adjust the Cutoff Voltage: If you’re charging a different type of battery (e.g., lithium-ion), adjust the resistor values to change the cutoff voltage. For example, lithium-ion batteries typically require a 4.2V cutoff per cell.
- Add a Heat Sink: The IRFZ44N MOSFET may heat up during operation. Attach a small heat sink to prevent overheating.
- Use a Fuse: For safety, add a fuse between the power supply and the circuit to protect against short circuits.
- Monitor Temperature: If the battery gets too hot while charging, consider adding a temperature sensor to pause charging.
Common Applications of This Circuit
This automatic battery charger circuit is versatile and can be used in various scenarios:
- Automotive: Keep car or motorcycle batteries charged without manual intervention.
- Solar Systems: Pair with a solar panel (via a 15V regulator) to charge batteries in off-grid setups.
- UPS Systems: Maintain backup batteries for uninterrupted power supplies.
- DIY Projects: Ideal for hobbyists building portable power solutions.
Troubleshooting Common Issues
- Battery Not Charging: Check the power supply voltage (it should be higher than the battery voltage, e.g., 15V for a 12V battery). Ensure all connections are secure.
- LED Not Lighting Up: Verify the LED polarity and test the 1kΩ resistor.
- Overheating: If the MOSFET or diode overheats, reduce the charging current by adding a current-limiting resistor or using a heat sink.
- Charging Doesn’t Stop: Recalibrate the TL431 resistor values to ensure the cutoff voltage matches your battery’s specifications.
Conclusion
Building an automatic battery charger circuit for a 12V battery is a rewarding project that combines simplicity with functionality. Using components like the IRFZ44N MOSFET and TL431, you can create a reliable charger that protects your battery and ensures it’s always ready for use. Whether you’re powering a car, a solar setup, or a backup system, this circuit is a great addition to your electronics toolkit.
Ready to get started? Gather your components, follow the steps above, and enjoy the benefits of an efficient, automatic charging solution. If you have any questions or need further assistance, feel free to leave a comment below!
