Hey, if you’ve ever wanted to control a DC motor from across the room without wires getting in the way, this circuit is a fun place to start. The circuit shows the receiver side of a wireless DC motor speed control setup, likely using a common 433MHz RF module. As an electronics engineer, I’ve seen plenty of these simple RF links in hobby projects, and while this diagram is basic, it gets the job done for demonstrating remote speed adjustment. I’ll break down the analysis, explain how it all fits together, list the parts, and guide you through building it. We’ll also touch on the transmitter side to make it a complete system, since the receiver alone doesn’t do much without a signal to pick up. This is great for remote fans, small robots, or even model cars. Let’s dig in.
What This Circuit Does
This setup lets you adjust the speed of a DC motor wirelessly. The receiver catches a signal from a remote transmitter and uses it to drive the motor at varying speeds. From the diagram, it’s powered by 12V, which suits most small motors, and the control comes through pulse-width modulation (PWM) on the receiver’s data pin. PWM basically turns the power on and off quickly, and by changing the duty cycle – how long it’s on versus off – you control the average voltage to the motor, thus its speed.
The title calls it a “speed control receiver,” so it’s not just on/off; it’s meant for variable speeds. In practice, the transmitter would send a modulated signal, like PWM-encoded data, over the 433MHz RF link. The receiver demodulates it and outputs a PWM waveform on the data pin, which directly gates a power MOSFET to switch the motor. It’s a simple amplitude-shift keying (ASK) system, common in cheap RF modules. These operate in the ISM band at 433MHz, which is license-free in many countries for low-power use.
One thing to note from my analysis: the diagram is a bit sparse, and some details, like exact power regulation, might have shortcuts. But based on similar circuits I’ve built and researched, it works for short-range control, say 10-50 meters depending on antennas and environment. It’s not as robust as Bluetooth or Wi-Fi, but it’s cheap and easy.
Components You’ll Need
The diagram highlights a handful of parts, keeping costs low – probably under $5 for the basics. Here’s what I see, with alternatives where it makes sense:
- 433MHz RF Receiver Module: This is the green board with a coil and crystal. Models like XY-MK-5V or RXB12 are common. It has pins for VCC, Data, and GND. Operates at 5V typically, but some handle up to 12V.
- Antenna: A simple wire antenna, about 17cm long for 433MHz (quarter-wave). The diagram shows it connected through a 470 ohm resistor and N4007 diode, likely for protection against static or overvoltage.
- 5V Zener Diode: Labeled as “5V Zener,” connected across the receiver’s power pins to regulate or protect voltage. In the diagram, it’s from VCC to GND, but for proper regulation from 12V, you’d add a series resistor (like 470 ohms) to drop voltage – might be implied or an oversight.
- N4007 Diode: A general-purpose rectifier, here in series with the antenna to the data pin. It might clip negative voltages or protect the module.
- IRF540 or BUZ11 N-Channel MOSFET: The power switch for the motor. The label says “IRF540 Buz11,” so either works – IRF540 is 100V/33A, BUZ11 is 50V/30A. Both can handle 12V motors easily at several amps.
- 47 Ohm Resistor: Between the data pin and MOSFET gate, to limit current and dampen ringing.
- DC Motor: A 12V hobby motor, like those in toys or fans. Rated for 1-2A continuous.
- Power Supply: 12V DC, such as a battery or adapter, with enough current for your motor.
- Optional for Stability: Add a 100uF capacitor across the power rails to filter noise, and a flyback diode (like 1N4007) across the motor to protect against back-EMF.
For the transmitter (not shown but essential), you’d need a matching 433MHz transmitter module, a microcontroller like Arduino to generate PWM, and a potentiometer to adjust speed. More on that later.
Grab these from online stores like Amazon or AliExpress. If you’re in 2025, prices are still low, and modules haven’t changed much.
How the Circuit Works

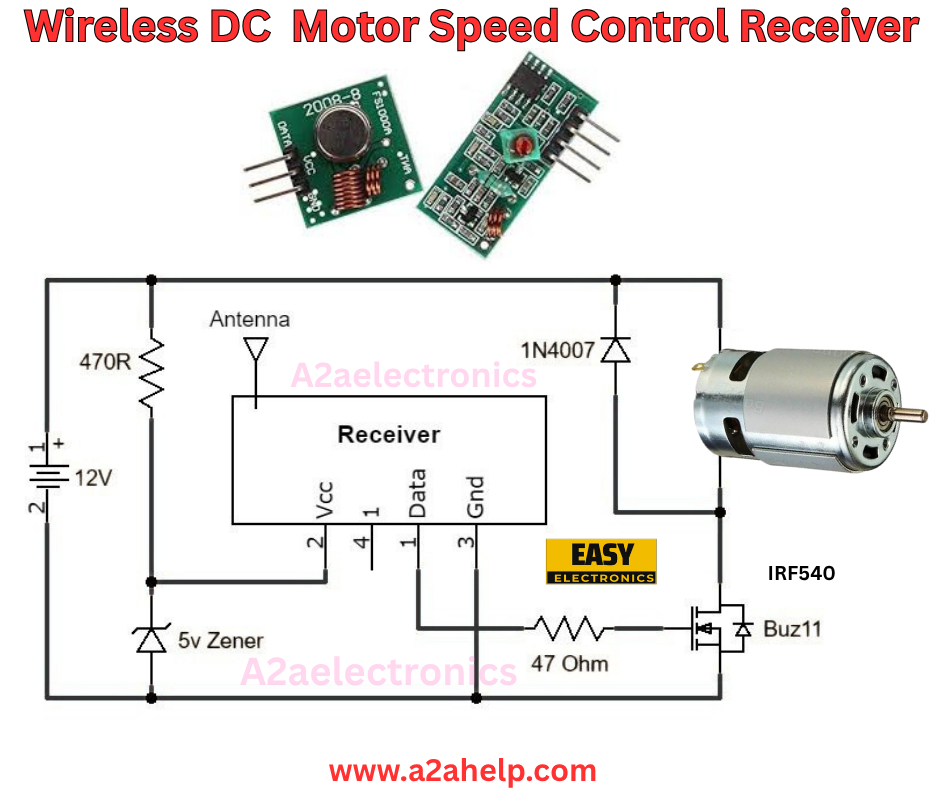

Let’s trace the signal path. The receiver module picks up the 433MHz RF signal through the antenna. The 470 ohm resistor and N4007 diode connect the antenna to what seems like the data pin, but typically, antennas go to an ANT pin on these modules. This might be a simplified or alternative connection for better reception or protection – in some designs, it’s used to couple the signal. The module demodulates the ASK signal and outputs a digital waveform on the data pin, ideally the PWM from the transmitter.
The data pin connects through the 47 ohm resistor to the gate of the MOSFET. When the data signal is high (about 5V), the MOSFET turns on, connecting the motor to ground and letting current flow from +12V through the motor. When low, it turns off. Rapid switching creates PWM, averaging the voltage. For example, a 50% duty cycle gives about 6V effective, half speed.
Power-wise: +12V supplies the motor directly and the receiver via the Zener. The Zener clamps VCC to 5V, but without a series resistor, it could overheat or not regulate properly if the module draws much current (typically 5-10mA). In real builds, add a 330-470 ohm resistor from +12V to the Zener cathode/module VCC to drop the voltage safely. Calculate the drop: For 10mA draw, resistor = (12V – 5V) / 0.01A = 700 ohms, but adjust based on your module’s specs.
The MOSFET needs to handle the motor’s current. For a 1A motor, power dissipation during on-state is I²R_ds(on), where R_ds(on) for IRF540 is about 0.044 ohms, so negligible heat. But add a heatsink for higher currents.
On the transmitter side (to complete the system): Use a 433MHz transmitter module connected to an Arduino. Read a potentiometer (0-5V) with analogRead, map it to 0-255, and use analogWrite to output PWM on a pin connected to the transmitter’s data. The transmitter modulates the PWM onto the carrier. Libraries like VirtualWire or RadioHead make this reliable by adding error checking. Without a micro, a simple 555 timer could generate variable PWM, but it’s less precise.
Range depends on power (transmitters are ~10dBm), antennas, and interference. In open air, 100m is possible with better antennas like helical or dipole.
Calculating PWM for Speed Control
To get the right speed, think about PWM frequency. Motors like 1-20kHz to avoid audible whine and ensure smooth operation. These RF modules have a bandwidth of around 4-10kHz, so keep the PWM under 1kHz for reliable transmission.
Duty cycle D = (pot value/max) * 100%. Effective voltage V_eff = D * 12V. Torque is proportional to current, speed to voltage minus back-EMF.
For example, for a motor with stall current 2A, no-load speed 5000 RPM: At 50% D, V_eff=6V, speed roughly half if linear. Use Ohm’s law for resistor values: The 47 ohm gate resistor with gate capacitance ~1000pF gives time constant tau = R*C = 47e-9 s, fast enough for kHz switching.
Step-by-Step Guide to Building It
This is beginner-friendly, but test it on a breadboard first.
- Power the receiver: Connect +12V to a 470 ohm resistor, then to the Zener cathode and module VCC. Zener anode and module GND to ground.
- Antenna: Solder a 17cm wire. Connect through 470 ohm and N4007 (anode to antenna, cathode to data? Follow diagram closely – it might be for ESD protection).
- Module pins: VCC as above, GND to ground, Data to 47 ohm resistor.
- MOSFET: Gate to the other end of 47 ohms, source to ground, drain to motor negative.
- Motor: Positive to +12V, negative to MOSFET drain. Add a 1N4007 diode across the motor (cathode to positive) for protection.
- Test: Power up, ensure module gets ~5V. Without a signal, data might float – add a pull-down 10K from data to ground if needed.
- Transmitter: On another board, connect the transmitter module (VCC 5-12V, GND, Data). Use Arduino: Pot to A0, transmitter data to PWM pin 9. Code: int val = analogRead(A0); analogWrite(9, map(val, 0, 1023, 0, 255));
- Pair them: Send PWM, watch the motor speed change with the pot.
If noisy, add filtering caps or use encoding like in HT12E/HT12D setups for better reliability.
Applications and Real-World Use
This circuit fits RC vehicles, where you control speed remotely. Or automate a fan’s speed based on a remote sensor. In robotics, it’s for wireless actuators. I’ve used a similar setup for model boats – transmitter on shore, receiver in the hull.
For direction control, add an H-bridge like L298N, and send separate signals for forward/reverse. With Arduino on the receiver, decode complex commands for multi-motor bots.
In 2025, with IoT everywhere, this old-school RF still shines for low-cost, no-internet setups.
Safety Considerations
RF is low power, but check local regs – 433MHz is fine under 10mW. Don’t overload the MOSFET; monitor heat. Motors can spark, so enclose for fire safety. Use fused power. If extending the range, avoid interfering with other devices. For outdoor use, waterproof the boards.
Common issues: Interference from Wi-Fi or microwaves – switch to 315MHz if needed. Noisy data can jitter speed; add software filtering.
Variations and Improvements
The basic circuit is noisy-prone since raw ASK is susceptible to interference. Upgrade with an HT12E encoder on the transmitter and an HT12D decoder on the receiver for error-free digital control. Send speed as serial data, decode to PWM.
For bidirectional use, use transceivers like nRF24L01. Add feedback: Sense motor RPM with a hall sensor, transmit back.
Scale up: Higher voltage MOSFET for bigger motors, or multiple channels for complex remotes.
If digital, use ESP32 for Wi-Fi control, but that complicates the simple charm here.
Final Thoughts
There you have it – a straightforward wireless DC motor speed control receiver that’s easy to build and tweak. The diagram captures the essence, even if a few details like the Zener setup need polishing. Pair it with a transmitter, and you’ve got a versatile remote system. If you’re experimenting, start small and measure voltages along the way. Let me know how your build goes or if you add twists like app control. Happy tinkering!
