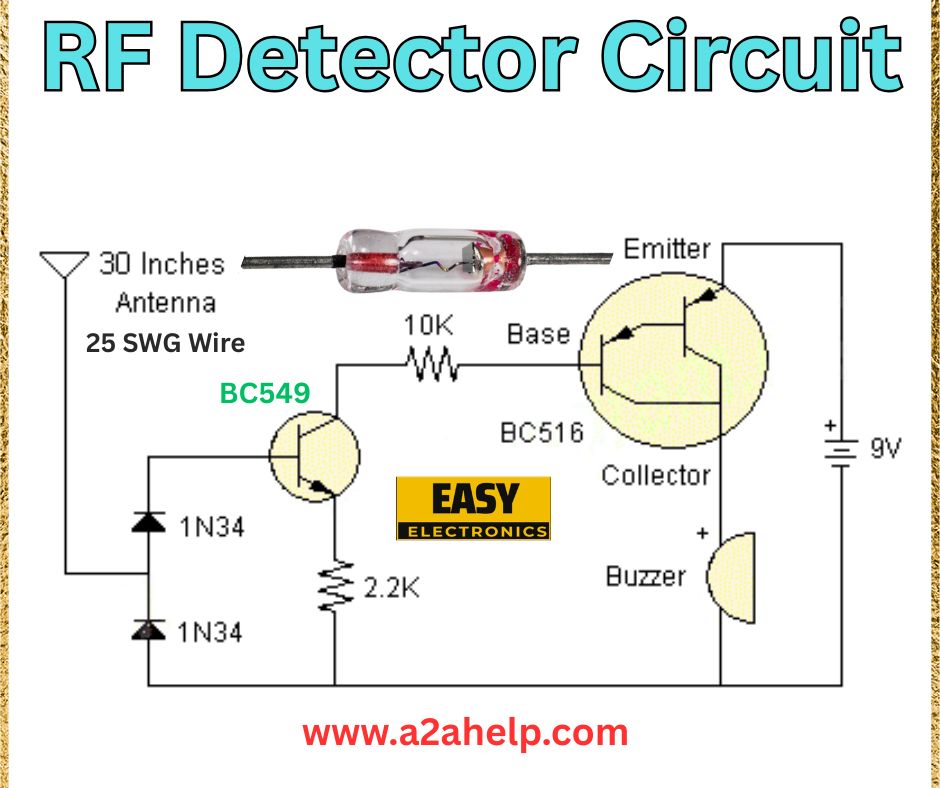

Are you curious about detecting radio frequency (RF) signals in your environment? An RF detector circuit is a handy tool for identifying the presence of RF signals, often used for troubleshooting wireless devices, finding hidden transmitters, or even as a fun electronics project. In this article, we’ll explore a simple RF detector circuit using the BC549 and BC516 transistors, as shown in the schematic below. Perfect for beginners and hobbyists, this guide will walk you through the circuit’s components, how it works, and how to build it step by step.
Understanding the RF Detector Circuit
This RF detector circuit is a basic design that senses RF signals and activates a buzzer to alert you of their presence. It uses a minimal set of components to detect signals picked up by a simple antenna, making it an excellent project for learning about RF circuits. Let’s break down the key components and their roles.
Key Components of the Circuit
- 30-Inch Antenna (25 SWG Wire): A simple wire antenna that captures RF signals from the environment.
- 1N34 Diodes (2 units): Germanium diodes that rectify the RF signal into a DC voltage that can be processed by the circuit.
- BC549 Transistor: An NPN transistor that amplifies the rectified signal to drive the next stage.
- BC516 Transistor: A PNP Darlington transistor that switches on the buzzer when an RF signal is detected.
- Resistors (10kΩ, 2.2kΩ): Bias the transistors and control the current flow in the circuit.
- Buzzer: Produces an audible sound when RF signals are detected.
- 9V Power Supply: Powers the circuit, typically from a battery.
How the RF Detector Circuit Works
This circuit detects RF signals by converting them into a usable electrical signal that triggers a buzzer. Here’s how it operates:
- Signal Reception: The 30-inch antenna made of 25 SWG wire picks up RF signals from the environment. The antenna’s length is tuned to capture a wide range of frequencies, typically in the RF spectrum (e.g., 1 MHz to 1 GHz).
- Rectification: Two 1N34 diodes are connected in a voltage doubler configuration to rectify the RF signal into a small DC voltage. The diodes are chosen for their low forward voltage drop, making them ideal for weak RF signals.
- Amplification: The rectified DC voltage is applied to the base of the BC549 NPN transistor through a 10kΩ resistor. The BC549 amplifies this small signal, producing a larger voltage at its collector.
- Switching: The amplified signal from the BC549 is fed to the base of the BC516 PNP Darlington transistor through a 2.2kΩ resistor. The BC516, with its high current gain, switches on the buzzer when the signal is strong enough.
- Output: The buzzer sounds to indicate the presence of an RF signal, providing an audible alert.
This circuit is simple but effective for detecting nearby RF sources, such as Wi-Fi routers, cell phones, or radio transmitters.
Why Build an RF Detector Circuit?
Building an RF detector circuit is a great project for several reasons:
- Practical Use: Detect RF signals in your environment, useful for troubleshooting or security applications.
- Educational: Learn about RF signal detection, rectification, and transistor amplification.
- Affordable: Uses inexpensive components that are easy to find.
- Customizable: Can be modified to increase sensitivity or add features like an LED indicator.
Step-by-Step Guide to Build the Circuit
Ready to build your own RF detector? Follow these steps to assemble the circuit and start detecting RF signals.
Materials Needed
- 30-inch antenna (25 SWG wire)
- 1N34 germanium diodes (2 units)
- BC549 NPN transistor
- BC516 PNP Darlington transistor
- Resistors: 10kΩ, 2.2kΩ
- Buzzer
- 9V battery or power supply
- Breadboard or PCB for assembly
- Wires, soldering iron, and basic tools
Assembly Instructions
- Prepare the Antenna: Cut a 30-inch piece of 25 SWG wire to use as the antenna. Attach one end to the circuit as shown in the schematic.
- Add the Diodes: Connect the two 1N34 diodes in a voltage doubler configuration. The anode of the first diode connects to the antenna, the cathode to the anode of the second diode, and the cathode of the second diode to the base of the BC549 transistor. Ground the junction between the diodes.
- Set Up the BC549 Transistor: Place the BC549 transistor on the breadboard. Connect the 10kΩ resistor between the base and the diode output. The emitter of the BC549 goes to ground, and the collector connects to the next stage.
- Add the BC516 Transistor: Place the BC516 Darlington transistor on the breadboard. Connect the collector of the BC549 to the base of the BC516 through a 2.2kΩ resistor. The emitter of the BC516 connects to the 9V supply, and the collector connects to the positive terminal of the buzzer.
- Connect the Buzzer: Attach the negative terminal of the buzzer to ground.
- Power the Circuit: Connect the 9V power supply, ensuring proper polarity. Double-check all connections before powering on.
- Test the Circuit: Turn on the circuit and bring an RF source (e.g., a cell phone or Wi-Fi router) near the antenna. The buzzer should sound when RF signals are detected.
Tips for Optimizing the Circuit
- Adjust Antenna Length: The 30-inch antenna is a general length. For specific frequency bands, adjust the length (e.g., shorter for higher frequencies like 2.4 GHz Wi-Fi).
- Increase Sensitivity: Add a small capacitor (e.g., 10pF) in parallel with the diodes to improve signal pickup for weaker RF sources.
- Add an LED Indicator: Place an LED in parallel with the buzzer (with a current-limiting resistor) for a visual indication of RF detection.
- Shield the Circuit: To reduce noise, place the circuit in a metal enclosure, leaving the antenna exposed.
Common Applications of This Circuit
This RF detector circuit is versatile and can be used in various scenarios:
- Security: Detect hidden RF transmitters or bugs in a room.
- Troubleshooting: Identify RF interference sources affecting your devices.
- Educational Projects: Teach students about RF signals and transistor circuits.
- Hobbyist Fun: A great project for experimenting with RF detection.
Troubleshooting Common Issues
- Buzzer Doesn’t Sound: Check the power supply voltage (should be 9V). Ensure the diodes are oriented correctly, as 1N34 diodes are polarity-sensitive.
- False Triggers: If the buzzer sounds without an RF source, there may be noise in the circuit. Add a small capacitor (e.g., 1nF) across the base-emitter of the BC549 to filter noise.
- Low Sensitivity: Ensure the antenna is properly connected and not obstructed. Test with a strong RF source, like a cell phone in active use.
- Buzzer Too Quiet: Replace the buzzer with a more sensitive model or increase the supply voltage slightly (but stay within the transistor’s limits).
Conclusion
Building a simple RF detector circuit using the BC549 and BC516 transistors is a rewarding project that opens the door to understanding RF signals. With just a few components, you can create a functional detector to sense nearby RF sources, whether for practical use or educational purposes. This circuit is a great starting point for beginners looking to explore RF electronics while having fun with a hands-on project.
