If you’re an electronics hobbyist looking to create a fun and engaging project, a bird voice generator circuit is a fantastic choice. This simple circuit mimics the chirping sound of birds using basic electronic components, making it a great learning tool for beginners and a delightful addition to toys or garden decorations. In this article, we’ll break down the design of a bird voice generator circuit, explain how it works, and guide you through building one yourself. Let’s dive in!
What is a Bird Voice Generator Circuit?
A bird voice generator circuit is a small electronic setup that produces a sound resembling the chirping of birds. It uses a combination of transistors, resistors, capacitors, and a transformer to create an oscillating signal, which is then amplified through a speaker to mimic bird sounds. This circuit is compact, affordable, and easy to assemble, making it a popular choice for DIY electronics projects.
The circuit we’ll analyze today is a classic design that uses a BC548 transistor, a transformer, and an 8Ω speaker, powered by a 9V battery. Let’s explore its components and functionality in detail.
Understanding the Bird Voice Generator Circuit

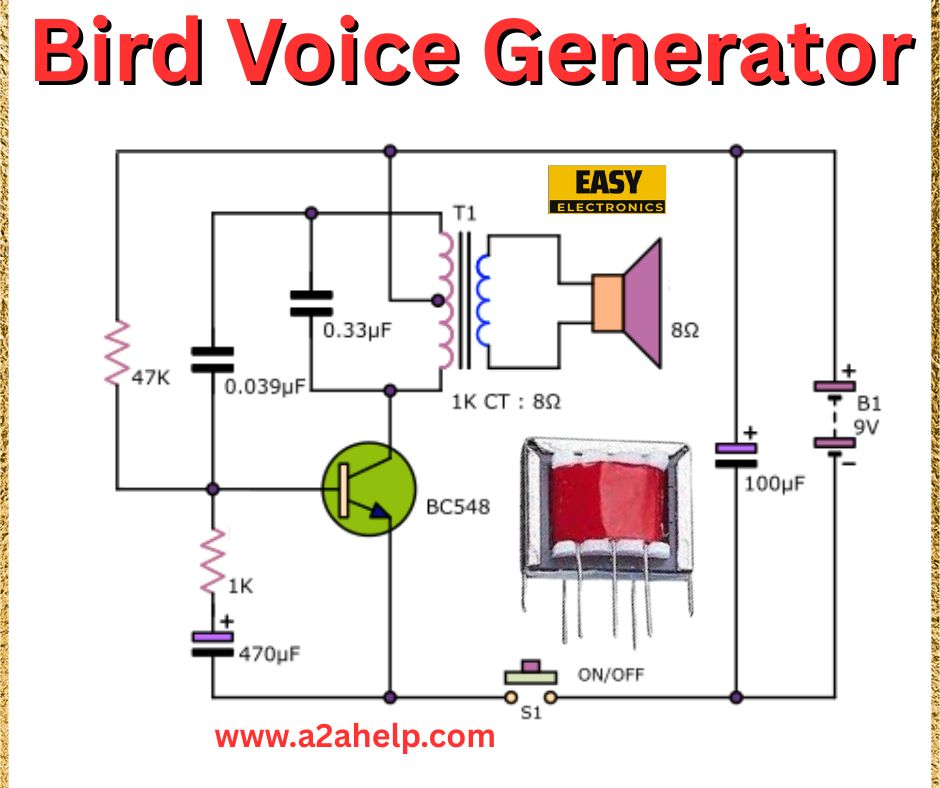

The schematic diagram of the bird voice generator circuit includes the following components:
- BC548 Transistor: A general-purpose NPN transistor that acts as the core of the oscillator circuit.
- Resistors: 47KΩ and 1KΩ resistors to control the current flow and bias the transistor.
- Capacitors: 0.033µF, 470µF, and 100µF capacitors to control the frequency and smooth the power supply.
- Transformer (T1): A 1KΩ:8Ω transformer that couples the oscillating signal to the speaker.
- Speaker: An 8Ω speaker to output the bird-like sound.
- Switch (S1): An ON/OFF switch to control the circuit.
- Power Supply (B1): A 9V battery to power the circuit.
The circuit operates as an audio oscillator, where the BC548 transistor, along with the resistors and capacitors, generates a high-frequency signal. This signal is fed into the transformer, which steps down the impedance to match the speaker and produce the chirping sound.
How Does the Bird Voice Generator Circuit Work?
Let’s break down the working principle of this circuit in simple terms:
- Oscillator Circuit: The BC548 transistor, along with the 47KΩ resistor, 1KΩ resistor, and 0.033µF capacitor, forms an oscillator. The transistor switches on and off rapidly, creating a high-frequency signal that mimics the natural chirping of birds.
- Transformer Coupling: The oscillating signal is sent to the primary winding of the transformer (1KΩ side). The transformer steps down the signal to match the 8Ω impedance of the speaker, ensuring efficient energy transfer.
- Sound Output: The transformed signal drives the 8Ω speaker, producing a chirping sound. The frequency of the chirp is determined by the values of the resistors and capacitors in the circuit.
- Power Supply: The 9V battery provides the necessary power. The 470µF and 100µF capacitors filter any noise in the power supply, ensuring stable operation.
- Switch Control: The ON/OFF switch (S1) allows you to easily turn the circuit on or off.
The result is a pleasant, bird-like sound that can be adjusted by tweaking the resistor and capacitor values to change the frequency and tone of the chirp.
Step-by-Step Guide to Build Your Own Bird Voice Generator
Ready to build your own bird voice generator? Follow these steps to create this fun circuit:
Materials Needed
- BC548 NPN transistor
- Resistors: 47KΩ, 1KΩ
- Capacitors: 0.033µF, 470µF, 100µF
- Transformer: 1KΩ:8Ω (audio transformer)
- Speaker: 8Ω
- Switch: ON/OFF toggle switch
- 9V battery and battery connector
- Breadboard or PCB for assembly
- Jumper wires and soldering kit (if using a PCB)
Step 1: Gather and Test Components
Ensure all components are in working condition. Test the transistor using a multimeter to confirm it’s functional, and verify the resistance and capacitance values of the resistors and capacitors.
Step 2: Assemble the Circuit on a Breadboard
- Start by placing the BC548 transistor on the breadboard.
- Connect the 47KΩ resistor between the base of the transistor and the positive terminal of the 9V battery.
- Attach the 0.033µF capacitor across the collector and base of the transistor.
- Connect the 1KΩ resistor between the emitter of the transistor and ground.
- Attach the primary winding of the transformer (1KΩ side) to the collector of the transistor and the positive terminal of the battery.
- Connect the secondary winding (8Ω side) to the 8Ω speaker.
- Add the 470µF capacitor across the emitter resistor and the 100µF capacitor across the battery terminals for filtering.
- Finally, insert the ON/OFF switch between the battery and the circuit.
Step 3: Power Up and Test
Connect the 9V battery, turn on the switch, and listen for the chirping sound. If the circuit doesn’t work, double-check your connections and ensure the transistor is properly biased.
Step 4: Fine-Tune the Sound
To adjust the chirping frequency, experiment with the 0.033µF capacitor value. A smaller capacitor will increase the frequency, making the chirp higher-pitched, while a larger capacitor will lower the pitch.
Step 5: Finalize the Build
Once you’re satisfied with the sound, you can transfer the circuit to a PCB, solder the components in place, and house it in a small enclosure for a professional finish.
Applications of the Bird Voice Generator Circuit
This simple circuit has a variety of fun and practical applications, including:
- Educational Projects: Teach students about transistors, oscillators, and audio circuits.
- Toys and Decorations: Add a chirping sound to bird-themed toys or garden decorations.
- Wildlife Simulation: Use it in a birdhouse to attract real birds or create an ambient sound environment.
- Sound Effects: Incorporate it into Halloween props or theater productions for realistic bird sounds.
Tips for Optimizing Your Bird Voice Generator
- Experiment with Components: Try different capacitor values to achieve the perfect chirping sound for your project.
- Use a Potentiometer: Replace the 47KΩ resistor with a potentiometer to make the chirp frequency adjustable.
- Add a Volume Control: Include a variable resistor in series with the speaker to control the sound intensity.
- Power Efficiency: Use a low-power transistor and optimize the circuit to extend battery life.
Why Build a Bird Voice Generator Circuit?
Building a bird voice generator is a rewarding project for electronics enthusiasts. It’s a low-cost, beginner-friendly circuit that offers hands-on experience with oscillators, transformers, and audio output. Plus, the end result—a cheerful bird chirp—adds a touch of nature to your creations.
Whether you’re a hobbyist, student, or educator, this project is a great way to explore the fundamentals of electronics while creating something fun and functional. So, grab your components and start building your bird voice generator today!
Conclusion
The bird voice generator circuit is a simple yet fascinating project that brings together the basics of electronics to create a delightful chirping sound. By understanding its components, working principle, and assembly process, you can easily build your own and customize it to suit your needs. Whether for education, decoration, or just for fun, this circuit is sure to bring a smile to your face with its bird-like melody.
Ready to get started? Follow the steps above, and you’ll have your own bird voice generator up and running in no time. Happy building!
