How to Build a Simple AM Radio Receiver Circuit for Beginners

by

Building your own AM radio receiver is a fantastic way to dive into the world of electronics while creating something functional and fun. In this article, we’ll explore a straightforward AM radio receiver circuit using basic components like the BC548 and BC558 transistors, as shown in the schematic below. Perfect for beginners and hobbyists, this guide will walk you through the circuit’s components, how it works, and how to assemble it step by step. Let’s tune into the world of AM radio!

Understanding the Simple AM Radio Receiver Circuit

This AM radio receiver circuit is a classic design that picks up amplitude-modulated (AM) signals, typically in the medium wave band (530–1710 kHz). It uses minimal components to detect, amplify, and play radio signals through a small speaker. Let’s break down the key parts and their roles.

Key Components of the Circuit
  1. Ferrite Rod Antenna (20 + 80 turns of 30 AWG wire): Acts as the antenna to capture AM radio signals. The ferrite rod increases the coil’s efficiency in picking up signals.
  2. Variable Capacitor (150–400 pF): Tunes the circuit to a specific AM frequency by adjusting the resonance of the antenna circuit.
  3. 1N34 Diode: A germanium diode that demodulates the AM signal by rectifying the radio frequency (RF) signal into an audio signal.
  4. BC558 and BC548 Transistors: Form a two-stage audio amplifier to boost the demodulated signal for the speaker.
  5. Resistors (470kΩ, 4.7MΩ): Bias the transistors and set the operating conditions for amplification.
  6. Capacitors (100nF, 470pF, 100µF): Filter and couple signals between stages, removing unwanted frequencies.
  7. 8Ω Speaker: Outputs the audio signal so you can hear the radio broadcast.
  8. 6V Power Supply: Powers the circuit, typically from a battery.

How the AM Radio Receiver Circuit Works

This circuit is a basic AM receiver that converts radio waves into audible sound through a series of steps:

  • Signal Reception: The ferrite rod antenna (with 20 + 80 turns of 30 AWG wire) picks up AM radio signals. The variable capacitor (150–400 pF) forms a tuned circuit with the coil, allowing you to select a specific frequency by adjusting the capacitor.
  • Demodulation: The 1N34 diode detects the AM signal, stripping away the carrier wave and leaving the audio signal. The 100nF capacitor filters out any remaining high-frequency noise.
  • Amplification: The demodulated audio signal is weak, so it’s passed to the BC558 transistor (first stage) for initial amplification. The 470kΩ and 4.7MΩ resistors bias the transistor, while the 470pF capacitor couples the signal to the next stage. The BC548 transistor (second stage) further amplifies the signal to drive the 8Ω speaker.
  • Output: The amplified audio signal is sent to the speaker, allowing you to hear the radio broadcast. The 100µF capacitor at the output filters the signal for clearer sound.

This design is simple yet effective, making it a great project for learning about radio frequency circuits and audio amplification.

Why Build an AM Radio Receiver?

Building an AM radio receiver is a rewarding project for several reasons:

  • Educational: Teaches the basics of radio frequency, demodulation, and amplification.
  • Low Cost: Uses affordable components that are easy to find.
  • Nostalgia: Experience the joy of tuning into AM radio stations, just like the early days of broadcasting.
  • Customization: Can be modified to improve performance or add features like better tuning.

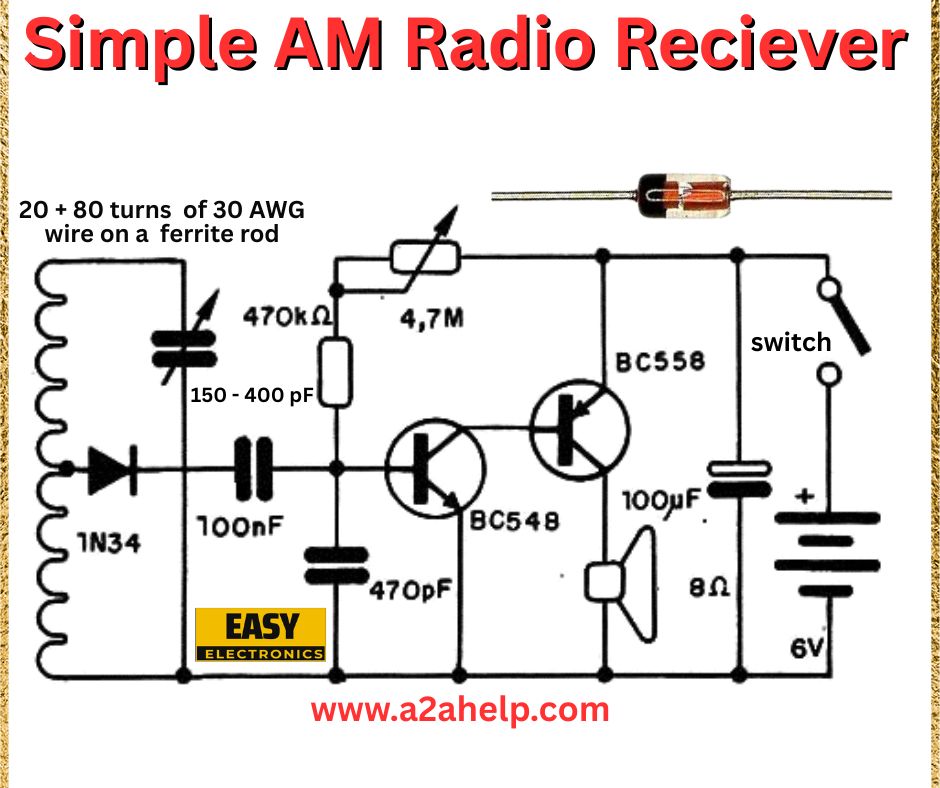

Simple AM Radio Receiver Circuit

Step-by-Step Guide to Build the Circuit

Ready to build your own AM radio receiver? Follow these steps to assemble the circuit and start listening to AM broadcasts.

Materials Needed
  • Ferrite rod with 20 + 80 turns of 30 AWG wire (or wind your own)
  • Variable capacitor (150–400 pF)
  • 1N34 germanium diode
  • BC558 and BC548 transistors
  • Resistors: 470kΩ, 4.7MΩ
  • Capacitors: 100nF (2 units), 470pF, 100µF
  • 8Ω speaker
  • 6V battery or power supply
  • Switch
  • Breadboard or PCB for assembly
  • Wires, soldering iron, and basic tools
Assembly Instructions
  1. Wind the Antenna Coil: Take a ferrite rod and wind 20 turns of 30 AWG enameled copper wire for the main coil, then add 80 more turns for the secondary coil. Secure the ends and connect as shown in the schematic.
  2. Set Up the Tuning Circuit: Connect the main coil (20 turns) to the variable capacitor (150–400 pF) to form the tuned circuit. Attach one end of the coil to ground.
  3. Add the Diode and Capacitor: Connect the 1N34 diode to the secondary coil (80 turns). Add a 100nF capacitor in parallel with the diode to filter the demodulated signal.
  4. Build the First Amplifier Stage: Place the BC558 transistor on the breadboard. Connect the 470kΩ resistor between the base and collector, and the 4.7MΩ resistor from the base to ground. Couple the demodulated signal to the base using a 100nF capacitor.
  5. Add the Second Amplifier Stage: Connect the BC548 transistor as the second stage. Use a 470pF capacitor to couple the signal from the BC558’s collector to the BC548’s base. Bias the BC548 with a resistor if needed (not shown in the schematic but can be added for stability).
  6. Connect the Speaker: Attach the 8Ω speaker to the collector of the BC548 transistor through a 100µF capacitor to filter the output.
  7. Power the Circuit: Add a switch and connect the 6V power supply. Double-check all connections before powering on.
  8. Tune and Test: Turn on the circuit, adjust the variable capacitor, and listen for AM stations. Move the ferrite rod to improve signal reception.

Tips for Optimizing the Circuit

  • Improve Reception: Use a longer antenna or position the ferrite rod in an area with better signal strength. Avoid placing the circuit near metal objects that can interfere with reception.
  • Fine-Tune the Capacitor: If the variable capacitor range isn’t sufficient, add a fixed capacitor in parallel to shift the tuning range.
  • Reduce Noise: Add a small capacitor (e.g., 10pF) across the speaker to filter out high-frequency noise.
  • Increase Volume: For louder output, replace the speaker with a higher-impedance model (e.g., 16Ω) or add another amplification stage.

Common Applications of This Circuit

This simple AM radio receiver circuit is perfect for various uses:

  • Educational Projects: Ideal for teaching students about radio waves and electronics.
  • Hobbyist Fun: A great weekend project for electronics enthusiasts.
  • Emergency Use: Can be used to listen to AM broadcasts during power outages (with a battery power supply).
  • Historical Learning: Experience how early radios worked with a minimalist design.

Troubleshooting Common Issues

  • No Sound: Check the power supply voltage (should be 6V). Ensure the speaker and transistors are properly connected.
  • Weak Signal: Adjust the variable capacitor slowly to find a station. Reposition the ferrite rod or check the coil connections.
  • Distorted Audio: Verify the diode orientation (1N34 is polarity-sensitive). Replace the 100µF capacitor if the sound is muffled.
  • No Stations Found: AM signals are weaker at night or in remote areas. Try tuning during the day or in a location with better reception.

Conclusion

Building a simple AM radio receiver circuit is a fun and educational project that brings the magic of radio to life. Using just a few components like the BC548 and BC558 transistors, a ferrite rod antenna, and a 1N34 diode, you can tune into AM broadcasts and hear the world through your own creation. Whether you’re a beginner or a seasoned hobbyist, this circuit offers a great way to learn about radio technology while enjoying the satisfaction of building something functional.

Ready to start? Gather your components, follow the steps above, and tune into your first AM station. Have questions or success stories? Leave a comment below—we’d love to hear about your experience!
