If you’re looking for an easy and reliable way to create a 1-5 minute timer circuit, the 555 timer IC is a fantastic choice. This versatile component has been a staple in electronics projects for decades, thanks to its simplicity and effectiveness. In this guide, we’ll walk you through the process of building a 1-5 minute timer circuit using the 555 timer IC, as shown in the schematic diagram below. Whether you’re a hobbyist or a beginner in electronics, this project is perfect for you. Let’s dive in!
What is a 555 Timer IC?
The 555 timer IC is a popular integrated circuit used in a variety of timing and pulse generation applications. It can operate in three modes: monostable, astable, and bistable. For this 1-5 minute timer circuit, we’ll be using the monostable mode, where the timer generates a single output pulse for a set duration when triggered. This makes it ideal for creating a delay circuit that can turn on an LED for a specific time, adjustable between 1 and 5 minutes.
Circuit Overview: 1-5 Minute Timer Using 555 IC

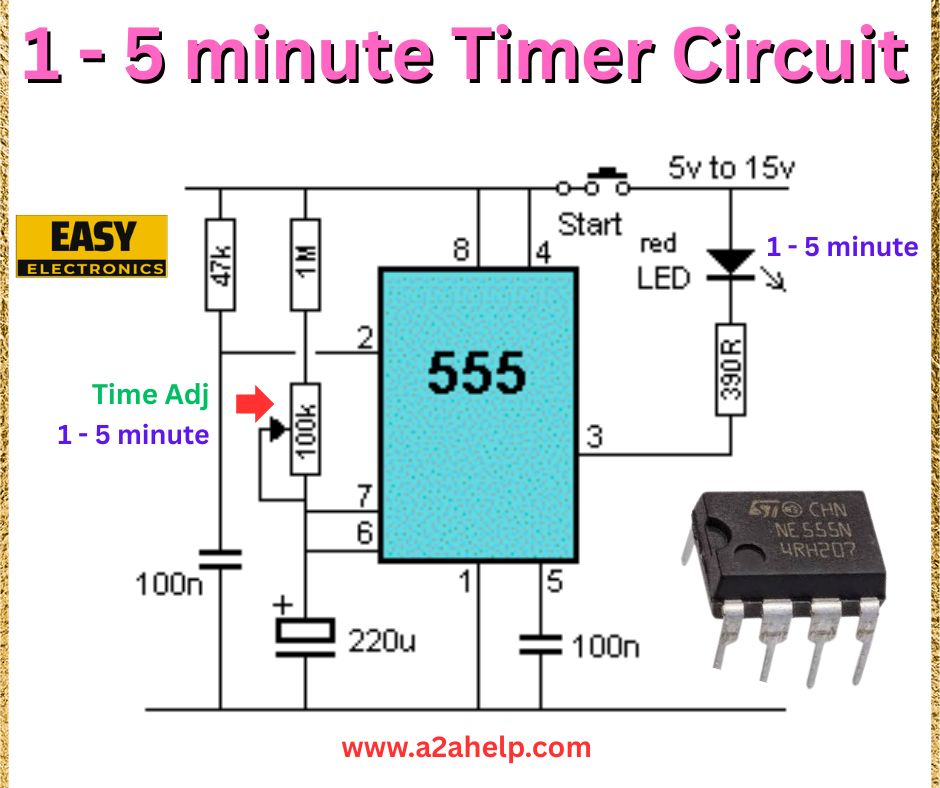

The circuit diagram we’re working with is a classic monostable configuration of the 555 timer IC. Here’s a breakdown of the components and their roles:
- 555 Timer IC (NE555N): The heart of the circuit, controlling the timing function.
- Resistors:
- 47kΩ and 1MΩ resistors, along with a 100kΩ potentiometer, set the timing duration.
- A 330Ω resistor limits the current to the LED.
- Capacitors:
- A 220µF capacitor determines the timing duration alongside the resistors.
- Two 100nF capacitors are used for noise filtering and stability.
- Red LED: Indicates when the timer is active.
- Push Button (Start): Triggers the timer.
- Power Supply: Operates between 5V and 15V, making it versatile for different setups.
The circuit allows you to adjust the timing between 1 and 5 minutes by tweaking the 100kΩ potentiometer, labeled as “Time Adj” in the diagram.
How Does the 1-5 Minute Timer Circuit Work?
In monostable mode, the 555 timer IC generates a single output pulse when triggered. Here’s the step-by-step working of the circuit:
- Triggering: When you press the “Start” push button connected to pin 2 (trigger pin), it momentarily pulls the pin low, initiating the timing cycle.
- Timing Duration: The duration of the output pulse is determined by the formula:
T = 1.1 × R × C,
where R is the total resistance (47kΩ + 1MΩ + the potentiometer value) and C is the 220µF capacitor. By adjusting the 100kΩ potentiometer, you can vary the resistance, thus setting the time between 1 and 5 minutes. - Output: During the timing period, pin 3 (output pin) goes high, lighting up the red LED. Once the timing cycle completes, the output goes low, and the LED turns off.
- Reset: The circuit resets automatically after the timing cycle and waits for the next trigger.
Step-by-Step Guide to Build the 1-5 Minute Timer Circuit
Here’s how you can assemble this timer circuit on a breadboard or PCB:
- Gather Your Components:
- 555 Timer IC (NE555N)
- Resistors: 47kΩ, 1MΩ, 100kΩ potentiometer, 330Ω
- Capacitors: 220µF, 2 × 100nF
- Red LED
- Push button
- Power supply (5V to 15V)
- Set Up the 555 Timer IC:
- Place the 555 timer IC on your breadboard. The notch or dot on the IC indicates pin 1.
- Connect pin 1 to ground and pin 8 to the positive supply (5V to 15V).
- Add the Timing Components:
- Connect the 47kΩ resistor, 1MΩ resistor, and 100kΩ potentiometer in series between pin 7 (discharge) and the positive supply.
- Connect the 220µF capacitor between pin 6 (threshold) and ground, with the positive leg of the capacitor to pin 6.
- Add a 100nF capacitor between pin 5 (control voltage) and ground for stability.
- Set Up the Trigger:
- Connect the push button between pin 2 (trigger) and ground.
- Add a 100nF capacitor between pin 2 and ground to debounce the switch.
- Connect the LED:
- Connect the red LED to pin 3 (output) through a 330Ω resistor, with the LED’s cathode to ground.
- Power the Circuit:
- Double-check all connections, then apply a 5V to 15V power supply to the circuit.
- Test and Adjust:
- Press the push button to start the timer. The LED should light up for 1 to 5 minutes, depending on the potentiometer setting.
- Adjust the potentiometer to fine-tune the timing duration.
Applications of the 1-5 Minute Timer Circuit
This simple timer circuit has a variety of practical uses, including:
- Delay Switch: Use it to delay the activation of a device for a set period.
- Reminder Timer: Set a visual reminder (via the LED) for tasks like cooking or studying.
- Hobby Projects: Incorporate it into larger projects like automated lighting or alarms.
Tips for Optimizing Your Timer Circuit
- Component Selection: Ensure your capacitors and resistors are rated appropriately for your power supply voltage to avoid damage.
- Timing Accuracy: For more precise timing, you can replace the potentiometer with a fixed resistor once you determine the desired delay.
- Power Supply: While the circuit works between 5V and 15V, a stable 9V supply (like a 9V battery) is a good choice for consistent performance.
Why Use the 555 Timer for This Project?
The 555 timer IC is a go-to component for timing circuits because:
- It’s inexpensive and widely available.
- It’s easy to use, even for beginners.
- It’s highly reliable and can handle a wide range of power supplies.
Conclusion
Building a 1-5 minute timer circuit using the 555 timer IC is a great way to get hands-on experience with electronics. This project is not only educational but also practical for various applications. By following the steps above, you can create a fully functional timer circuit that’s adjustable to your needs. So, grab your components, set up your breadboard, and start building your own timer circuit today!
