Are you looking to control the speed of a DC motor with precision? A PWM (Pulse Width Modulation) motor speed controller is an excellent solution for hobbyists, engineers, and DIY enthusiasts. In this comprehensive guide, we’ll walk you through building your own PWM motor speed controller using simple components. This project is perfect for beginners and experts alike, offering a hands-on approach to mastering motor control circuits. Let’s dive into the details!
What is a PWM Motor Speed Controller?
A PWM motor speed controller uses Pulse Width Modulation to regulate the speed of a DC motor. By varying the width of the electrical pulses sent to the motor, you can control its speed without losing torque. This method is efficient, cost-effective, and widely used in robotics, automotive applications, and electronic projects.
Components You’ll Need
To build this PWM motor speed controller, gather the following components:
- NE555 Timer IC: The heart of the PWM circuit, responsible for generating the PWM signal.
- IRF530 MOSFET: A power MOSFET to handle the motor current.
- 100kΩ Potentiometer: Used to adjust the duty cycle and control motor speed.
- 10kΩ Resistor: Stabilizes the circuit.
- 1N4148 Diodes: Protects the circuit from voltage spikes.
- 100nF and 10nF Capacitors: Filters and stabilize the signal.
- 47µF Capacitor (35V): Smooths the power supply.
- DC Motor: The load you’ll control (rated for 12V in this case).
- 12V Power Supply: To power the motor and circuit.
- Breadboard and Connecting Wires: For prototyping.
- Multimeter: To troubleshoot and verify connections.
Circuit Diagram and Assembly

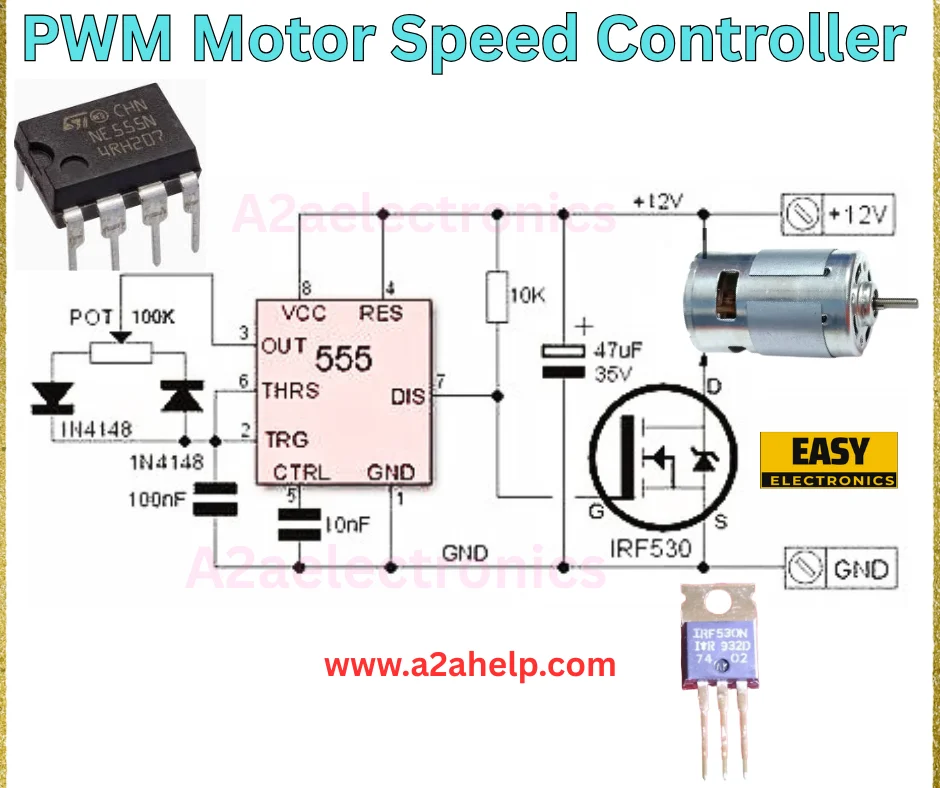

The circuit diagram in the image provides a clear layout for assembling the PWM motor speed controller. Here’s a step-by-step guide to building it:
Step 1: Set Up the NE555 Timer
- Connect pin 1 (GND) to the ground of your power supply.
- Connect pin 8 (VCC) to the 12V supply.
- Attach the 10kΩ resistor between pin 7 (DIS) and pin 8.
- Link pin 2 (TRG) and pin 6 (THRS) together, then connect them to the junction of the 100nF capacitor and 10nF capacitor, with the other ends tied to ground.
- Connect the 100kΩ potentiometer between pin 7 and ground, with the wiper connected to pin 5 (CTRL).
Step 2: Add the MOSFET
- Connect the gate of the IRF530 MOSFET to pin 3 (OUT) of the NE555 timer.
- Link the source (S) of the MOSFET to ground.
- Attach the drain (D) to one terminal of the DC motor.
- Connect the other terminal of the motor to the 12V supply.
- Place the 47µF capacitor across the motor terminals to reduce noise.
Step 3: Final Connections
- Ensure all ground connections are common.
- Double-check the polarity of the capacitors and diodes.
- Power up the circuit and test the connections with a multimeter.
How It Works
The NE555 timer generates a PWM signal based on the resistance of the potentiometer. Adjusting the potentiometer changes the duty cycle, which controls the average voltage supplied to the motor. The IRF530 MOSFET acts as a switch, amplifying the signal to drive the motor. The capacitors and diodes ensure smooth operation and protect the circuit from back EMF generated by the motor.
Testing and Troubleshooting
- Turn On the Power: Gradually adjust the potentiometer and observe the motor speed.
- Check for Issues: If the motor doesn’t run, verify the power supply, connections, and component orientation.
- Fine-tune: Adjust the potentiometer to achieve the desired speed range.
Benefits of a PWM Motor Speed Controller
- Energy Efficient: Reduces power loss compared to traditional methods.
- Precise Control: Offers smooth speed adjustments.
- Versatile: Suitable for various DC motor applications.
Safety Tips
- Always double-check connections before powering on.
- Use a power supply within the motor’s rated voltage.
- Handle the MOSFET and IC with care to avoid static damage.
Conclusion
Building a PWM motor speed controller is a rewarding project that enhances your understanding of electronics and motor control. With the right components and careful assembly, you can create a reliable circuit for your DIY projects. Visit www.a2ahelp.com for more electronics tutorials and resources. Start experimenting today and take your engineering skills to the next level!
