Are you looking for an innovative way to upgrade your home security or simply add a unique touch to your doorbell system? A door knock sensing doorbell is a fantastic DIY electronics project that detects knocks on your door and triggers a doorbell ring. In this comprehensive guide, we’ll walk you through the process of building your own door knock sensing doorbell using simple components and a clear circuit diagram. Let’s dive in!
What Is a Door Knock Sensing Doorbell?
A door knock sensing doorbell is an electronic device that uses a piezo element to detect vibrations from a knock on the door. Once a knock is detected, the circuit activates a relay, which in turn rings a standard doorbell connected to a 230V AC supply. This project is perfect for electronics enthusiasts and homeowners looking for a cost-effective, hands-on solution.
Components You’ll Need
To build this door knock sensing doorbell, gather the following materials:
- 12V DC power supply
- Piezo element (to detect knocks)
- 2.2µF capacitor (35V)
- 1MΩ resistors (x3)
- 10kΩ resistor
- 1kΩ resistor
- BC547 NPN transistor
- BD139 NPN transistor
- 1N4007 diode
- Relay (compatible with 12V)
- Doorbell unit (230V AC)
- Connecting wires
- Soldering kit and breadboard (for prototyping)
Understanding the Circuit Diagram

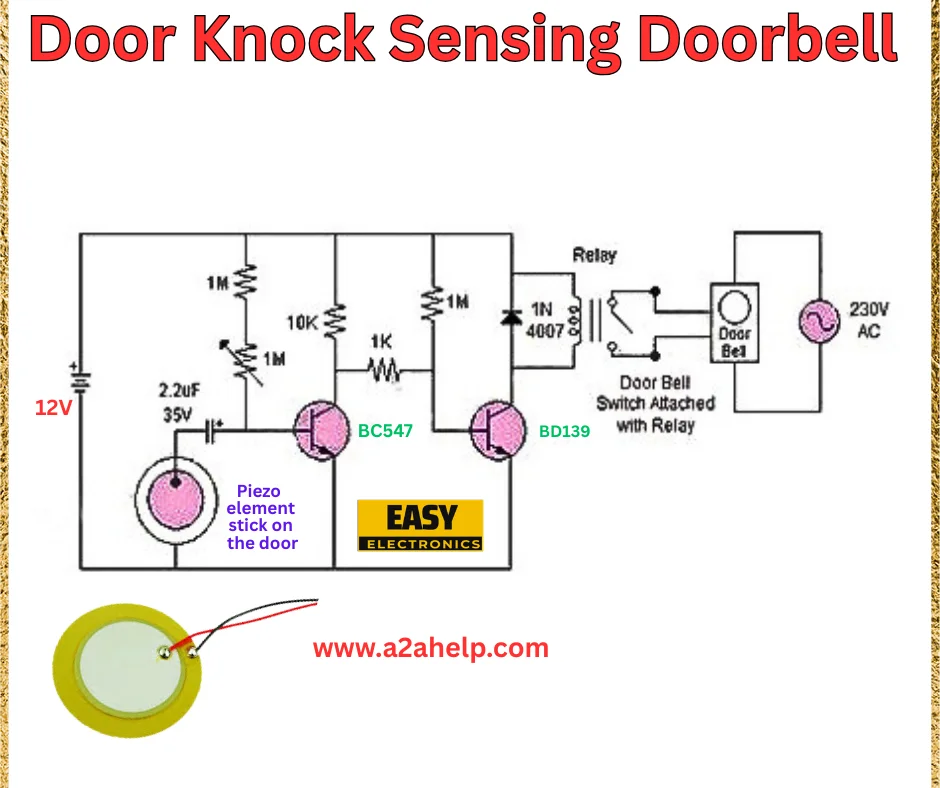

The circuit diagram provided is a blueprint for this project. Here’s a breakdown of how it works:
- Piezo Element: Attached to the door, it generates a small electrical signal when knocked.
- Capacitor and Resistors: These components filter and amplify the signal from the piezo element.
- Transistors (BC547 and BD139): The BC547 acts as a switch, while the BD139 drives the relay based on the amplified signal.
- Relay: Activates the 230V AC doorbell when triggered.
- Diode (1N4007): Protects the circuit from voltage spikes.
- Power Supply: A 12V DC source powers the entire setup.
Step-by-Step Construction Guide
Step 1: Prepare the Piezo Element
Attach the piezo element to your door using adhesive. Connect its two wires to the circuit—positive to the capacitor and negative to the ground.
Step 2: Build the Signal Conditioning Circuit
- Connect the 2.2µF capacitor in series with the piezo element.
- Add the 1MΩ resistors and 10kΩ resistor to form a voltage divider and filter the signal.
- Link the 1kΩ resistor between the BC547 base and the filtered signal line.
Step 3: Assemble the Transistor Stage
- Connect the BC547 transistor’s collector to the 12V supply and its emitter to the ground.
- Attach the BD139 transistor’s base to the BC547 collector, its collector to the 12V supply, and its emitter to the relay coil.
- Place the 1N4007 diode across the relay coil to prevent back EMF.
Step 4: Integrate the Relay and Doorbell
- Wire the relay to the 230V AC doorbell unit.
- Ensure the relay switches the doorbell circuit when activated.
Step 5: Power Up and Test
Connect the 12V DC power supply. Knock on the door— if the circuit is wired correctly, the piezo element will detect the vibration, and the doorbell will ring.
Benefits of a Door Knock Sensing Doorbell
- Energy Efficient: Operates on a low-power 12V supply.
- Customizable: Easily adjustable sensitivity with resistor values.
- Enhanced Security: Alerts you to knocks, even if the traditional button is bypassed.
Troubleshooting Tips
- No Response: Check the piezo element connection and power supply.
- False Triggers: Adjust the resistor values to reduce sensitivity.
- Doorbell Not Ringing: Ensure the relay and 230V wiring are intact.
Why Choose This Project?
This door knock sensing doorbell combines simplicity with functionality, making it an ideal project for hobbyists and professionals alike. With components readily available online or at local electronics stores, you can complete this in an afternoon. Plus, it adds a modern twist to traditional doorbells, impressing guests and enhancing your home automation skills.
Conclusion
Building a door knock sensing doorbell is a rewarding electronics project that blends creativity with practical application. By following this guide and using the provided circuit diagram, you can create a reliable system tailored to your needs. Visit www.a2ahelp.com for more innovative electronics projects and start your DIY journey today!
