Are you interested in creating your own sound effects with electronics? Building a beeper sound circuit is a fun and educational DIY project that introduces you to the world of audio electronics. Using a 555 timer IC, this guide will walk you through the process step-by-step. Whether you’re a beginner or an experienced hobbyist, this project is perfect for enhancing your skills. Let’s dive into this exciting tutorial!
What Is a Beeper Sound Circuit?
A beeper sound circuit generates an audible tone using electronic components. This particular design employs a 555 timer IC in astable mode to produce a continuous beeping sound, making it ideal for alarms, notifications, or simple sound experiments. It’s a great way to explore timers, oscillators, and basic circuit design.
Materials Needed
Before you begin, gather these components:
- 555 Timer IC
- 10kΩ Resistor (x2)
- 1kΩ Resistor
- 470Ω Resistor
- 10µF Capacitor
- 0.01µF Capacitor
- LED
- Buzzer
- 12V Power Supply
- Breadboard or PCB
- Connecting wires

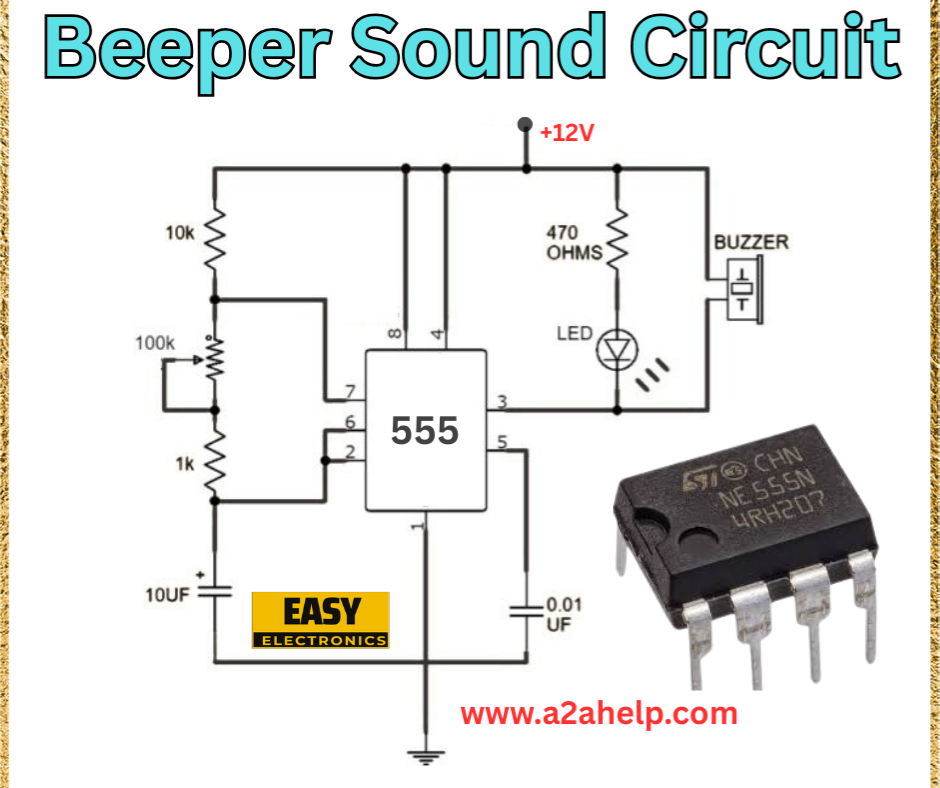

Circuit Diagram Explanation
The circuit diagram is straightforward and easy to follow. Here’s a breakdown of the connections:
- Power Supply: A 12V source powers the circuit.
- 555 Timer IC: Configured in astable mode to generate the beeping frequency.
- Resistors and Capacitors: Control the oscillation frequency and stability.
- LED: Indicates when the circuit is active.
- Buzzer: Produces the audible beeping sound.
Step-by-Step Guide to Building the Beeper Sound Circuit
Step 1: Set Up the Breadboard
Place the 555 timer IC on the breadboard. Align it so pin 1 is grounded and pin 8 is connected to the 12V supply.
Step 2: Connect the Power Supply
- Connect the positive terminal of the 12V supply to pin 8.
- Link the negative terminal to pin 1 (ground).
Step 3: Configure the Astable Mode
- Connect a 10kΩ resistor between pin 7 and pin 8.
- Attach another 10kΩ resistor between pin 6 and pin 7.
- Link a 1kΩ resistor between pin 2 and pin 6.
- Connect a 10µF capacitor between pin 2 and ground.
- Add a 0.01µF capacitor between pin 5 and ground.
Step 4: Add the Output Stage
- Connect a 470Ω resistor from pin 3 (output) to the positive terminal of the LED.
- Link the LED’s negative terminal to the positive terminal of the buzzer.
- Connect the buzzer’s negative terminal to ground.
Step 5: Test the Circuit
Power on the circuit. The LED should light up, and the buzzer should emit a continuous beeping sound. Adjust the capacitor values if you want to change the frequency.
How Does It Work?
The 555 timer IC in astable mode generates a square wave at a frequency determined by the resistors and capacitors. This oscillating signal drives the buzzer to produce the beeping sound. The LED acts as a power indicator, lighting up when the circuit is operational. The frequency can be adjusted by tweaking the resistor and capacitor values.
Safety Precautions
- Voltage Check: Ensure the power supply does not exceed 12V to avoid damaging the IC.
- Component Handling: Avoid static discharge when working with the 555 timer.
- Volume Levels: Use the circuit in a well-ventilated area to avoid discomfort from the buzzer.
Troubleshooting Tips
- No Sound: Verify the power supply and buzzer connections.
- LED Not Lighting: Check the 470Ω resistor and LED polarity.
- Irregular Beeping: Ensure correct capacitor and resistor values.
Benefits of Building a Beeper Sound Circuit
- Educational: Learn about timers and audio generation.
- Affordable: Uses inexpensive, readily available parts.
- Versatile: Can be used in alarms or DIY projects.
Conclusion
Creating a beeper sound circuit with a 555 timer IC is a fantastic way to dive into electronics and audio projects. This guide provides all the steps to build a working circuit, perfect for beginners and experts alike. For more exciting electronics tutorials and projects, visit www.a2ahelp.com. Start building and enjoy the sound of your success!
