If you’re looking to control the brightness of a 12V LED filament bulb, a simple 12V lamp dimmer circuit can be a game-changer. Whether you’re working on a DIY project, upgrading your RV lighting, or creating a custom ambiance at home, this circuit offers an affordable and efficient solution. In this guide, we’ll break down the components, working principle, and steps to build a 12V lamp dimmer circuit using the popular NE555 timer IC. Let’s dive in!
What Is a 12V Lamp Dimmer Circuit?
A 12V lamp dimmer circuit allows you to adjust the brightness of a 12V light source, such as an LED filament bulb, by controlling the power delivered to it. This circuit uses pulse-width modulation (PWM), a technique that varies the duty cycle of the power signal to dim or brighten the lamp without wasting energy as heat. The result? Efficient dimming with minimal power loss, perfect for low-voltage applications like 12V systems.
Components Needed for the 12V Lamp Dimmer Circuit
To build this circuit, you’ll need the following components:
- NE555 Timer IC: The heart of the circuit, used to generate the PWM signal.
- 2N2955 PNP Transistor: Acts as a switch to control the current to the lamp.
- 2N3053 NPN Transistor: Works with the 2N2955 to drive the lamp.
- 1N4001 Diode: Protects the circuit from voltage spikes.
- Resistors: 1KΩ (2 units), 50KΩ potentiometer (for brightness adjustment), 100Ω.
- Capacitor: 0.1µF, used to stabilize the timing in the NE555.
- 12V LED Filament Bulb (5W): The load you’ll be dimming.
- 12V Power Supply: To power the entire circuit.
These components are affordable and widely available at electronics stores or online marketplaces.
How Does the 12V Lamp Dimmer Circuit Work?
The circuit operates using the NE555 timer IC in astable mode, generating a square wave signal. Here’s a simplified explanation of how it works:
- PWM Generation: The NE555, configured with resistors (1KΩ and 50KΩ potentiometer) and a 0.1µF capacitor, produces a PWM signal at its output (pin 3). The 50KΩ potentiometer adjusts the duty cycle of this signal, which controls the brightness of the lamp.
- Transistor Switching: The PWM signal drives the 2N3053 NPN transistor, which in turn controls the 2N2955 PNP transistor. The 2N2955 acts as a switch, rapidly turning the 12V LED filament bulb on and off based on the PWM signal.
- Brightness Control: By adjusting the potentiometer, you change the duty cycle of the PWM signal. A higher duty cycle means the lamp is on for a longer portion of each cycle, making it brighter, while a lower duty cycle dims the lamp.
- Protection: The 1N4001 diode across the lamp prevents voltage spikes from damaging the transistors when the lamp is switched off.
The result is smooth, flicker-free dimming of your 12V LED filament bulb, with the 100Ω resistor limiting current to protect the circuit.
Step-by-Step Guide to Build the Circuit
Follow these steps to assemble your 12V lamp dimmer circuit:

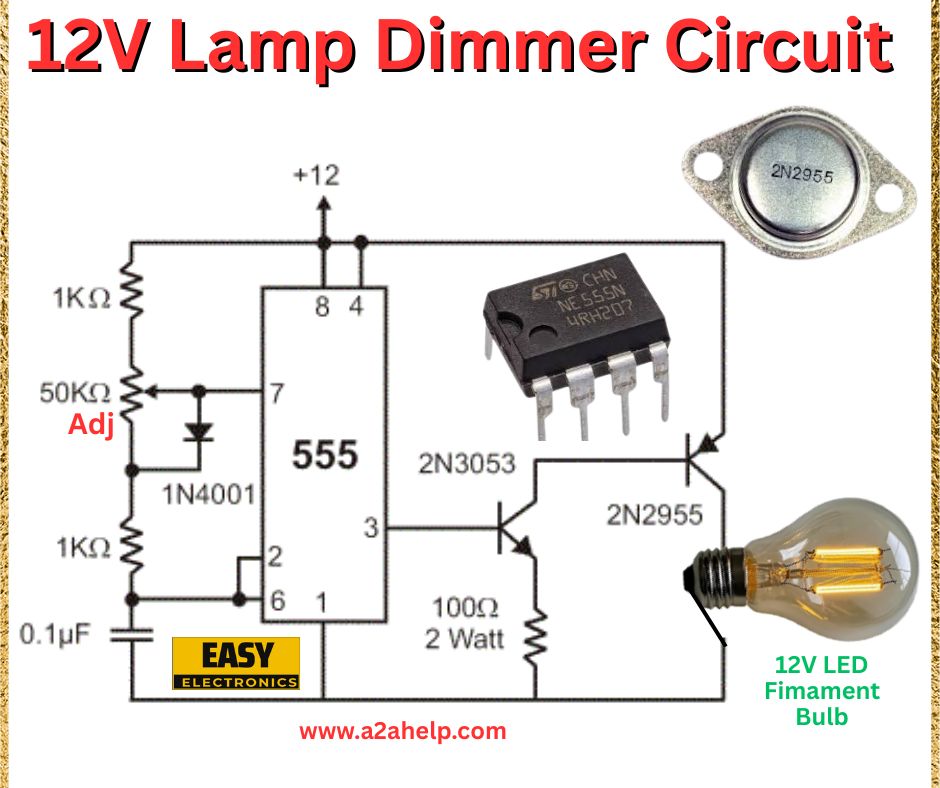

- Set Up the NE555 Timer IC:
- Insert the NE555 IC into a breadboard or PCB.
- Connect pin 1 to ground and pin 8 to the +12V supply.
- Link pins 2 and 6 together, and connect a 0.1µF capacitor between pin 2 and ground.
- Add a 1KΩ resistor between pin 7 and +12V, and another 1KΩ resistor between pins 6 and 7.
- Connect a 50KΩ potentiometer between pin 7 and ground to act as the brightness adjustment knob.
- Add the Transistors:
- Connect the output (pin 3) of the NE555 to the base of the 2N3053 NPN transistor through a 1N4001 diode.
- Tie the emitter of the 2N3053 to ground and its collector to the base of the 2N2955 PNP transistor.
- Connect the emitter of the 2N2955 to +12V and its collector to the lamp.
- Connect the Lamp and Resistor:
- Attach the 12V LED filament bulb between the collector of the 2N2955 and ground.
- Add a 100Ω resistor in series with the lamp to limit current and protect the circuit.
- Power the Circuit:
- Double-check all connections, then connect a 12V power supply to the circuit.
- Turn on the power and adjust the 50KΩ potentiometer to control the brightness of the lamp.
Tips for Best Performance
- Heat Management: The 2N2955 transistor may get warm during operation. Consider adding a small heatsink if you’re using a higher-wattage lamp.
- Component Ratings: Ensure your LED filament bulb is rated for 12V and doesn’t exceed 5W to avoid overloading the circuit.
- Smooth Adjustments: If the dimming isn’t smooth, check the capacitor value (0.1µF) and ensure the potentiometer is functioning properly.
- Safety First: Always disconnect the power supply before making any adjustments to the circuit.
Applications of the 12V Lamp Dimmer Circuit
This circuit is versatile and can be used in various scenarios, including:
- Automotive Lighting: Dim the interior lights of your car or RV.
- Home Ambiance: Create mood lighting with 12V LED strips or filament bulbs.
- Solar-Powered Systems: Efficiently control lighting in off-grid setups.
- DIY Projects: Add dimming functionality to custom lighting projects.
Why Use a PWM-Based Dimmer?
Unlike traditional resistive dimmers, which waste energy as heat, a PWM-based dimmer like this one is highly efficient. It’s especially ideal for LED bulbs, as it prevents flickering and extends the lifespan of the lamp by reducing thermal stress.
Conclusion
Building a 12V lamp dimmer circuit using the NE555 timer IC is a straightforward and rewarding project for electronics enthusiasts. With just a handful of components, you can create a reliable dimmer for your 12V LED filament bulb, perfect for a wide range of applications. By following the steps outlined in this guide, you’ll have a fully functional dimmer circuit that’s both efficient and easy to use.
Ready to get started? Gather your components, follow the steps, and enjoy the satisfaction of controlling your lighting with a custom-built dimmer circuit. If you have any questions or need further assistance, feel free to leave a comment below!
