How to Build a High Current Voltage Regulator: A Step-by-Step Guide for DIY Enthusiasts

by

Looking to create a reliable high current voltage regulator for your electronics project? Whether you’re powering a motor, charging a battery, or building a custom power supply, this simple circuit is an excellent choice. In this beginner-friendly guide, we’ll walk you through the process of designing a high current voltage regulator using the TL431 IC and IRF540N MOSFET. With clear instructions, a detailed schematic, and practical tips, you’ll be able to build a circuit that delivers a stable, regulated voltage with high current capacity. Let’s get started!

What Is a High Current Voltage Regulator?

A high current voltage regulator is an electronic circuit that maintains a stable output voltage despite changes in input voltage or load current. Unlike standard linear regulators like the 7805, which are limited to low current outputs (typically 1A), a high current regulator can handle several amps, making it ideal for power-hungry applications.

The circuit we’re discussing uses the TL431 precision shunt regulator IC paired with the IRF540N MOSFET to achieve high current regulation while keeping the design simple and efficient. With an input voltage of 24V, this circuit can provide a regulated output voltage while supporting significant current loads.

Components Needed for the High Current Voltage Regulator

Here’s a list of components you’ll need to build this circuit:

  • IC:
    • TL431C (precision shunt regulator IC)
  • MOSFET:
    • IRF540N (N-channel MOSFET for high current handling)
  • Resistors:
    • 1kΩ
    • 24kΩ
    • 2.2kΩ
    • 22Ω
  • Capacitor:
    • 100nF (ceramic, for noise filtering)
  • Power Supply:
    • 24V DC input
  • Miscellaneous:
    • Breadboard or PCB for assembly
    • Wires, soldering tools (if needed)

These components are affordable and widely available, making this project accessible for hobbyists and DIY enthusiasts.

How Does This High Current Voltage Regulator Work?

Let’s break down the working principle of this circuit:

  1. Voltage Reference with TL431:
    • The TL431C is a precision shunt regulator IC that acts as a programmable voltage reference. It compares the voltage at its REF pin to an internal 2.5V reference and adjusts the current flow between its cathode and anode to maintain stability.

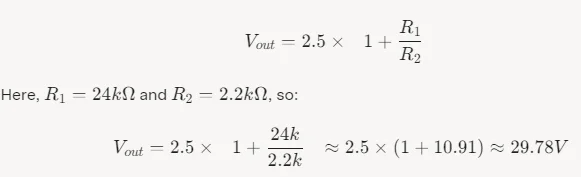

    • The 24kΩ and 2.2kΩ resistors form a voltage divider connected to the REF pin of the TL431. This divider sets the desired output voltage. The output voltage can be calculated using the formula:
    • output will be limited to slightly below 24V, depending on the MOSFET’s voltage drop.
  2. High Current Handling with IRF540N:
    • The IRF540N MOSFET is an N-channel MOSFET capable of handling high currents (up to 33A). It acts as a pass element, controlling the current flow from the 24V input to the output.
    • The 1kΩ resistor connects the gate of the IRF540N to the cathode of the TL431, allowing the TL431 to control the MOSFET’s gate voltage.
    • The 22Ω resistor limits the current to the TL431 and ensures proper operation.
  3. Stabilization:
    • A 100nF capacitor is connected between the output and ground to filter out high-frequency noise and improve stability.
  4. Output:
    • The regulated voltage is available at the source of the IRF540N, which can be connected to your load.

This circuit is efficient for applications requiring a stable voltage with high current, such as powering motors, LEDs, or other high-power devices.

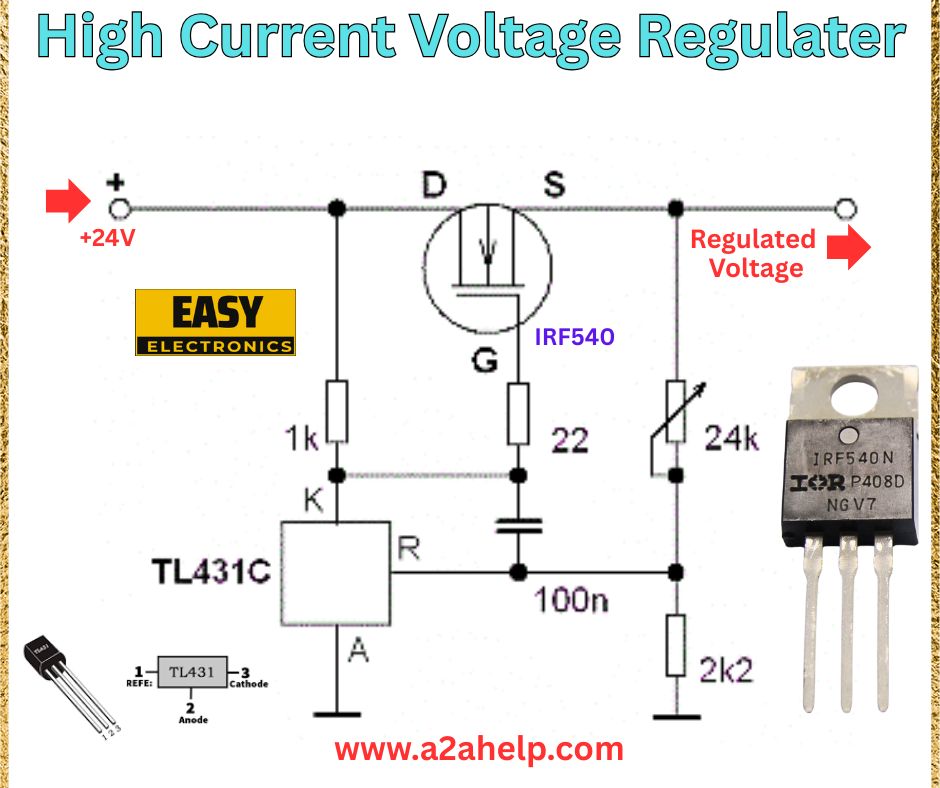

high current voltage regulator circuit

Step-by-Step Guide to Build the High Current Voltage Regulator

Follow these steps to assemble the circuit:

  1. Gather Your Components:
    • Ensure you have all the components listed above. Verify that the IRF540N MOSFET is genuine, as counterfeit MOSFETs may not handle the rated current.
  2. Set Up the Breadboard or PCB:
    • Use a breadboard for prototyping or a PCB for a more permanent setup. Refer to the schematic to place components accurately.
  3. Connect the TL431 IC:
    • Place the TL431C on the breadboard. Connect its anode to ground.
    • Set up the voltage divider using the 24kΩ and 2.2kΩ resistors. Connect the 24kΩ resistor between the output (source of IRF540N) and the REF pin, and the 2.2kΩ resistor between the REF pin and ground.
  4. Add the IRF540N MOSFET:
    • Place the IRF540N on the breadboard. Connect its drain to the 24V input and its source to the output (regulated voltage).
    • Connect the 1kΩ resistor between the gate of the IRF540N and the cathode of the TL431.
  5. Add Supporting Components:
    • Connect the 22Ω resistor between the cathode of the TL431 and the output (source of IRF540N).
    • Add the 100nF capacitor between the output and ground to filter noise.
  6. Power Up and Test:
    • Connect a 24V DC power supply to the input.
    • Measure the output voltage using a multimeter. Adjust the 24kΩ or 2.2kΩ resistors if you need a different output voltage.
    • Connect a load to the output and verify that the voltage remains stable.

Tips for Optimizing Your Voltage Regulator

  • Adjust the Output Voltage: To change the regulated voltage, modify the 24kΩ or 2.2kΩ resistors in the voltage divider. Use the formula provided above to calculate the new values.
  • Heat Management: The IRF540N may heat up under high current loads. Attach a heatsink to the MOSFET to prevent overheating.
  • Input Voltage: Ensure the input voltage is at least 2–3V higher than the desired output to account for the MOSFET’s voltage drop.
  • Capacitor Selection: If you experience oscillations, try increasing the 100nF capacitor to 1µF for better stability.

Why Build a High Current Voltage Regulator?

This circuit offers several benefits:

  • High Current Capability: The IRF540N can handle up to 33A, making it suitable for power-hungry applications.
  • Precision Regulation: The TL431 provides accurate voltage regulation, ensuring a stable output.
  • Cost-Effective: The components are inexpensive and easy to source.
  • Versatile: Use this circuit for powering motors, LED strips, battery chargers, or custom power supplies.

Troubleshooting Common Issues

  • No Output Voltage:
    • Check the connections, especially the pinout of the TL431 and IRF540N.
    • Verify that the 24V input is connected correctly.
  • Unstable Voltage:
    • Ensure the 100nF capacitor is properly connected.
    • Check for loose connections or poor soldering.
  • Overheating:
    • If the IRF540N is overheating, reduce the load current or add a heatsink.
  • Incorrect Output Voltage:
    • Recalculate the voltage divider resistors (24kΩ and 2.2kΩ) to ensure the desired output voltage.

Conclusion

Building a high current voltage regulator using the TL431 IC and IRF540N MOSFET is a fantastic project for electronics enthusiasts. This circuit provides a stable, regulated voltage with the ability to handle high currents, making it perfect for a wide range of applications. With just a few components and some basic tools, you can create a reliable power solution for your DIY projects.

Ready to build your own voltage regulator? Follow the schematic, gather your components, and start experimenting. If you have any questions or tips to share, drop a comment below—we’d love to hear about your experience!
