Electric fencing offers a practical way to secure properties, keep livestock in, and keep intruders or wild animals out. Understanding how an electric fencing circuit works—especially as shown in the provided diagram—can help you build a safer, more effective, and reliable barrier on your land. This article breaks down the essentials: how the circuit works, why each component matters, and how to build or troubleshoot your own electric fence safely.
What Is an Electric Fence and Who Uses One?
An electric fence is a type of barrier that delivers a controlled, short-duration shock to any animal or person that touches it. The shock isn’t designed to injure, but to deter or train animals and potential intruders. The system is commonly used by farmers for animal management, property owners for security, and even in industrial situations for perimeter protection.
How Does an Electric Fencing Circuit Work?
At its core, an electric fencing circuit uses a power source, an energy pulse generator (often called an energizer or inverter circuit), a step-up transformer, rectification and filtering stages, and the fence wires. Here’s a simplified explanation based on your schematic:
- Energy Source: A 12V battery provides safe, low-voltage DC power.
- Oscillator and Switch: Components like the 2N3055 transistor, capacitors, and resistors create a fast on-off switching oscillation, which is amplified by the transistor. This converts DC into a high-frequency pulsed signal.
- Step-Up Transformer: The small AC pulses drive a transformer (TR1), which boosts the voltage up to a much higher value (commonly 240V or above).
- Rectification and Filtering: Diodes such as the 1N4007 rectify the boosted AC voltage to DC. Additional capacitors smooth out the voltage.
- Fence Output: The output is delivered as sharp pulses along the fence wire. When an animal (or person) touches the fence while grounded, the circuit is completed, and a stimulating electric shock is delivered.

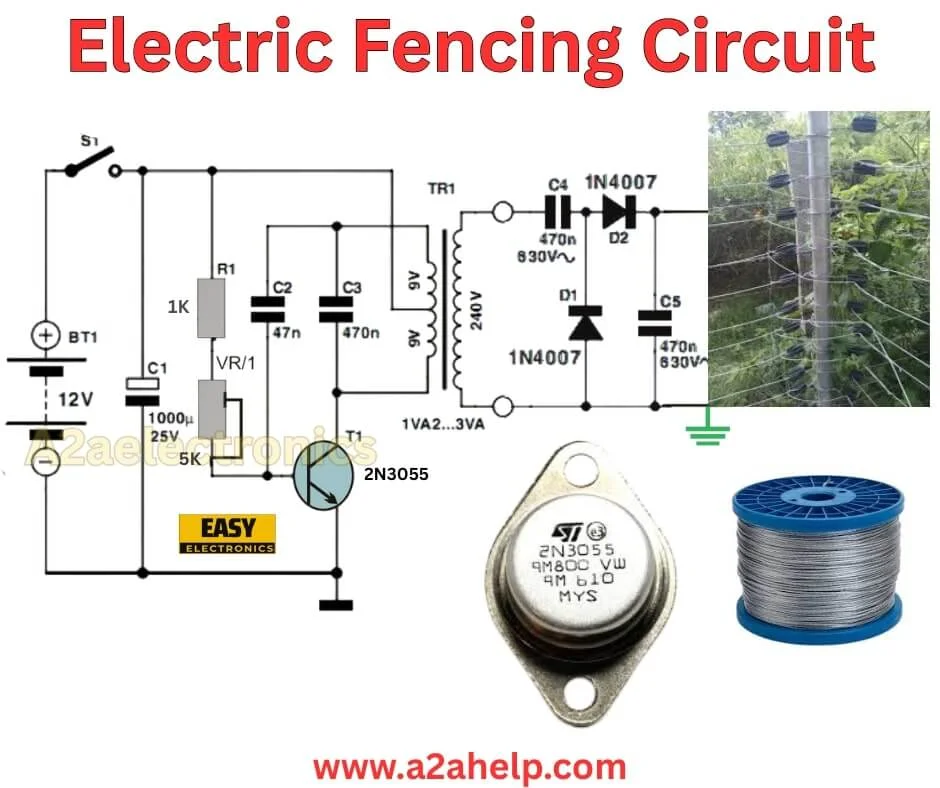

Step-by-Step: Inside the Circuit Diagram
Let’s walk through each important part of the diagram:
1. Power Supply (12V Battery)
- The battery provides a stable DC voltage and is rechargeable.
- Using a low-voltage source improves safety and allows for portable or solar-powered configurations.
2. Oscillator Section
- VR1 (variable resistor or potentiometer) and R1 set the timing (frequency) of pulse generation.
- C1, along with VR1, determines the rate at which the circuit produces pulses, typically about one per second.
3. 2N3055 Transistor as Switch
- The 2N3055 is a power transistor functioning as an electronic switch.
- It amplifies the weak oscillating signal so that enough current can flow to the transformer primary coil.
4. Step-Up Transformer (TR1)
- The core component boosts the voltage from the battery level up to a high voltage pulse.
- Primary winding takes the 12V oscillation; secondary delivers hundreds of volts (e.g., 240V or more), enough to be felt but not to cause harm if set correctly.
- A transformer such as 9V-0-9V/240V (1-3VA) is commonly used.
5. Rectifier and Filter (Diodes and Capacitors)
- Diodes (D1, D2: 1N4007) convert the AC from the transformer into DC pulses.
- Capacitors (C4, C5) filter and stabilize these pulses for consistent output.
6. Fence Output Connections
- One output terminal connects to the fence wire (the “hot” line).
- The other connects firmly to the ground via a grounding rod.
- Proper grounding ensures consistent and effective shocks—even in poor soil conditions.
How the Shock Works and Is Safe
The system sends a short, high-voltage pulse (often between 700–7000V, depending on circuit and transformer). Because this pulse is very brief (fractions of a second) and happens at intervals (once per second or slower), the risk of injury is minimized, while the pain is enough to deter animals or intruders. The short pulse allows the animal or human to quickly withdraw from the fence, reducing risk compared to continuous voltage.
Why Use an Electric Fence? Key Benefits
- Animal Control: Livestock and pets can be safely contained without elaborate barriers.
- Security: Effective for keeping intruders out of private or restricted areas without physical walls.
- Low Maintenance: With quality wiring and grounding, upkeep is minimal.
- Cost-Effective: Highly affordable compared to solid physical fences, especially for large properties.
Component Selection Guide
Here’s a brief reference for each key part in your fence circuit:
| Component | Role | Typical Example |
|---|---|---|
| Battery | Power source | 12V Sealed Lead-Acid |
| Switch (S1) | Turns system on/off | SPST Switch |
| R1, VR1 | Set timing/frequency | 1kΩ, 5kΩ Potentiometer |
| C1–C3 | Timing/pulse shaping | 1000μF/25V, 47nF, 470nF |
| 2N3055 | Power switching transistor | TO-3 Metal Can |
| TR1 | Step-up transformer | 9V-0-9V/240V (1-3VA) |
| D1, D2 | Rectifier diodes | 1N4007 |
| C4, C5 | Filtering capacitors | 470nF/630V |
All values are typical and may be adjusted for different fencing needs.
Understanding the Grounding System
A well-grounded electric fence is crucial. Dry, sandy, or rocky soils are poor conductors, so use multiple ground rods if needed for best effect. The electrical path returns to the energizer through the earth, so without solid grounding, the system won’t deliver an effective shock.
DIY Tips, Safety, and Legal Notice
- Testing: Always test with appropriate meters or fence testers. Never touch a powered electric fence directly.
- Insulation: Use proper insulators on fence posts to prevent current leaks or shorts.
- Wire: Use high-tensile, conductive wire intended for electric fencing. Avoid rusty, corroded, or thin wire.
- Local Laws: Electric fences can have legal restrictions based on your region. Always check local regulations—especially before using them around residential areas.
Common Problems and Troubleshooting
Low or No Output:
- Check battery voltage and connections.
- Make sure the ground rod is properly installed and moist.
Shorts or Sudden Loss of Power:
- Look for broken or sagging wires touching the ground.
- Inspect for insulation breakdown on posts.
Weak Shock:
- Soil may be too dry or rocky—add more ground rods.
Enhancements and Modern Features
- Solar Panels: For remote setups, solar panels can keep your battery charged year-round.
- IoT Monitoring: Advanced systems can send alerts to your phone if there’s a fault or intrusion.
- Multiple Zones: Larger installations may use separate circuits or energizers for different fence lines.
Final Thoughts
Building your own electric fencing circuit using a tested design like this can protect property, animals, and crops in a sustainable, effective way. The key to success is understanding each circuit part, using quality materials, and prioritizing safety—both for humans and animals. Whether you’re a hobbyist, educator, or farmer, a homemade electric fence circuit is a rewarding and practical DIY project.
