Hey, if you’re tinkering with electronics and need to drop 12V down to a stable 5V for something like powering an Arduino, Raspberry Pi, or even car accessories, a buck converter is your go-to. I’ve been through plenty of these builds, and the LM2596 chip makes it straightforward. Looking at this image you shared, it’s a classic setup: a module based on the LM2596 stepping down 12V to 5V at up to 3A. There’s a photo of the board with the chip, inductor, caps, and a schematic showing the basics. Let me break it down for you, explain how it works, and guide you through building or using one. We’ll cover components, assembly, applications, and tips to keep things running smoothly. By the end, you’ll have everything to get this going without headaches.
What Exactly Is a Buck Converter?
A buck converter, or step-down regulator, takes a higher DC voltage and efficiently converts it to a lower one. Unlike linear regulators that dissipate excess power as heat, buck converters switch the input on and off rapidly, storing energy in an inductor and releasing it at a lower voltage. This means higher efficiency, less heat, and the ability to handle more current without a massive heatsink.

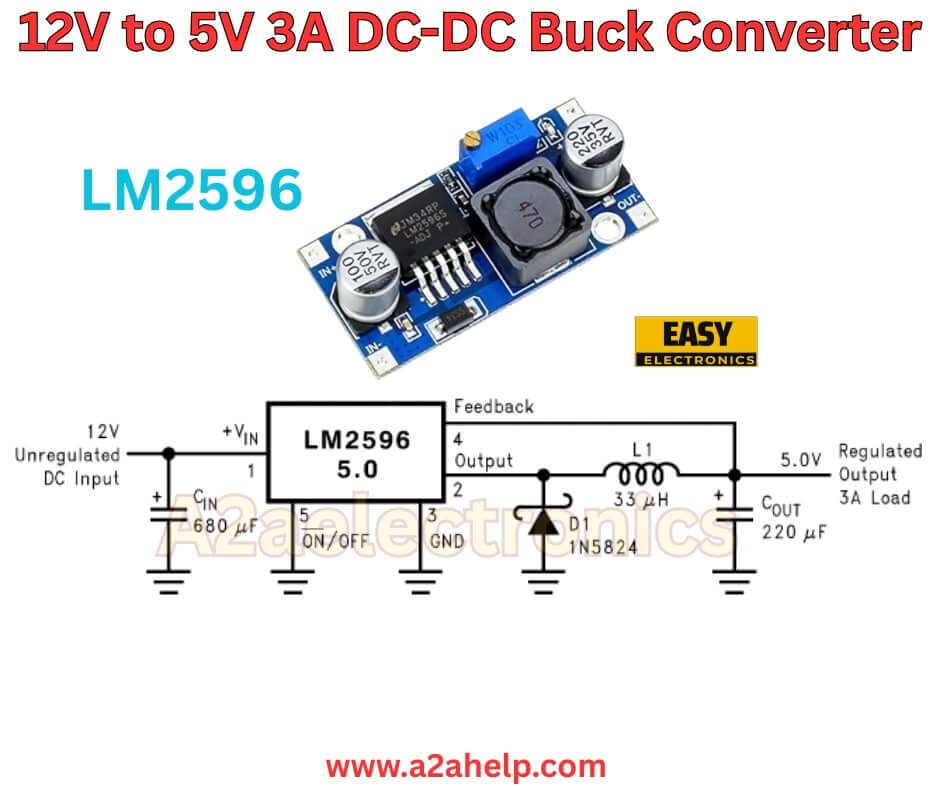

In this image, we’re dealing with a DC-DC buck converter designed for a 12V input and a 5V output at 3A. The LM2596 is the star here – it’s a monolithic IC from Texas Instruments that handles the switching at 150 kHz. That frequency keeps the external parts small. The schematic shows an unregulated 12V input, filtered by a big capacitor, going into the LM2596, then through an inductor and diode to the output cap for a clean 5V. It’s labeled as LM2596 5.0, which points to the fixed 5V version, but many modules use the adjustable one tuned to 5V with a pot, like the blue trimmer in the photo.
Why care? If you’re powering sensitive gadgets from a car battery or solar panel, this prevents voltage spikes from frying your stuff. Plus, it’s way more efficient than dropping resistors or old-school regulators.
Why Choose the LM2596 for Your Build?
The LM2596 stands out because it’s reliable, cheap, and easy to work with. It handles inputs from 4.5V to 40V, outputs up to 3A, and comes in fixed voltages like 5V or adjustable. From the datasheet, it has built-in protection like thermal shutdown and current limiting at around 4.5A, so it won’t blow up easily. Efficiency is solid – typically 80% at 12V in and 5V out at 3A, meaning less wasted power and cooler operation.
Compared to newer chips like the MP1584 (smaller but lower current), the LM2596 is forgiving for beginners. Modules cost under $5 online, and you can solder one up yourself for even less. In the image, the board is compact, about 43mm x 22mm, with screw terminals for easy connections. If you’re dealing with noisy power sources like automotive systems, this smooths things out nicely.
Breaking Down the Components in the Image
Let’s analyze what’s in the schematic and photo. The core is the LM2596 IC in a TO-220 package for heat dissipation. Pins: Vin (1) for input, Output (2) as the switch node, GND (3), Feedback (4) – not used much in fixed mode – and ON/OFF (5) for shutdown.
- Input Capacitor (Cin): Labeled 680µF 16V. This filters the input, handling ripple from the source. The datasheet recommends 470µF 50V for better voltage rating, but 680µF works if your input stays under 16V.
- Inductor (L1): Shown as 000 33µH. That’s likely a 33µH inductor, perfect for 5V at 3A – datasheet suggests 33µH for this setup to store and release energy without saturation.
- Catch Diode (D1): 1N5824, a Schottky diode for low forward drop. It handles current when the switch is off. Standard is a 5A 40V like 1N5825, but 1N5824 (probably a 3A variant) is common in modules. Use Schottky for efficiency.
- Output Capacitor (Cout): 220µF 250V? Wait, label says 220µF, but voltage might be typo – usually 35V. The datasheet calls for 330µF 35V to minimize output ripple.
- Other Bits: The photo has a blue pot, suggesting an adjustable version, but the schematic is fixed. No ON/OFF resistor shown, so it’s always on.
These parts keep the output stable, with ripple under 30mV typically. If building from scratch, grab them from Digi-Key or AliExpress.
How the Circuit Works: A Quick Explainer
Here’s the flow: 12V hits Cin for smoothing, enters LM2596 at Vin. The internal switch (pin 2) pulses at 150 kHz, sending current through L1 to charge it. When off, L1 discharges through D1 to Cout and the load, maintaining 5V. The feedback loop (internal for fixed) adjusts the duty cycle to hold the output steady. Efficiency comes from minimal losses, mostly in the diode and inductor resistance.
At 3A, expect about 80% efficiency: Input power is 5V*3A / 0.8 = 18.75W, so input current is around 1.56A at 12V. Heat from the chip is (1 1-efficiency) * output power, about 3W, so add a heatsink if the ambient is hot.
Step-by-Step Guide to Building Your Own
Ready to build? You can buy a pre-made module and tweak it, or solder on a perfboard. Here’s how for a custom one.
- Gather Parts: LM2596-5.0 (fixed), 33µH inductor (5A rated), 1N5822 diode (3A 40V Schottky), 470µF 50V Cin, 330µF 35V Cout, optional 0.1µF ceramics for extra filtering.
- Layout: Use a PCB or perfboard. Connect Vin to Cin positive, GND to negative. LM2596 pin 1 to Vin after Cin, pin 3 to GND. Pin 2 to one end of L1 and the cathode of D1 (anode to GND). The other end of L1 to Cout is positive and output. Cout negative to GND. Tie pin 5 to GND for always-on.
- Soldering Tips: Keep traces short, especially around D1 and L1, to cut noise. Add copper for heat sinking on pin 3.
- Testing: Power with 12V (no load first). Measure output – should be 5V ±4%. Add load (e.g., 1.67Ω resistor for 3A) and check for heat or dropout. Use a multimeter for ripple if you have a scope.
- Adjustable Variant: If using LM2596-ADJ, add resistors: R2 between feedback and output, R1 to GND. Vout = 1.23 * (1 + R2/R1). For 5V, R1=1kΩ, R2=3.1kΩ.
This matches the image’s setup closely, just with slight cap value tweaks for better performance.
Real-World Applications for This Converter
This 12V to 5V setup is versatile. In cars, power USB chargers or dash cams from the battery without draining it. For DIY projects, run microcontrollers from higher voltage sources like 12V adapters – think Arduino bots or LED strips. Solar setups benefit too: Step down panel output to charge 5V devices efficiently.
I’ve used similar for powering ESP32 boards in remote sensors; the low quiescent current (5mA) saves battery life. At 3A, you can drive multiple servos or motors without sagging voltage. Just ensure your input can supply the current – at 80% efficiency, 3A out needs about 1.9A in with overhead.
Efficiency, Heat, and Optimization
Efficiency peaks around 80-90% depending on load and parts. For 12V to 5V at 3A, calculate: η = (5*3) / (12 * I_in) * 100. Measure I_in to verify. Low efficiency? Check diode drop or inductor quality – better ones reduce losses.
Heat is key: LM2596 can hit 125°C shutdown. Add a heatsink if over 1A continuous, especially above 25°C ambient. Fan if needed. For better, use thicker PCB copper.
Safety First: What to Watch For
Don’t exceed 40V input or 3A out – current limit protects, but test gradually. Use fuses on the input. Watch polarity; reverse can fry the chip. For tantalum caps, pick surge-rated ones to avoid fires. Ground properly to avoid noise. If in a vehicle, add transient protection diodes.
Troubleshooting Common Problems
No output? Check connections, input voltage (needs >7V for 5V out). Hot chip? Reduce load or add a heat sink. Ripple high? Bigger court or check grounds. Voltage droops under load? Undersized inductor or bad diode – swap to match datasheet specs.
If efficiency sucks, measure drops: Diode should be <0.5V forward. Inductor resistance under 0.1Ω.
Wrapping It Up
This LM2596-based buck converter in the image is a solid, simple way to get reliable 5V from 12V. Whether you’re building from scratch or modding a module, it delivers efficiency and power without complexity. Experiment with it – tweak for different outputs if you want to make it adjustable. If you hit snags, double-check the datasheet and measure everything. You’ll end up with a trusty power supply for tons of projects. Let me know how yours turns out!
