Hey friend, if you’re into radio electronics like I am, building your own FM transmitter is a thrilling project that lets you broadcast audio over short distances. The schematic you shared, from a2help.com, is a straightforward design using a 2N2222 transistor for modulation and a BD139 for power amplification. It runs on just 6V and can transmit FM signals in the 88-108 MHz band to a nearby receiver. I’ve experimented with similar circuits, and they’re perfect for learning about RF without needing fancy equipment. With a good antenna, you might get a 50-100 meter range, depending on your location.
In this guide, I’ll analyze the circuit, list the parts, and explain how to assemble it. We’ll cover the basics of how it works, step-by-step building instructions, troubleshooting tips, and some upgrades to boost performance. This transmitter is low-power enough to avoid legal issues in most places (check your local regs), but always use it responsibly. Let’s get into it and start broadcasting!
Why Build an Easy High Power FM Transmitter?
There’s something magical about sending your voice or music through the airwaves with gear you built yourself. This circuit stands out for its simplicity—fewer than 15 parts—and it delivers decent power for a hobby setup. The “high power” label is relative; at about 100-500mW output, it’s stronger than basic one-transistor transmitters but not a commercial beast.
It’s great for personal uses like wireless mics, baby monitors, or streaming audio to an old radio. Efficiency is good on 6V (from batteries or a wall adapter), drawing around 100-200mA. For beginners, it’s an intro to FM modulation and tuning. If you’ve done crystal radios, this is a natural next step to the transmitting side. Plus, it’s cheap—under $10 if you scavenge—and a fun way to experiment with antennas and range.

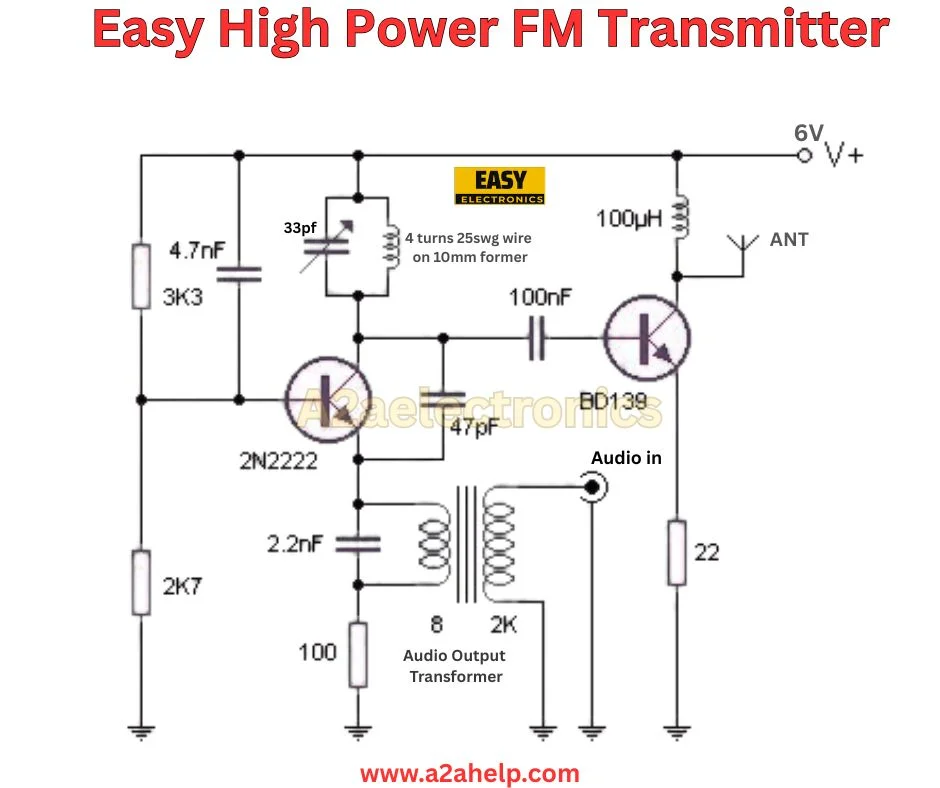

Breaking Down the Circuit Diagram
Let’s dissect the schematic section by section, as if we’re probing it with a multimeter. It’s a linear layout: Audio input left, modulator center, power amp, and antenna right.
Audio Input and Modulation Stage
Audio comes in from the left to the base of a 2N2222 NPN transistor via a 100-ohm resistor. The 2N2222 acts as a preamp and modulator, with its collector tied to a small audio transformer (8 ohm to 2K ohm). The transformer’s primary connects to +6V via a 2K resistor, and secondary to the modulator. A 2.2nF cap from base to ground filters noise, and a 2K7 resistor biases the base.
The modulation happens by varying the transistor’s current with audio, which shifts the oscillator frequency slightly for FM.
Oscillator Stage
The heart is the tuned circuit: A coil (4 turns of 25SWG wire on 10mm former) and a 33pF variable cap form the LC tank, setting the frequency. A 4.7nF cap couples from the coil to the BD139 base. The 2N2222 collector modulates this tank via the transformer, creating FM deviation.
Power Amplification and Output
The BD139 NPN transistor amplifies the RF signal. Its base gets the oscillated signal, emitter to ground via a 47pF cap and 22 ohm resistor for stability. Collector to +6V via a 100uH RFC (radio frequency choke) to block RF from supply. A 100nF cap bypasses the supply. The antenna taps off the collector for output.
Visually, the diagram is clean with coil note top, transistors center, antenna right. Total footprint small—fits on a stamp-sized board. No ICs, all discrete for easy debugging.
Full Components List for Your Build
Here’s a complete bill of materials based on the schematic. I’ve included values, types, and where to get them. Use this table to shop efficiently.
| Component | Value/Type | Quantity | Notes/Suggestions |
|---|---|---|---|
| Transistor Q1 | 2N2222 NPN | 1 | Modulator; general purpose, Digi-Key |
| Q2 | BD139 NPN | 1 | Power amp; TO-126 package, heatsink if needed |
| Capacitors: C1 | 2.2nF ceramic | 1 | Input filter |
| C2 | 4.7nF ceramic | 1 | Coupling |
| C3 | 33pF variable | 1 | Tuning; trimmer type from eBay |
| C4 | 47pF ceramic | 1 | Emitter bypass |
| C5 | 100nF ceramic | 1 | Supply bypass |
| Resistors: R1 | 2K7 ohm, 1/4W | 1 | Base bias |
| R2 | 100 ohm, 1/4W | 1 | Input |
| R3 | 2K ohm, 1/4W | 1 | Collector load |
| R4 | 22 ohm, 1/4W | 1 | Emitter |
| Coil L1 | 4 turns 25SWG on 10mm former | 1 | Enameled wire; air core |
| Inductor RFC | 100uH | 1 | RF choke; axial type |
| Transformer T1 | Audio, 8:2K ohm | 1 | From old radio or AliExpress |
| Antenna | Wire or telescopic | 1 | 1-2m length for better range |
| Power Supply | 6V DC | 1 | Battery or adapter |
| Perfboard/Wires | Small board | As needed | For assembly |
Verify polarities on caps if electrolytic (none here). Total cost $5-10.
How the Circuit Actually Works
Let’s follow the signal from the mic to the air, step by step.
- Audio Input: Signal from audio source enters 2N2222 base via 100 ohms. The transistor amplifies, collector current varies with the audio.
- Modulation: Varying the current through the transformer modulates the oscillator. Transformer secondary couples to the LC tank, shifting frequency slightly (deviation ~5-10kHz for voice).
- Oscillation: LC tank (coil + variable cap) generates carrier at ~100MHz. Tuned by cap for your frequency.
- Amplification: BD139 boosts RF power. Base gets modulated carrier, collector outputs to antenna via choke.
- Transmission: Antenna radiates an FM signal. The choke prevents RF from back into the supply, the caps filter.
Power from 6V, output ~100mW—enough for a room to block range. Efficiency ~30%, heat minimal.
Step-by-Step Guide to Building It
This is a quick build—1 hour max.
- Wind the Coil: On a 10mm tube, wind 4 turns of 25SWG wire. Space evenly, secure with tape.
- Assemble Modulator: Solder 2N2222, resistors R1/R2, cap C1. Connect the audio input.
- Add Transformer: Wire primary to 2N2222 collector and +6V via R3, secondary to LC.
- Tuning Section: Connect the coil to the variable cap, ground one end. Couple to BD139 base via C2.
- Power Amp: Solder BD139, emitter R4/C4 to ground, collector to choke and antenna.
- Testing: Power 6V. Tune cap to empty FM spot. Play audio—use the radio to receive. Adjust for clear sound, extend the antenna.
Avoid touching RF parts while on. Use insulated tools.
Troubleshooting Common Issues
No transmission: Check power (6V at transistors). Coil shorted? Rewind.
Weak range: Antenna short—extend. Signal weak? Closer to the receiver.
Distortion: Audio input high—add pot to reduce. Bias off—check resistors.
No modulation: Transformer wrong—swap windings.
Interference: Frequency overlap—retune cap.
Test with a multimeter for continuity, scope if available for RF.
Real-World Applications and Upgrades
Use for wireless audio link—mic to radio. Fun for kids learning radio.
Upgrades: Add mic preamp (LM386). Varicap for electronic tuning. Power boost with better transistor (2N3866 for 1W).
Reuse wire—green. Scale to VHF with a different coil.
Wrapping It Up: Broadcast Your Way
This easy high-power FM transmitter is a gem—simple and effective. With the schematic analyzed, you’re ready to build and transmit.
Try it, tune in, share what you broadcast—I’d love to know. Electronics like this spark curiosity. Happy transmitting!
