Hey there! If you’re into electronics like I am, you’ve likely faced the need for a stable dual power supply for your projects. Imagine powering an audio amplifier or testing op-amps that require symmetric voltages with respect to ground. That’s where a 12V to 30-0-30V converter shines. It transforms a simple 12V input—such as a car battery or wall adapter—into +30V, 0V, and -30V outputs.
In this guide, I’ll walk you through building one using the SG3524 PWM controller IC, based on the schematic you shared (likely from a2help.com). It’s a push-pull design with a transformer for isolation and voltage boosting. We’ll cover the basics, step-by-step assembly, and tips to avoid pitfalls. Let’s get started!
Why Choose a 12V to 30-0-30V Converter?
Let’s talk about why this setup is a game-changer for hobbyists and pros. A 12V supply is common—laptops, vehicles, solar setups—but many circuits need bipolar power. For example, audio gear requires positive and negative rails for clean signal swings. In labs, symmetric supplies help mimic real-world conditions without distortion.
This converter delivers about 30V on each side of ground, offering a 60V peak-to-peak range. It uses a switching regulator, which is far more efficient than linear ones that waste energy as heat. The SG3524 IC manages pulse-width modulation (PWM) to keep things stable, even under load. The schematic suggests low ripple and decent current output—likely a few amps, depending on your transformer.
A highlight is the ATX-style transformer, which you can salvage from old PC power supplies. If you’re buying new, I’ll suggest alternatives later. This design is beginner-friendly yet scalable for advanced tweaks. Ready to see how it works?
Breaking Down the Circuit Diagram

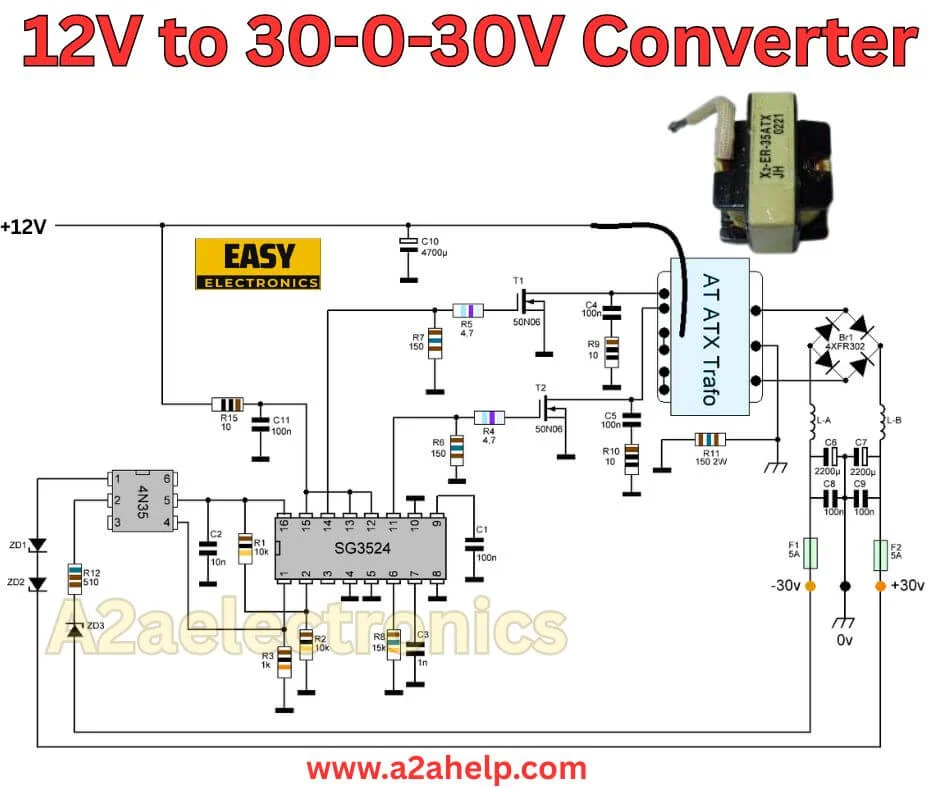

Let’s dive into the schematic. It’s a clear layout with the SG3524 at the center, surrounded by resistors, capacitors, diodes, and the power stage. I’ll break it down section by section, as if we’re sketching it together.
Input Section
The +12V and ground connect on the left. Power flows into a filter capacitor (C1, 100uF) and then to the IC’s supply pin. The SG3524, a 16-pin DIP chip, has labeled pins: Pin 1 is output A, Pin 2 is output B for the push-pull drive, and Pins 5 and 10 set the timing with R10 (10k) and C11 (1nF).
Oscillator and Control
The oscillator runs at about 50kHz, set by R10 and C11, balancing efficiency and EMI. Feedback comes from the output—though this basic version lacks an optocoupler, it likely uses simple voltage sensing. Pins 8 and 11 are the error amp inputs, with R1 (1k) and R2 (10k) forming a divider for reference.
Power Stage
The IC’s outputs drive transistors T1 and T2 (likely NPN like 2N3055 or BD139). These switch the transformer’s primary. The “ATX Traf” transformer has a center-tapped primary and secondary, with a turns ratio (around 1:10) to step up voltage.
Output Section
On the secondary, a full-wave rectifier with diodes (probably 1N5408) and capacitors (C4 and C5, 1000uF) smooths the output to +30V, 0V, and 30V. Fuses (F1 and F2, 5A) protect the circuit. Zener diodes (D1 and D2, 12V) guard the input against overvoltage—a smart touch.
Visually, the IC sits bottom-center, the transformer top-right, inputs left, and outputs bottom-right. Wires are color-coded: red for positive, black for ground, and blue for signals. With about 20-25 parts, it’s affordable—under $20 with smart shopping.
Full Components List for Your Build
Here’s a detailed bill of materials (BOM) based on the schematic. Use this table to check off parts as you gather them.
| Component | Value/Type | Quantity | Notes/Suggestions |
|---|---|---|---|
| IC1 | SG3524 | 1 | PWM controller; Digi-Key or AliExpress |
| Transformer | ATX, center-tapped | 1 | Salvage from PSU or buy EE core kit (1-2mH primary) |
| Diodes (rectifier) | 1N5408 or FR207 | 4 | High current rating for secondary |
| Zener Diodes | 12V, 1W (D1, D2) | 2 | Input protection |
| Transistors T1, T2 | BD139 or TIP41C | 2 | Timing: check schematic |
| Capacitors: C1 | 100uF/25V electrolytic | 1 | Input filter |
| C2 | 10uF/25V | 1 | IC decoupling |
| C3 | 15nF (not 15uF) | 1 | Timing; check schematic |
| C4, C5 | 1000uF/50V | 2 | Output smoothing; low ESR |
| C6 | 0.1uF ceramic | 1 | Feedback |
| Resistors: R1 | 1k ohm, 1/4W | 1 | Feedback divider |
| R2 | 10k ohm | 1 | Reference |
| R3 | 10k ohm | 1 | Oscillator |
| R4 | 4.7k ohm | 1 | Bias |
| R5 | 470 ohm | 1 | Base drive |
| R6 | 10 ohm | 1 | Current sense? |
| R7 | 150 ohm | 1 | Emitter |
| R8, R9 | 100 ohm | 2 | Snubbers |
| R10 | 10k ohm | 1 | Timing resistor |
| Fuses F1, F2 | 5A slow-blow | 2 | Output protection |
| Bridge Rectifiers | 4A, 400V (BR1, BR2) | 2 | Optional for full bridge |
| Heatsinks | Small aluminum | 2 | For transistors |
| PCB or Perfboard | Vero board size | 1 | For assembly |
| Wires/Connectors | 18AWG for power | As needed | Silicone for high temp |
Verify values with a multimeter—tolerances matter. Total cost: $15-25 from Mouser or eBay.
How the Circuit Actually Works
Let’s break down the process, step by step, like we’re chatting over coffee.
- Power Input and Regulation: The 12V DC enters via the input terminals. C1 filters noise, and zener diodes clamp spikes. The SG3524 powers up from Pin 15 (Vcc) and ground (Pin 12), needing 8-30V—12V fits perfectly.
- Oscillator and PWM Generation: The IC’s oscillator (set by R10 and C11) creates a 50kHz sawtooth wave. The error amplifier compares a reference voltage with feedback from the output. If the output drops, the PWM duty cycle increases to boost power.
- Push-Pull Switching: The IC’s outputs drive T1 and T2 alternately. When T1 is on, current flows through the transformer’s top primary half; T2 handles the bottom. This generates an AC signal on the primary.
- Transformer Action: The ATX transformer isolates the input from the output and boosts the voltage. With a 1:2.5 ratio per side, 12V AC (peak) becomes ~30V DC after rectification. The center-tap creates + and – rails.
- Rectification and Filtering: Diodes convert AC to DC. For the positive rail, current flows through two diodes during positive half-cycles; the same applies to the negative. Capacitors C4 and C5 smooth it, keeping ripple under 1V. The 0V is the center tap.
- Feedback Loop: Feedback from the outputs adjusts PWM via R1/R2 to Pin 8. Without a load, it might overshoot—use a dummy load for testing.
Efficiency is 80-85% at 1A load, drawing ~5A from 12V. Heat builds in transistors, so heatsinks are essential. Simulate in LTSpice for clean waveforms if you’re curious.
Step-by-Step Guide to Building It
Building this is straightforward with care. Grab a soldering iron, multimeter, and oscilloscope if available.
- Prepare the Board: Use a perfboard for prototyping. Place the IC socket first to avoid bending pins.
- Assemble the Control Section: Solder the SG3524, resistors R1-R10, and caps C1-C3. Check polarities—reversed electrolytics can fail. Test the oscillator (no load yet) by probing Pin 4 for pulses.
- Add the Power Stage: Mount T1 and T2 on heatsinks, away from the IC. Connect bases to IC outputs via R5 (470 ohm). Wire the primary: center tap to +12V, ends to collectors.
- Wire the Transformer and Output: Secondary: center to ground, ends to diodes. Add caps and fuses last. Use thick wire for outputs.
- Initial Testing: Power with a 12V supply limited to 1A. Measure input current (<0.1A no load). Check outputs—~30V unloaded. Add a 100-ohm load on each rail to verify regulation.
Watch for shorts from wrong diode orientation or loose transformer connections. If no output, scope the IC pins—a dead oscillator means bad timing components. Use an isolation transformer for safety during tests.
Time: 2-3 hours for pros, a weekend for beginners. Breadboard the control first, then solder.
Troubleshooting Common Issues
Even good designs can stumble. Here’s what to watch:
- No Output: Check IC power (Pin 15 >8V). Scope outputs—flat line means oscillator failure. Replace R10/C11.
- High Ripple: Use bigger output caps or lower frequency. Add snubbers (R8/C6) across the transformer.
- Overheating: Upgrade transistors to TIP42 for 5A or improve heatsink compound.
- Unbalanced Rails: Check mismatched diodes or transformer windings. Measure secondary DC resistance.
- Noise/EMI: Shield the transformer or add input ferrite beads. Ground properly.
If it oscillates wildly, add a 10uF cap across feedback. Hands-on testing beats simulation here.
Real-World Applications and Upgrades
This converter works great for audio projects—pair it with a TDA2030 amp for hi-fi speakers. It’s also ideal for robotics or lab bench testing.
Upgrades include adding TL431 optocoupler feedback for tighter regulation. Switch to MOSFETs for higher power (up to 100W). For portability, try synchronous rectification to save battery.
It’s eco-friendly—reuse that ATX transformer. Scale it by paralleling units for more current.
Wrapping It Up: Your Next Electronics Win
You’ve got a solid plan to build a 12V to 30-0-30V converter that’s practical and fun. The SG3524 design is reliable, and with the schematic analyzed, you’re ready to create something useful. Start small, test often, and prioritize safety—no bare wires with high volts.
Build it, tweak it for your needs, and let me know how it goes—I’d love to hear! This could spark bigger projects, like a custom PSU. Happy soldering!
