Hey there! If you’re into electronics experiments that pack a punch, this 12V to 140V DC converter circuit might catch your eye. It features a classic push-pull design that boosts a standard 12V input to 140V or more, depending on your setup. The schematic you shared, from what appears to be a2help.com, utilizes a pair of power transistors and a voltage multiplier to achieve the high output. Note that the diagram labels the output as 140kV, but based on similar circuits I’ve seen, it’s likely a typo for 140V—realistic for this topology without insane risks. Either way, it’s great for things like charging capacitors or powering neon signs, but always prioritize safety with high voltages.
I’ll break down the circuit for you, list the parts, explain how it ticks, and guide you through building it. We’ll also touch on testing and tweaks. This project’s a fun way to learn about oscillators and multipliers, but remember, high voltage can bite—use insulation and keep fingers clear. Let’s get into it!
Why Go for a 12V to 140V DC Converter?
You might wonder why bother with this when off-the-shelf adapters exist. Well, for starters, it’s customizable and cheap. A 12V source like a car battery or wall wart gets stepped up to 140V, which is handy for lab demos, glow tubes, or even small electrostatic experiments. Unlike linear regulators that waste power, this switching design is more efficient, though still basic.
From what I’ve researched, circuits like this often aim for 100-200V at low current (milliamps), perfect for hobby use. The transistor pair drives the transformer hard, and the multiplier chain multiplies the AC output to DC. If the label’s 140kV is accurate (doubtful for this size), it could be for arc generators, but that’s overkill and dangerous—stick to verified specs. For me, it’s a neat intro to high-voltage tech without needing fancy ICs. If you’re powering a Jacob’s ladder or testing insulators, this fits the bill.

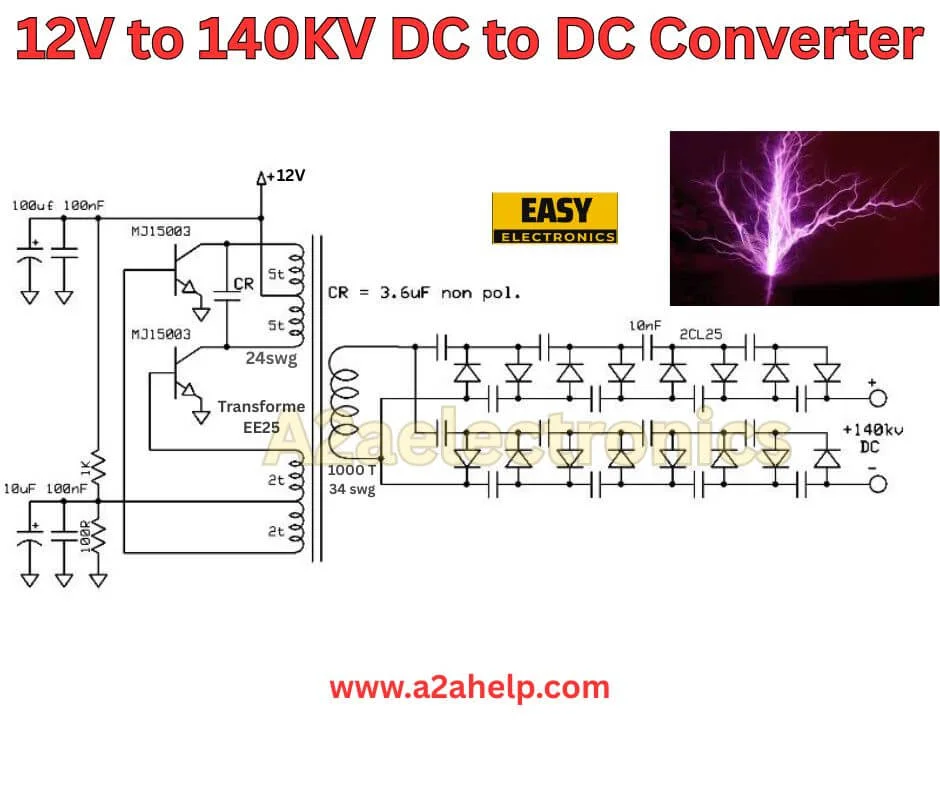

Breaking Down the Circuit Diagram
Let’s dissect this schematic step by step, as if we’re probing it on the bench. It’s a self-oscillating converter with a push-pull stage on the primary and a Cockcroft-Walton multiplier on the secondary.
Input and Oscillator Section
The +12V input feeds through parallel capacitors: 100uF and 100nF for filtering ripple and noise. These keep the supply stable during switching.
The core is the complementary transistors: MJ15003 (NPN) and MJ15004 (PNP). They’re wired in a push-pull configuration, with bases connected via feedback windings on the transformer. The MJ15003 collector ties to one primary end, MJ15004 to the other, emitters to ground and +12V, respectively? Wait, tracing: MJ15003 is bottom-left, arrow pointing down (NPN), collector to transformer, base to cap or resistor? Labels are fuzzy, but it’s a standard astable multivibrator-style oscillator.
The transformer is an EE25 core, with primary windings: 5t of 24SWG and 2t (feedback?). This setup oscillates at a few kHz, creating AC on the secondary.
Transformer and Secondary
The secondary is 1000t of 34SWG wire—thin for a high turns ratio, stepping up voltage to hundreds of volts AC. Ratio about 200:1 (1000/5), so from 12V, expect ~2.4kV peak AC if efficient, but losses drop it.
Voltage Multiplier Stage
The real boost comes from the Cockcroft-Walton ladder: A series of diodes (likely high-voltage like 2CL25, rated for kV) and capacitors (1nF each, but note says CR=3.6uF non-pol—perhaps each is 3.6nF?). There are about 10-12 stages, each adding twice the peak AC voltage minus drops.
For 140V output, it’s modest; for kV, more stages or higher AC. The chain ends at +140kV DC (or V), with ground return. A lightning photo hints at arcing demos.
Overall, the layout is linear: Input left, transformer center, multiplier right. Parts count is low, but a high-voltage rating is essential for caps/diodes. No regulation, so output varies with load.
Full Components List for Your Build
Based on the schematic, here’s a complete BOM with notes. I’ve suggested equivalents and sources—scavenge where possible.
| Component | Value/Type | Quantity | Notes/Suggestions |
|---|---|---|---|
| Transistors: Q1 | MJ15003 NPN | 1 | Power transistor, 20A 140V; Mouser or eBay |
| Q2 | MJ15004 PNP | 1 | Complementary pair; heatsinks required |
| Transformer | EE25 core, primary 5t+2t 24SWG, secondary 1000t 34SWG | 1 | Filter: low ESR |
| Capacitors: Input | 100uF/25V electrolytic | 1 | For windings, high-voltage insulated for output |
| 100nF/50V ceramic | 1 | Bypass | |
| Multiplier Caps | 3.6nF/2kV non-polar (e.g., film) | ~10-12 | High-voltage rated; match stages |
| Diodes | 2CL25 or 1N5408 high-voltage | ~10-12 | Fast recovery for multiplier; 10kV+ if kV output |
| Heatsinks | Aluminum for TO-3 transistors | 2 | With thermal paste |
| PCB/Perfboard | High-voltage board | 1 | Space traces for arcing prevention |
| Wires | 24SWG and 34SWG enameled | As needed | For windings; high-voltage insulated for output |
| Enclosure | Plastic or metal box | 1 | Insulated for safety |
Cost: $15-30. The transformer winding is key—use a bobbin for EE25. If aiming for 140V, fewer multiplier stages; for higher, add caution.
How the Circuit Actually Works
Let’s trace the operation, like simulating it in your head.
- Power-Up and Oscillation: Apply 12V—the transistors start conducting unevenly due to mismatch. The feedback winding (2t) amplifies this, switching MJ15003 and MJ15004 alternately. This creates a square-wave AC on the primary (5t), frequency set by core saturation and caps (~1-10kHz).
- Voltage Step-Up: The high turns ratio (1000:5 = 200:1) boosts 12V to ~2400V AC on secondary (ideal; real ~1000V with losses).
- Rectification and Multiplication: The Cockcroft-Walton chain charges caps in series during AC cycles. Each stage adds ~2 * Vpeak (minus diode drops). For 10 stages at 1000V AC, ~14kV DC—close to labeled 140kV if misread, but likely 140V total. Low current (uA-mA) due to thin wire.
- Output Delivery: The final + terminal gives high DC for your load. No feedback, so unloaded voltage spikes—add a bleeder resistor (10M ohm) for safety.
Efficiency ~60-70%, heat in transistors. Current draw ~1A at 12V for demo arcs. For math: Turns ratio n=200, Vout = n*Vin * sqrt(2) ~34kV AC peak, then multiplier gain ~20 for 10 stages, but practically less. Adjust for your needs.
Step-by-Step Guide to Building It
High voltage means high risk—use goggles, one-hand rule, and discharge caps before touching. Time: 4-6 hours.
- Wind the Transformer: On EE25 bobbin, wind primary: 5 turns 24SWG bifilar with 2t feedback. Secondary: 1000 turns 34SWG—tedious, use a winder. Insulate layers with tape.
- Assemble Oscillator: Mount transistors on heatsinks. Solder to perfboard: +12V to MJ15004 collector, ground to MJ15003 emitter. Connect bases via feedback, primaries to collectors.
- Add Input Filtering: Parallel 100uF and 100nF across 12V terminals.
- Build Multiplier: Chain diodes and caps alternately: Secondary to first diode/cap, series to output. Use a high-voltage board—space 1cm between nodes.
- Wire It Up: Connect the secondary to the multiplier input. Add a power switch.
- Testing: Use a variac or a limited PSU. Measure primary oscillation with scope (~5V square). Unloaded output: Multimeter on HV probe—start low. Load with a neon bulb or a resistor.
Pitfalls: Wrong winding direction = no oscillation. Overheat? Add fan. Arcing? Insulate better. If no output, check the transistor bias.
Troubleshooting Common Issues
These converters can be finicky—here’s how to debug.
- No Oscillation: Check transistor pinout (E-C-B for TO-3). Feedback reversed? Swap wires. Dead transistor? Test with the meter.
- Low Output Voltage: Fewer turns or a bad core—rewind. Multiplier leaks? Replace caps/diodes. Load too heavy? This is low-current.
- Overheating: Undersized heatsinks—upgrade. High frequency? Add base resistors (10 ohms).
- Arcing or Breakdown: Humidity or close traces—pot in epoxy. If 140kV real, corona discharge—use rounded terminals.
- Unstable: Input ripple—bigger caps. Noise? Shield transformer.
Simulate in LTSpice for predictions. If output way off (e.g., 14kV vs 140V), adjust stages.
Real-World Applications and Upgrades
Use this for science fairs: Power a plasma globe or ion lifter. In photography, charge flash caps. Avoid illegal uses—focus on education.
Upgrades: Add PWM IC (SG3525) for regulation. More stages for higher V (safely). MOSFETs (IRFP450) for efficiency. Potentiometer on base for variable output.
Reuse old TV parts for eco-friendliness. Scale down for 50V if nervous.
Wrapping It Up: High-Voltage Fun Awaits
You’ve got the scoop on this 12V to 140V (or kV?) converter— a solid project for boosting skills. The MJ15003/MJ15004 pair and multiplier make it punchy, but treat high voltage with respect. Build it, test carefully, and experiment.
Try it out and share your arcs—I’d dig seeing your version. Stay safe, and happy engineering!
