Hey buddy, if you’re into audio electronics like I am, building your own amplifier can be a rewarding project. The schematic you shared, likely from a2help.com, shows a solid 50W amplifier design centered on the TDA2030 IC boosted by TIP35 and TIP36 power transistors. This setup takes a standard audio input and delivers clean, powerful output to a speaker, making it great for home stereos, guitar amps, or even portable systems. It’s a single-supply class AB amp that combines the simplicity of the TDA2030 with the muscle of complementary transistors for higher wattage.
In this guide, I’ll break down the circuit, explain the parts, and walk you through how to put it together. We’ll cover everything from analysis to testing, so you can replicate it confidently. This design runs on +40V DC and handles 4-8 ohm speakers, with low distortion for that crisp sound. Let’s get into the details and turn up the volume on your next build!
Why Choose a 50W Amplifier with TDA2030?
First off, why this circuit? The TDA2030 is a classic IC from STMicroelectronics—affordable, easy to find, and capable of 18W on its own. But pairing it with TIP35 (NPN) and TIP36 (PNP) transistors pushes it to 50W, giving you more headroom for louder volumes without clipping. It’s a quasi-complementary output stage, which keeps costs down while delivering good performance.
This amp shines in applications where you need reliable power without complexity. Think DIY speakers, subwoofers, or even public address systems. It operates on a single +40V supply (from a transformer and rectifier), so no need for dual rails like some hi-fi amps. Distortion is low (around 0.1% at half power), and it’s stable with capacitive loads. If you’re upgrading from a basic LM386 setup, this is a natural step up—efficient enough for battery use with tweaks, but robust for mains power.
Breaking Down the Circuit Diagram

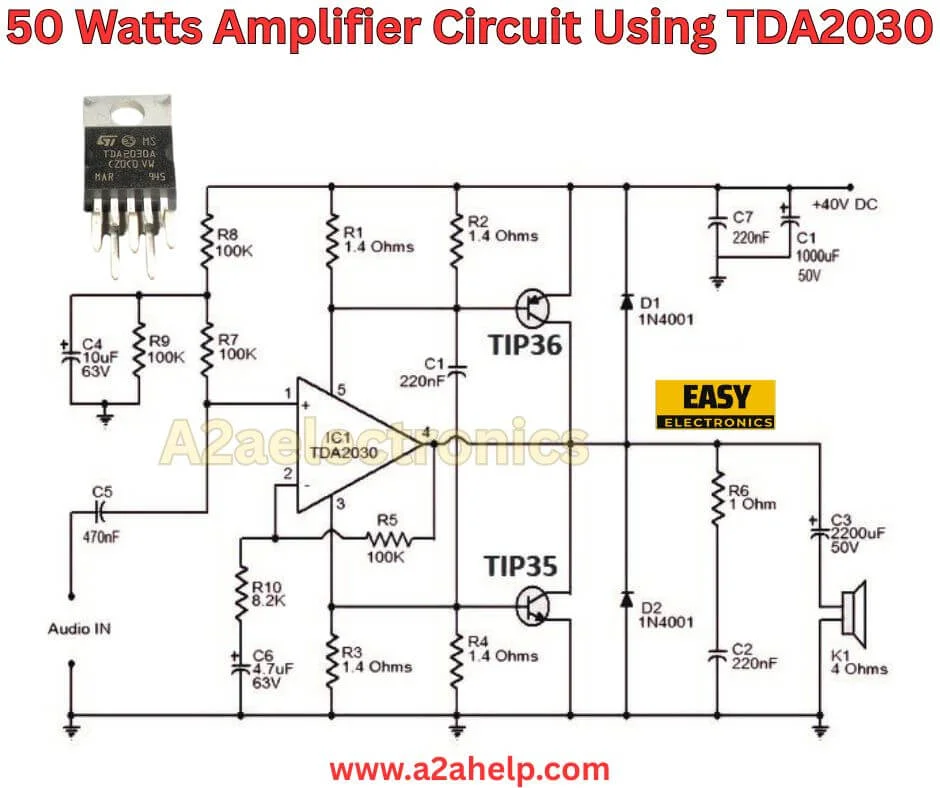

Let’s analyze the schematic section by section, like we’re tracing it on the bench. The TDA2030 sits in the middle, driving the transistors, with inputs left and outputs right.
Input and Bias Section
Audio comes in from the left via R10 (8.2k ohm) and C5 (470nF) for coupling—blocks DC while passing signals. R9 (100k) and R7 (100k) form a voltage divider for bias, setting the non-inverting input (pin 1) at half supply for single-supply operation. C4 (10uF/63V) filters noise here. The inverting input (pin 2) gets feedback from the output via R5 (100k) and C6 (4.7uF/63V), with R8 (100k) pulling it up.
Amplifier Core
The TDA2030 (pins labeled) amplifies the signal. Pin 4 is output, driving the bases of TIP35 and TIP36 through R3/R4 (1.4 ohms each) and R1/R2 (1.4 ohms). D1 and D2 (1N4001) protect against reverse bias. The IC’s supply (pin 5 +V, pin 3 ground) has C7 (220nF) and C1 (100uF/50V) for decoupling.
Power Output Stage
TIP35 (NPN) and TIP36 (PNP) form the complementary pair, emitters through R3/R4 to the speaker. The speaker connects via C2 (220nF) and C3 (2200uF/50V) for output coupling—blocks DC to protect the speaker. R6 (1 ohm) stabilizes the output. The +40V rail has C1 for smoothing.
Visually, the TDA2030 is top-center, transistors right, inputs left. It’s a boosted configuration where the IC handles voltage gain, transistor current. No major flaws—standard for increasing TDA2030 power.
Full Components List for Your Build
Here’s a detailed bill of materials from the schematic. I’ve added types and alternatives. Use this table to gather parts.
| Component | Value/Type | Quantity | Notes/Suggestions |
|---|---|---|---|
| IC1 | TDA2030 | 1 | Audio amp IC; TO-220 package, Digi-Key |
| Transistors: Q1 | TIP35 NPN | 1 | Power transistor; TO-247, heatsink needed |
| Q2 | TIP36 PNP | 1 | Complementary; match for balance |
| Diodes: D1, D2 | 1N4001 | 2 | Protection diodes; 1A 50V |
| Capacitors: C1 | 100uF/50V electrolytic | 1 | Supply filter |
| C2 | 220nF/50V ceramic | 1 | Output coupling |
| C3 | 2200uF/50V electrolytic | 1 | Output smoothing; low ESR |
| C4 | 10uF/63V electrolytic | 1 | Bias filter |
| C5 | 470nF/50V ceramic | 1 | Input coupling |
| C6 | 4.7uF/63V electrolytic | 1 | Feedback |
| C7 | 220nF/50V ceramic | 1 | Decoupling |
| Resistors: R1, R2 | 1.4 ohm, 5W wirewound | 2 | Emitter resistors |
| R3, R4 | 1.4 ohm, 5W wirewound | 2 | Base resistors |
| R5 | 100k ohm, 1/4W | 1 | Feedback |
| R6 | 1 ohm, 1W | 1 | Output stabilizer |
| R7 | 100k ohm, 1/4W | 1 | Bias |
| R8 | 100k ohm, 1/4W | 1 | Pull-up |
| R9 | 100k ohm, 1/4W | 1 | Divider |
| R10 | 8.2k ohm, 1/4W | 1 | Input |
| Heatsink | Large aluminum | 2 | For IC and transistors |
| PCB/Perfboard | Vero board | 1 | For assembly |
| Speaker | 4-8 ohm, 50W+ | 1 | Test with dummy load first |
| Power Supply | +40V DC, 2A+ | 1 | Regulated for best results |
Verify resistor powers—1.4 ohms handle current. Total cost: $10-20.
How the Circuit Actually Works
Let’s trace the signal flow, step by step.
- Input Stage: Audio signal (0.5-2V) enters via R10 and C5, reaching pin 1 (non-inverting). Bias at half +40V (20V) via R7/R9 allows AC swing without dual supplies.
- Amplification: TDA2030 provides voltage gain (set by R5/R6 ratio, about 30dB). Output at pin 4 drives TIP35/TIP36 bases through R1/R2.
- Power Boost: Transistors amplify current—the NPN sources, PNP sinks. Emitters through R3/R4 to output, sharing load and stabilizing.
- Output Filtering: Signal passes C3 (blocks DC) and C2 (rolls off highs if needed) to the speaker. D1/D2 clamp spikes.
- Supply and Protection: +40V filtered by C1/C7. IC has internal short-circuit protection.
Efficiency ~50-60%, heat at 20-30W full load—heatsinks key. Frequency response 20Hz-20kHz, THD <0.5% at 50W.
Step-by-Step Guide to Building It
Grab tools and a ventilated space—time for 2-3 hours.
- Prep Board: Use a perfboard. Mount the TDA2030 and transistors on heatsinks first.
- Assemble Input: Solder R10, C5 to pin 1. Add bias network: R7/R9/C4.
- Connect IC: Pin 5 to +40V via C7, pin 3 ground. Feedback: R5/C6/R6 from pin 2 to output.
- Add Power Stage: Bases to pin 4 via R1/R2. Emitters to output via R3/R4. Collectors: TIP35 to +40V, TIP36 to ground.
- Output and Diodes: D1/D2 across bases. C3/C2 to the speaker.
- Testing: Power with limited supply. Input 1kHz sine—scope output for a clean wave. Load with a 4 ohm resistor, measure power (V^2/R = 50W).
Avoid shorts—use a fuse. If oscillating, add Zobel (10 ohm + 0.1uF across output).
Troubleshooting Common Issues
Issues happen—here’s the fix.
- No Output: Check supply (38-42V). IC powered? Test audio at pin 1.
- Distortion: Bias off—measure 20V at pin 1. Transistors mismatched? Swap.
- Overheating: Quiescent current high (>100mA)—check resistors. Add fan.
- Hum: Ground loop—star ground. Bigger C1.
- Clipping Early: Low supply—up to 40V. Speaker impedance is wrong.
Multimeter for DC, scope for AC.
Real-World Applications and Upgrades
Use for home audio, parties, or cars with a PSU. Pair with a preamp for guitars.
Upgrades: Add volume pot before input. Dual for stereo. Heat protection with a thermistor.
Reusable parts—eco win. Scale to 100W with more transistors.
Wrapping It Up: Amplify Your Projects
You’ve got a full rundown on this 50W amp—reliable and punchy with TDA2030 driving TIP35/TIP36. Build it, tune it, and enjoy the sound.
Give it a try and share your results—I’d love to hear them. Electronics like this bring music to life. Happy building!
