If you’re a radio enthusiast or a beginner in electronics looking to dive into the world of AM radio, building a simple AM receiver circuit is a fantastic starting point. In this article, we’ll explore a minimalistic AM receiver circuit using the AC128 transistor—a classic component for radio projects. This easy-to-build circuit can pick up AM signals and let you listen through a 200-ohm headphone. Let’s break down the circuit, understand how it works, and guide you through the steps to build your own AM radio receiver.
What Is an AM Receiver Circuit?
An AM (Amplitude Modulation) receiver circuit is an electronic setup designed to capture AM radio signals, demodulate them, and convert them into audio that you can hear through a speaker or headphone. AM radio signals carry audio information by varying the amplitude of a carrier wave, and this circuit extracts that audio for playback. The design we’ll discuss uses the AC128 transistor, a germanium PNP transistor, to amplify and detect the AM signal, making it a great project for learning the basics of radio electronics.

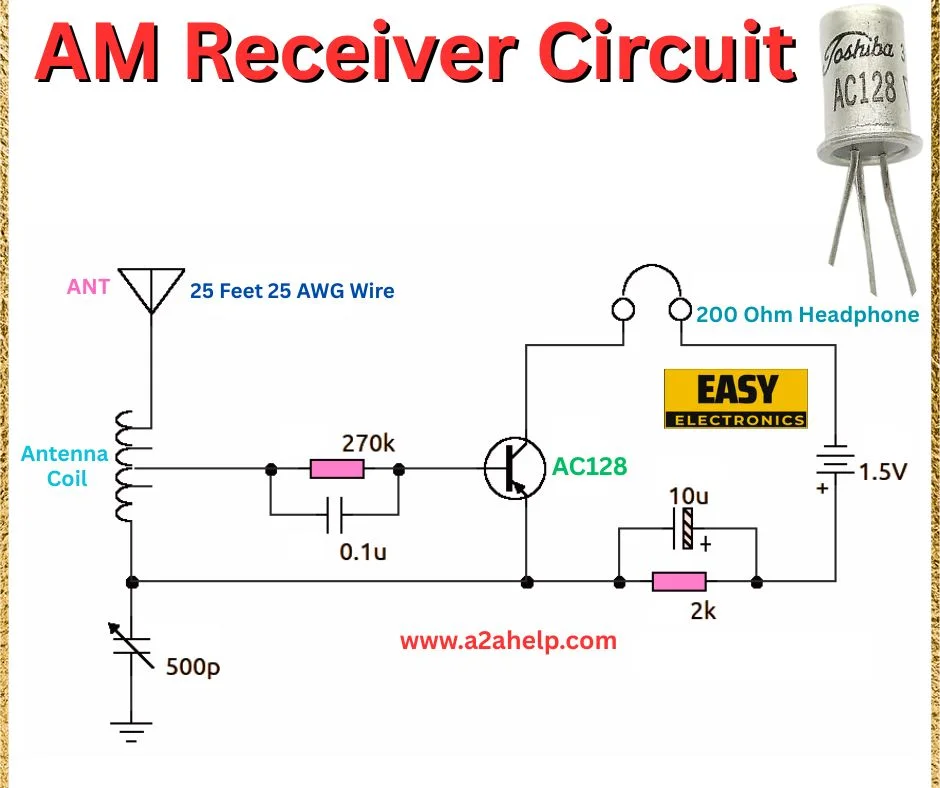

Understanding the Circuit Components
Let’s take a closer look at the components in this AM receiver circuit:
- AC128 Transistor: The AC128 is a germanium PNP transistor used here as both a detector and an amplifier. It demodulates the AM signal and amplifies the audio output.
- Antenna (25 Feet, 25 AWG Wire): A 25-foot-long wire acts as the antenna to capture AM radio signals. The wire gauge (25 AWG) ensures flexibility and adequate signal reception.
- Antenna Coil: The antenna coil, paired with a 500 pF capacitor, forms a tuned circuit to select the desired AM frequency.
- Capacitors (0.1 µF and 10 µF): The 0.1 µF capacitor filters the RF signal, while the 10 µF capacitor smooths the audio output to the headphone.
- Resistors (270K and 2K): The 270K resistor biases the AC128 transistor, while the 2K resistor limits the current through the headphone.
- 200 Ohm Headphone: A 200-ohm headphone is used to listen to the demodulated audio signal.
- Power Supply (1.5V): A 1.5V battery powers the circuit, suitable for the low-voltage operation of the AC128 transistor.
How Does the AM Receiver Circuit Work?
This AM receiver circuit operates on a simple principle: it tunes into an AM radio frequency, detects the signal, and converts it into audio. Here’s a step-by-step explanation of its operation:
- Signal Reception: The 25-foot antenna captures AM radio signals. The antenna coil and 500 pF capacitor form a parallel LC (inductor-capacitor) circuit, which resonates at a specific frequency within the AM band (typically 530–1610 kHz). This tuned circuit selects the desired station.
- Signal Detection with AC128: The AC128 transistor acts as a detector. The AM signal is fed into the base of the transistor through the tuned circuit. The transistor demodulates the signal by rectifying the AM waveform, extracting the audio component.
- Biasing the Transistor: The 270K resistor provides the necessary bias to the base of the AC128 transistor, ensuring it operates in the correct region for signal detection and amplification.
- Audio Amplification: The AC128 also amplifies the demodulated audio signal. The 0.1 µF capacitor filters out any remaining RF components, leaving only the audio signal.
- Output to Headphone: The audio signal passes through the 10 µF capacitor, which blocks DC while allowing the audio to reach the 200-ohm headphone. The 2K resistor limits the current to the headphone, protecting both the headphone and the transistor.
Step-by-Step Guide to Building the AM Receiver Circuit
Building this AM receiver circuit is a fun and educational project that requires minimal components and basic tools. Here’s how you can assemble it:
Materials Needed
- AC128 germanium PNP transistor
- 25 feet of 25 AWG wire (for the antenna)
- Antenna coil (can be wound on a ferrite core or purchased as an AM loop coil)
- Capacitors: 500 pF, 0.1 µF, 10 µF
- Resistors: 270K, 2K
- 200-ohm headphone
- 1.5V battery (e.g., AA battery)
- Breadboard or PCB for assembly
- Connecting wires
- Soldering iron and solder (if using a PCB)
Assembly Steps
- Set Up the Antenna: Use 25 feet of 25 AWG wire as your antenna. Stretch it out in a straight line or loop it for better reception. Connect one end to the antenna coil.
- Build the Tuned Circuit: Connect the antenna coil in parallel with the 500 pF capacitor. This LC circuit determines the frequency you’ll tune into. Connect one end of the tuned circuit to ground.
- Place the AC128 Transistor: Identify the emitter, base, and collector pins of the AC128 transistor (refer to the AC128 datasheet if needed). Connect the base to the tuned circuit through the 0.1 µF capacitor. The emitter connects to the positive terminal of the 1.5V battery.
- Add the Bias Resistor: Connect the 270K resistor between the base of the AC128 and ground to bias the transistor properly.
- Connect the Headphone: Connect the 200-ohm headphone in series with the 2K resistor and the 10 µF capacitor. The capacitor connects to the collector of the AC128, and the other end of the headphone connects to ground.
- Power the Circuit: Connect the 1.5V battery. The positive terminal goes to the emitter of the AC128, and the negative terminal goes to ground.
- Test the Circuit: Put on the headphone and adjust the antenna position. You may need to fine-tune the coil or capacitor to pick up a clear AM station. Moving the antenna or adjusting its orientation can improve reception.
Applications of the AM Receiver Circuit
This simple AM receiver circuit is perfect for:
- Learning Electronics: It’s an excellent project for beginners to understand tuned circuits, transistor operation, and AM signal demodulation.
- Emergency Radios: Use it to listen to AM broadcasts during power outages or emergencies.
- Hobby Projects: Incorporate it into larger radio projects or experiment with different antenna designs.
Advantages of This Circuit Design
- Minimal Components: The circuit uses just a handful of parts, making it affordable and easy to assemble.
- Low Power: It runs on a 1.5V battery, ideal for portable applications.
- Educational Value: It teaches fundamental concepts of radio electronics, such as tuning and signal detection.
- No External Power Supply Needed: The 1.5V battery is sufficient, eliminating the need for complex power regulation.
Tips for Optimizing and Troubleshooting
- Tuning Issues: If you can’t pick up any stations, adjust the antenna coil or the 500 pF capacitor to change the resonant frequency. You can also try a variable capacitor (e.g., 365 pF tuning capacitor) for easier tuning.
- Weak Signal: Extend or reposition the antenna for better reception. AM signals are sensitive to interference, so avoid placing the circuit near electronic devices.
- No Sound in Headphone: Check the AC128 transistor for proper connections—germanium transistors are sensitive to incorrect biasing. Ensure the headphone is functional and has the correct impedance (200 ohms).
- Battery Voltage: If the sound is distorted, verify the battery voltage. A weak battery (below 1.2V) can affect performance.
Conclusion
Building a simple AM receiver circuit with the AC128 transistor is a rewarding project that brings the magic of radio to life. With just a few components, you can tune into AM broadcasts and listen to your favorite stations through a headphone. This circuit is not only a great introduction to electronics but also a stepping stone to more advanced radio projects. Whether you’re a student, hobbyist, or curious learner, this AM receiver is a fun way to explore the world of wireless communication.
