Are you an electronics enthusiast looking to build a simple AM radio receiver from scratch? In this comprehensive guide, we’ll walk you through the process of constructing a basic AM radio receiver circuit using minimal components. This project is perfect for beginners and hobbyists who want to explore the fundamentals of radio frequency (RF) circuits and enjoy the satisfaction of tuning into AM broadcasts. Let’s dive into the circuit, analyze its components, and provide you with a step-by-step guide to get your AM radio up and running!
What is an AM Radio Receiver?
An AM (Amplitude Modulation) radio receiver picks up radio signals in the AM frequency band (typically 530 kHz to 1710 kHz) and converts them into audible sound. The circuit we’re analyzing is a straightforward design that uses a tuned circuit to select the desired frequency, a detector to extract the audio signal, and an amplifier to drive a speaker. This project is a great way to learn about RF circuits, transistor amplification, and signal demodulation.
Understanding the AM Radio Receiver Circuit

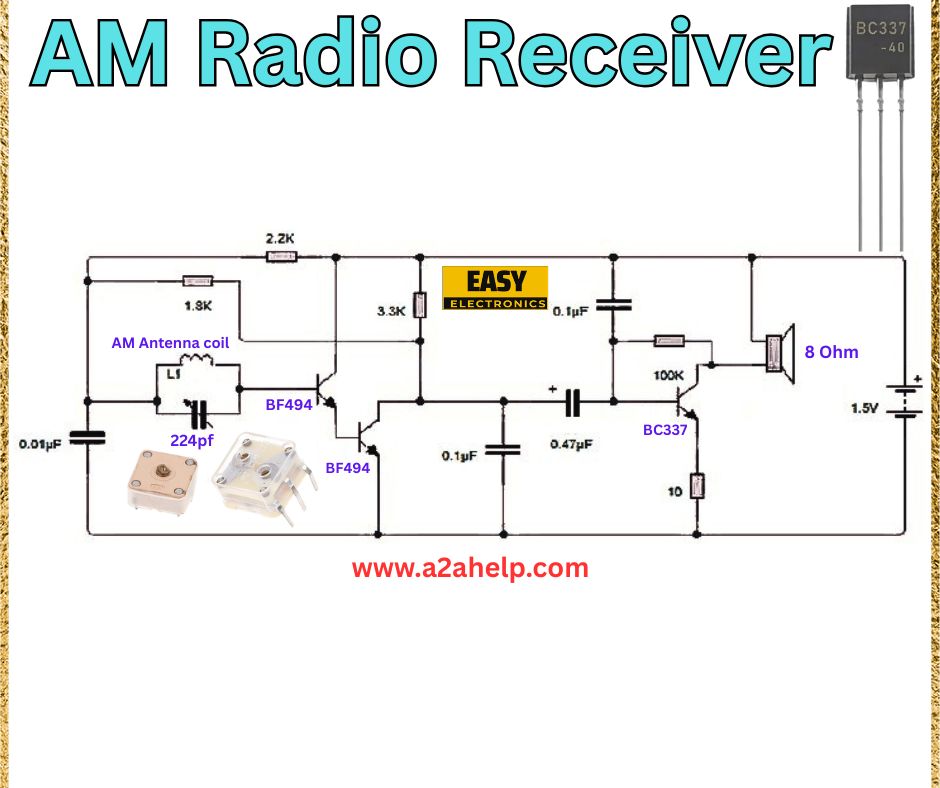

Let’s break down the components and structure of the circuit shown in the diagram:
- Power Supply: The circuit operates on a 1.5V DC supply, making it battery-powered and portable. A single AA battery can suffice.
- AM Antenna Coil (L1) and Variable Capacitor (224 pF): The AM antenna coil and the 224 pF variable capacitor form a tuned LC (inductor-capacitor) circuit. This tank circuit resonates at the desired AM frequency, allowing you to tune into specific stations by adjusting the variable capacitor.
- Transistors (BF494 and BC337):
- BF494: Two BF494 transistors are used in this circuit. The first BF494 acts as an RF amplifier and detector, amplifying the weak AM signal and demodulating it to extract the audio. The second BF494 further amplifies the demodulated signal.
- BC337: The BC337 transistor serves as the audio amplifier, driving the 8-ohm speaker to produce sound.
- Capacitors (0.01 µF, 0.1 µF, 0.47 µF):
- The 0.01 µF capacitor at the input filters high-frequency noise.
- The 0.1 µF capacitor couples the audio signal between stages, blocking DC.
- The 0.47 µF capacitor at the output ensures clean audio delivery to the speaker.
- Resistors (2.2 kΩ, 1.8 kΩ, 3.3 kΩ, 100 kΩ, 10 Ω):
- The 2.2 kΩ, 1.8 kΩ, and 3.3 kΩ resistors bias the BF494 transistors, setting their operating points.
- The 100 kΩ resistor biases the BC337 transistor.
- The 10 Ω resistor at the speaker output stabilizes the audio amplification stage.
- Speaker (8 Ohm): The 8-ohm speaker converts the amplified audio signal into sound you can hear.
How Does the AM Radio Receiver Work?
The AM radio receiver operates in a few key stages:

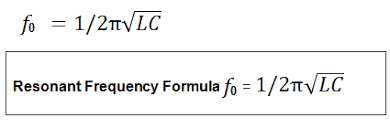

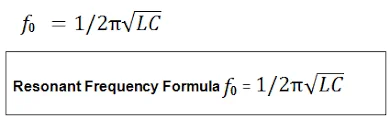

- Tuning and Signal Reception: The AM antenna coil (L1) picks up AM radio signals, and the 224 pF variable capacitor allows you to tune the LC circuit to resonate at the frequency of the desired station (e.g., 1000 kHz). The resonant frequency is determined by the formula:
- While the exact inductance of L1 isn’t specified, AM antenna coils typically have an inductance in the range of 200–300 µH, which, with a 224 pF capacitor, resonates within the AM band.
- RF Amplification and Detection: The first BF494 transistor amplifies the weak RF signal. It also acts as a detector, demodulating the AM signal to extract the audio component by rectifying the signal and filtering out the carrier frequency.
- Audio Amplification: The second BF494 transistor further amplifies the audio signal. Finally, the BC337 transistor boosts the audio signal to a level sufficient to drive the 8-ohm speaker, producing audible sound.
Step-by-Step Guide to Building the AM Radio Receiver
- Gather Your Components:
- AM antenna coil (ferrite rod with coil winding)
- Variable capacitor (224 pF)
- Transistors: 2x BF494, 1x BC337
- Capacitors: 0.01 µF, 0.1 µF, 0.47 µF
- Resistors: 2.2 kΩ, 1.8 kΩ, 3.3 kΩ, 100 kΩ, 10 Ω
- 8-ohm speaker
- 1.5V battery (e.g., AA battery)
- Breadboard or PCB for assembly
- Set Up the Tuned Circuit:
- Connect the AM antenna coil (L1) in parallel with the 224 pF variable capacitor to form the LC tank circuit.
- Add a 0.01 µF capacitor to ground to filter noise.
- Configure the First BF494 Transistor:
- Connect the collector of the first BF494 to the 1.5V supply through the 2.2 kΩ resistor.
- Connect the base to the tuned circuit via the 0.01 µF capacitor.
- Bias the base with the 1.8 kΩ resistor to ground.
- Connect the emitter to ground through the 3.3 kΩ resistor.
- Add the Second BF494 Transistor:
- Couple the output of the first BF494 (from the collector) to the base of the second BF494 using a 0.1 µF capacitor.
- Bias the second BF494 similarly with a 2.2 kΩ resistor to the supply and a 1.8 kΩ resistor to ground.
- Set Up the Audio Amplification with BC337:
- Connect the collector of the second BF494 to the base of the BC337 through a 0.1 µF capacitor.
- Bias the BC337 with a 100 kΩ resistor to the 1.5V supply.
- Connect the collector of the BC337 to the 1.5V supply.
- Connect the emitter to the 8-ohm speaker through a 10 Ω resistor, and couple the speaker to ground with a 0.47 µF capacitor.
- Power Up and Test:
- Connect the 1.5V battery to the circuit.
- Adjust the variable capacitor to tune into an AM station. You should hear audio through the speaker.
Tips for Optimizing Your AM Radio Receiver
- Antenna Coil: Use a ferrite rod antenna for better signal reception. The more turns on the coil, the stronger the signal pickup.
- Tuning Range: If you can’t tune into stations, adjust the number of turns on the antenna coil or use a variable capacitor with a wider range.
- Speaker Quality: An 8-ohm speaker works well, but for louder sound, you can experiment with a small audio amplifier module.
- Interference: Keep the circuit away from sources of electromagnetic interference, like fluorescent lights or motors.
Applications of This AM Radio Receiver
This simple AM radio receiver is perfect for:
- Educational Projects: Learn about RF circuits, tuning, and signal demodulation.
- Hobbyist Fun: Build a working radio and enjoy tuning into local AM stations.
- Emergency Use: A battery-powered AM radio can be a lifesaver for receiving news during power outages.
Why Build a Simple AM Radio Receiver?
This circuit is an excellent introduction to radio electronics. It’s low-cost, requires minimal components, and provides a hands-on understanding of how AM radio works. Plus, there’s nothing more rewarding than hearing your first broadcast through a circuit you built yourself!
Conclusion
Building a simple AM radio receiver is a fantastic project for anyone interested in electronics. With just a few transistors, an antenna coil, and some passive components, you can tune into AM stations and enjoy the magic of radio. Follow the steps above, experiment with tuning, and let us know how your project turns out in the comments below. Happy building, and may you catch your favorite AM station crystal clear!
