If you’ve ever wanted to build your own AM radio receiver, you’re in the right place! This step-by-step guide will walk you through a simple AM pocket radio circuit that’s perfect for beginners. Using just a few components, you can create a functional AM radio that picks up broadcasts in the 520–1610 kHz range. Let’s dive into the circuit, understand its components, and learn how to assemble it for a rewarding electronics project.
What is an AM Pocket Radio Receiver?
An AM (Amplitude Modulation) radio receiver captures radio signals where the audio information is encoded by varying the amplitude of the carrier wave. AM radios are known for their simplicity and ability to pick up long-distance signals, making them a great choice for a DIY project. The circuit we’ll explore today is compact, powered by a 1.5V battery, and outputs sound through an 8-ohm speaker, mimicking the classic pocket radios of the past.
Understanding the AM Pocket Radio Circuit

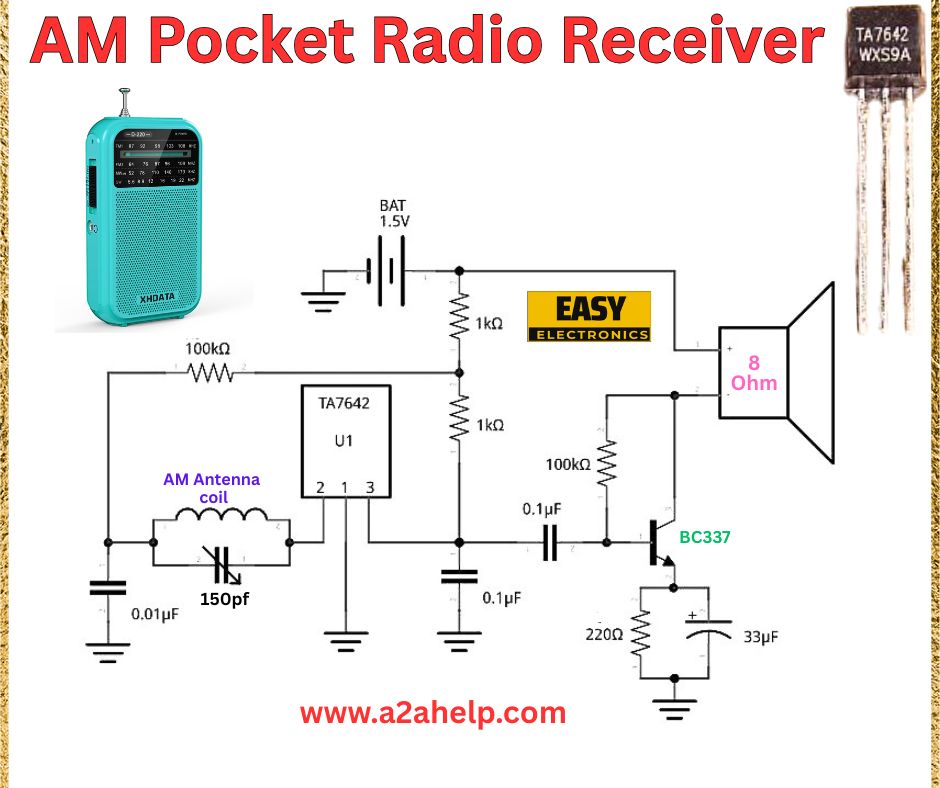

The schematic provided is a minimalist AM radio receiver design, using a single IC and a transistor for amplification. Here’s a breakdown of the circuit and its key components:
- Power Supply: A 1.5V battery powers the circuit, making it portable and easy to use with a single AA battery.
- AM Antenna Coil: The AM antenna coil, paired with a 150pF capacitor, forms the tuning circuit to select the desired AM frequency.
- TA7642 IC (U1): The TA7642 is a low-voltage AM radio IC that handles RF amplification, detection, and audio pre-amplification in one package.
- BC337 Transistor: This NPN transistor amplifies the audio signal to drive the 8-ohm speaker.
- Capacitors: Capacitors like 0.01µF (used twice), 150pF, and 33µF handle filtering and coupling.
- Resistors: Resistors such as 100kΩ (used twice), 1kΩ (used twice), and 220Ω manage biasing and signal levels.
- Speaker: An 8-ohm speaker outputs the audio, making this a true pocket radio.
This design uses a tuned radio frequency (TRF) receiver approach, which is simple and effective for AM reception.
Components Needed for the AM Pocket Radio
Before you begin, gather these components:
- TA7642 AM radio IC (1 unit)
- BC337 NPN transistor (1 unit)
- AM antenna coil (ferrite rod with coil winding)
- Capacitors: 150pF (1), 0.01µF (2), 33µF (1)
- Resistors: 100kΩ (2), 1kΩ (2), 220Ω (1)
- 8-ohm speaker
- 1.5V battery (e.g., AA battery)
- Breadboard or PCB for assembly
- Connecting wires
These components are inexpensive and widely available, making this an accessible project for hobbyists.
How the AM Pocket Radio Circuit Works
Let’s break down the circuit’s operation in simple terms:
- Signal Reception: The AM antenna coil captures AM radio signals. The coil, wound on a ferrite rod, increases the antenna’s efficiency.
- Tuning: The 150pF capacitor and AM antenna coil form an LC tank circuit that resonates at the desired AM frequency. Adjusting the capacitor or coil allows you to tune to different stations.
- RF Amplification and Detection: The TA7642 IC amplifies the weak radio signal, detects the AM modulation, and extracts the audio signal.
- Audio Amplification: The BC337 transistor amplifies the audio output from the TA7642 to a level suitable for the 8-ohm speaker.
- Output: The audio signal passes through a 33µF capacitor to the speaker, allowing you to hear the broadcast.
The TA7642 IC simplifies the design by integrating multiple stages of AM radio processing into one chip, making this circuit ideal for beginners.
Step-by-Step Guide to Build the AM Pocket Radio
Follow these steps to assemble the circuit:
- Set Up the Power Supply: Connect a 1.5V battery (e.g., an AA battery) to the circuit. The positive terminal goes to the 1.5V line, and the negative to the ground.
- Assemble the Tuning Circuit: Connect the AM antenna coil and the 150pF capacitor in parallel to form the LC tank circuit. Ground one end of this circuit.
- Add the TA7642 IC: Place the TA7642 IC on your breadboard or PCB. Connect pin 2 to the tuning circuit, pin 1 to ground through a 0.01µF capacitor, and pin 3 to the audio output stage. Add the 100kΩ and 1kΩ resistors as shown in the schematic.
- Incorporate the BC337 Transistor: Connect the BC337 transistor to amplify the audio signal. The collector connects to the 8-ohm speaker through a 33µF capacitor, the base receives the signal from the TA7642 via a 1kΩ resistor, and the emitter goes to ground through a 220Ω resistor.
- Connect the Speaker: Attach the 8-ohm speaker to the output through the 33µF capacitor.
- Add Filtering Capacitors: Place the 0.01µF capacitors as shown—one between the tuning circuit and ground, and another in the audio path.
- Test the Circuit: Power on the circuit and adjust the tuning (by varying the 150pF capacitor or moving the coil on the ferrite rod) to pick up an AM station. You should hear audio through the speaker.
Tips for Better AM Reception
- Antenna Positioning: Position the ferrite rod antenna away from metal objects to improve signal reception.
- Tuning Adjustments: If you’re not picking up stations, adjust the 150pF capacitor or slide the coil along the ferrite rod to change the inductance.
- Reduce Noise: Keep the circuit away from sources of interference, such as fluorescent lights or electronic devices.
- Battery Check: Ensure the 1.5V battery is fresh, as low voltage can affect performance.
Why Build This AM Pocket Radio?
This AM pocket radio project is a fantastic way to learn about radio electronics, including concepts like LC tuning, RF detection, and audio amplification. It’s also a nostalgic nod to the classic pocket radios of the past, and its low power requirement makes it truly portable. Once you’ve built this circuit, you can experiment with adding a tuning dial or improving the antenna for better reception.
Conclusion
Building a DIY AM pocket radio receiver is a fun and educational project for electronics enthusiasts. With the TA7642 IC, a BC337 transistor, and a handful of components, you can create a working AM radio that fits in your pocket. Follow the steps in this guide, and you’ll be listening to AM broadcasts in no time. Happy building!
