If you’re looking for a high-fidelity audio amplifier project, a 50-watt MOSFET amplifier is one of the best DIY circuits you can build. It’s reliable, efficient, and capable of delivering clear sound output suitable for both hobbyists and serious audio enthusiasts. In this article, we will dive deep into how the 50W MOSFET amplifier circuit works, its components, construction, and applications.
Introduction to MOSFET Amplifiers
MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) transistors are commonly used in modern power amplifiers because of their high input impedance, fast switching speed, low distortion, and thermal stability. Compared to traditional bipolar junction transistor (BJT) amplifiers, MOSFET-based designs produce better linearity and are more rugged under heavy loads.
This 50W MOSFET amplifier circuit is designed to deliver 50 watts of continuous output power into an 8-ohm speaker load, making it ideal for medium-sized speaker systems, home theaters, or standalone amplifier modules.

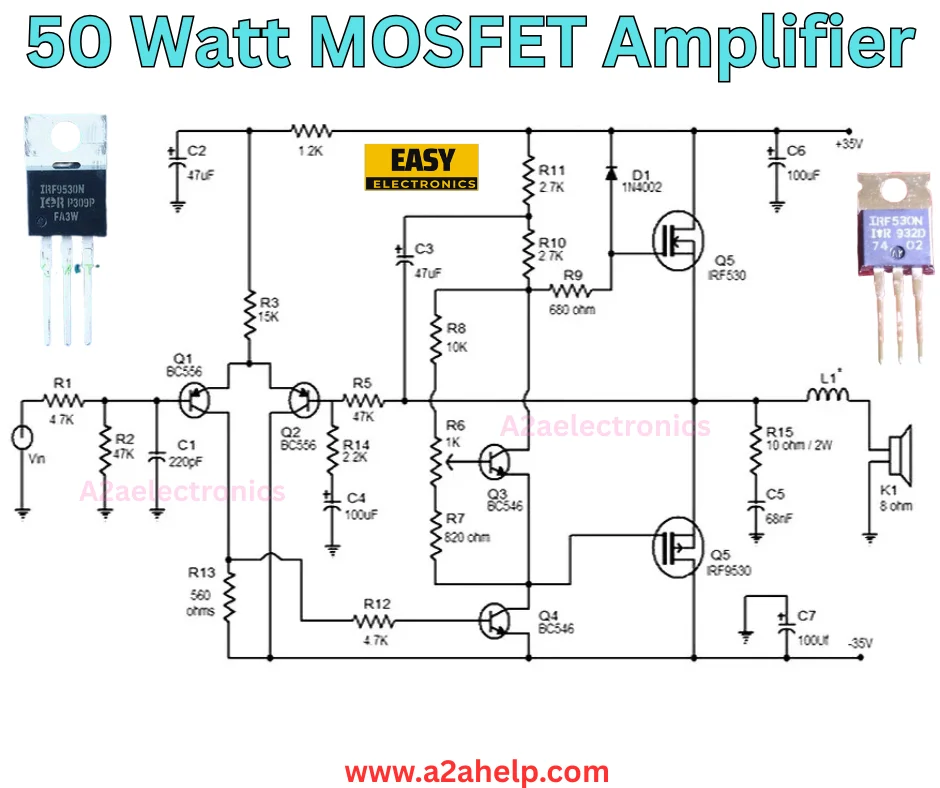

Circuit Overview
The given circuit utilizes:
- Input Stage (Pre-Amplification and Differential Amplifier)
- Driver Stage (Intermediate Gain and Biasing)
- Output Stage (MOSFET Push-Pull Power Amplification)
- Feedback and Stability Network
Together, these sections ensure clean amplification of the input audio signal with minimal noise and distortion.
Working Principle of the 50W MOSFET Amplifier
1. Input Stage
- The audio input signal enters through R1 and R2 (4.7kΩ resistors) and is coupled via capacitor C1 (220pF).
- Transistor Q1 (BC556) acts as part of a differential amplifier pair, ensuring that the input signal is properly amplified while canceling out noise.
- This stage provides the initial voltage gain to prepare the audio signal for amplification.
2. Driver Stage
- Transistors Q2 (BC556) and Q3 (BC546) form the voltage amplification stage (VAS).
- Resistors R5, R6, and R7 establish the bias current, while C4 (100uF) offers decoupling and stability.
- Q3 in particular acts as a level shifter between the input stage and the power MOSFETs, ensuring the correct voltage swing.
3. Biasing and Thermal Stability
- R7 (820 ohm), R14 (2.2k ohm), and D1 (1N4002) set the bias point for the MOSFET drivers Q4 and Q5.
- This prevents crossover distortion, which is common in push-pull Class AB amplifier designs.
- Capacitor C3 (47uF) improves frequency stability, while C5 (68nF) reduces high-frequency oscillations.
4. Output Stage (Power Amplification)
- The complementary MOSFETs IRF530 (N-channel) and IRF9530 (P-channel) act as the final stage.
- These MOSFETs are configured in a push-pull arrangement, allowing the circuit to drive the load (speaker) with significant power.
- When the input signal swings positive, IRF530 (N-channel) conducts; when it swings negative, IRF9530 (P-channel) conducts. Together, they reproduce the entire waveform at much higher power.
5. Feedback & Speaker Output
- Negative feedback is provided through R10, R11, and R12 to control distortion and stabilize gain.
- The amplified audio signal is finally passed through the low-pass filter (L1 + C5) to smooth the output and delivered safely to the 8-ohm speaker.
Key Components in the Circuit
- Q1, Q2 (BC556): Input differential amplifier transistors
- Q3, Q4 (BC546): Driver transistors for level shifting and bias
- MOSFETs Q5 (IRF530) & Q6 (IRF9530): Power output stage
- D1 (1N4002): Provides bias stabilization
- Resistors & Capacitors: Control gain, filtering, frequency stability
- Power Supply: ±35V DC dual rail supply for maximum swing and output power
Power Supply Requirements
For optimal performance, this amplifier requires a dual-rail DC power supply of +35V and –35V, capable of delivering at least 3A continuous current. A regulated power supply with sufficient filtering capacitors is recommended to minimize hum and noise in the output sound.
Applications of a 50W MOSFET Amplifier
This amplifier design has a wide range of practical applications:
- Home Audio Systems – Drive bookshelf or floor-standing speakers with clean output
- DIY Speaker Projects – Perfect for hobbyists wanting to build their amplifier
- Subwoofer Amplifier – Can power an 8-ohm subwoofer with strong bass response
- Musical Instrument Amplifiers – Works as a guitar or keyboard amplifier with minimal distortion
- Public Address (PA) Systems – Provides medium-range amplification for announcements and small venues
Advantages of MOSFET Amplifier over BJT Amplifiers
- High Input Impedance – Ensures minimal loading on the input source
- Better Thermal Stability – MOSFETs are less prone to thermal runaway than BJTs
- Fast Switching and Response Time – Handles higher frequencies efficiently
- Rugged and Durable – Can handle overloads better without damage
- Smooth Distortion Characteristics – Produces a more natural, tube-like sound quality
Safety Precautions
Working with this circuit requires caution since it involves high voltage (±35V) and significant current handling. Follow these safety points:
- Always build and test on a proper PCB to avoid shorts.
- Ensure MOSFETs are mounted on heatsinks to prevent overheating.
- Handle power connections carefully – incorrect wiring can damage transistors instantly.
- Use a fused power supply for added protection.
- Do not connect sensitive equipment until the amplifier is tested and confirmed stable.
Tips for Best Performance
- Use high-quality capacitors for coupling and decoupling to improve sound clarity.
- Match MOSFETs correctly (IRF530 & IRF9530) to maintain balance between the positive and negative cycles.
- Place the amplifier in a well-ventilated enclosure with airflow for MOSFET cooling.
- Ensure proper grounding to reduce hum noise at the speaker output.
- If driving large speakers, use an external preamplifier with tone control for better sound customization.
Conclusion
The 50 Watt MOSFET Amplifier is a solid DIY project for electronics enthusiasts and audio lovers who want to build their amplifier system. Its design is simple yet powerful, delivering high-quality audio output with low distortion. The use of complementary MOSFETs ensures ruggedness, efficiency, and smooth sound reproduction.
Whether you plan to use it for your home stereo, DIY audio projects, or even as a subwoofer driver, this amplifier ticks all the boxes. With the right components, proper assembly, and careful handling, you can enjoy a professional-grade audio amplifier built by your own hands.
