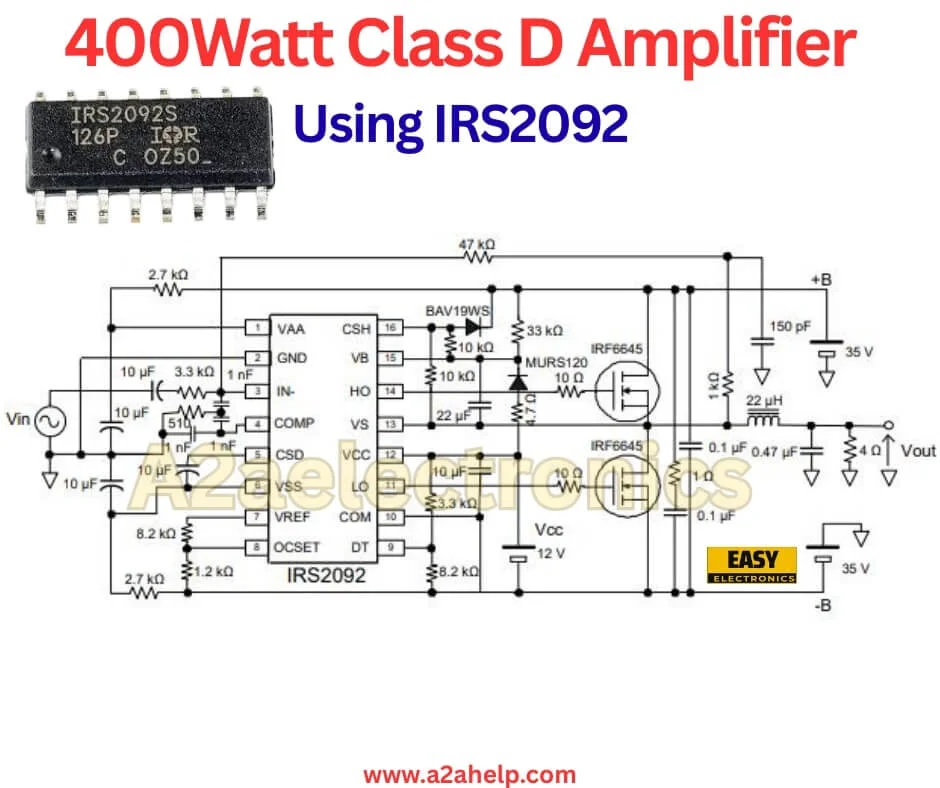

Hey, friend, if you’ve spotted this schematic for a 400W Class D amplifier using the IRS2092 IC, you’re likely itching to build something powerful for your audio setup. I’ve worked with Class D designs before, and this one looks like a solid choice for high-efficiency amplification, perfect for home theater systems, car audio, or even a DIY PA rig. The image from Easy Electronics shows the circuit with the IRS2092 chip front and center, along with key components and a ±35V supply. Let’s break it down together—I’ll explain how it works, what each part does, and how you can assemble it. Think of this as a hands-on chat at the workbench, keeping it practical and clear.
Why Choose a 400W Class D Amplifier?
First, let’s talk about why a Class D amplifier like this stands out. Unlike Class AB amps that waste power as heat, Class D switches the output transistors on and off rapidly to deliver power efficiently—often 85-90% or more. That means you get 400W into a 4-ohm speaker with a smaller heatsink and less power draw from your supply. It’s ideal if you want loud, clean sound without a bulky setup.
The IRS2092 is a popular choice for this because it’s a dedicated Class D audio driver with built-in protection features like overcurrent and thermal shutdown. This design promises 400W, likely into a 4-ohm load with a ±35V supply, making it great for driving subwoofers or full-range speakers. It’s also compact, which is a bonus for space-conscious projects. Just a heads-up: working with high voltages and switching circuits requires care—use insulated tools and test safely.
Overview of the Circuit
The schematic is a straightforward Class D topology centered around the IRS2092. The input signal comes in, gets processed by the IC, and drives two MOSFETs (IRF6645) that switch to create a pulse-width modulated (PWM) output. This PWM signal is filtered to produce clean audio for the speaker. The circuit uses a ±35V supply for the output stage and a 12V rail for the IC’s logic.
Key sections include the input filter, the IRS2092 with its control pins, the MOSFET driver stage, and the output LC filter. The layout suggests a single-sided PCB is feasible, with the IC handling most of the heavy lifting. The image also shows a photo of the IRS2092 chip, reinforcing its role as the heart of the design.
Key Components and Their Roles
Let’s go through the main components listed in the schematic. I’ve noted their values so you can source them easily.
- Integrated Circuit:
- IRS2092: A Class D audio controller with 16 pins, managing PWM generation, protection, and MOSFET driving.
- MOSFETs:
- IRF6645 (2x): High-speed N-channel MOSFETs for the output stage, switching the PWM signal.
- Resistors:
- R1, R2 (27k): Input resistors setting the gain and feedback network.
- R3 (3.3k): Pull-up resistor for the IN- pin.
- R4 (47k): Feedback resistor for stability.
- R5 (10k): Pull-down resistor for the COMP pin.
- R6 (33k): Sets the oscillator frequency with C5.
- R7 (0.1 ohm, 5W): Current sense resistor for protection.
- R8 (1k): Pull-up for the VAA pin.
- Capacitors:
- C1, C2 (10uF): Input coupling caps to block DC.
- C3 (10nF): Compensation cap for the COMP pin.
- C4 (22uF): Decoupling cap for the VSS pin.
- C5 (1nF): Sets the PWM frequency with R6.
- C6 (150pF): Feedback cap for the oscillator.
- C7 (0.1uF): Decoupling for the VAA pin.
- C8 (0.47uF): Output filter cap.
- Inductor:
- L1 (22uH): Output filter inductor to smooth the PWM into audio.
- Diodes and Voltage:
- D1 (BAW19WS): Protection diode.
- ±35V: Supply for the output stage.
- 12V: Logic supply for the IRS2092.
The IRF6645 MOSFETs are rated for high current and fast switching, crucial for Class D efficiency. Total parts cost should be under $20 if you shop for bulk or surplus.
How the Circuit Works: Step by Step
Let’s follow the signal path. Picture your audio input—say from a phone—entering the circuit.
Input Processing
The signal hits C1 (10uF) and goes to the IN+ pin (pin 4) of the IRS2092, with IN- (pin 3) as the reference. R1 and R2 (27k) form a voltage divider, setting the input impedance and feeding back to the COMP pin (pin 5) via C3 (10nF) for stability. This stage amplifies and shapes the signal into a form the IC can use.
PWM Generation
The IRS2092 generates a PWM signal based on the input. The oscillator frequency is set by R6 (33k) and C5 (1nF), likely around 300-400kHz—fast enough to be filtered out by the speaker. The VREF pin (pin 8) and OCSET pin (pin 9) configure the overcurrent threshold, while DT (pin 9) adds a dead time to prevent shoot-through in the MOSFETs.
Output Stage
The HO (pin 14) and LO (pin 11) pins drive the gates of the IRF6645 MOSFETs. When HO is high, the top MOSFET conducts; when LO is high, the bottom one does. This switching creates a square wave whose duty cycle varies with the audio signal. R7 (0.1 ohm) senses current, feeding back to the CSD pin (pin 5) for protection.
Output Filtering
The PWM output goes through L1 (22uH) and C8 (0.47uF), forming a second-order low-pass filter. This converts the high-frequency PWM back to an audio signal, delivering up to 400W into a 4-ohm load at ±35V. The 35V rails suggest a peak power of about 612W (V^2/R), derated for efficiency and real-world conditions.
Protection and Power
The IRS2092 includes overcurrent and thermal protection, triggered by the CSD pin. D1 (BAW19WS) and the 12V supply ensure the IC operates safely. The ±35V rails power the MOSFETs, while the 12V rail keeps the logic alive.
Building and Testing Tips
Ready to build? Start with a prototype on a breadboard for the input, then move to a PCB. Here’s how:
- Assembly: Solder the IRS2092 first, ensuring correct pin alignment. Use a socket for easy replacement. Mount IRF6645s on heatsinks—they switch fast but still generate heat.
- Power Supply: Build a ±35V supply with a center-tapped transformer, bridge rectifier, and 4700uF caps per rail. Add a 12V regulator (e.g., 7812) for the IC.
- Filter Design: Calculate L1 and C8 for your speaker impedance. For 4 ohms, 22uH, and 0.47uF gives a cutoff around 17kHz—adjust if needed.
- Testing: Apply a 1kHz sine wave. Use an oscilloscope to check the PWM output before the filter and audio after. Ramp up volume slowly.
- Safety: Enclose it, add 2A fuses on each rail, and ground the case. Check for oscillation with a scope.
Common issues: No output (check 12V supply), distortion (tweak filter), or overheating (improve cooling). Efficiency should hit 85%, so heat is minimal.
Pros and Cons of This Design
Pros: High efficiency, compact, powerful output, built-in protection. Cons: Requires precise filter tuning, is sensitive to layout (EMI risks), and needs a good power supply. Great for modern audio, but needs care in construction.
Wrapping It Up
This 400W Class D amplifier using the IRS2092 is a fantastic project for audio enthusiasts. It delivers serious power with high efficiency, perfect for upgrading your sound system. If you build it, take it step by step and stay safe. Let me know how it turns out!
Frequently Asked Questions
What is the IRS2092 IC?
It’s a Class D audio controller that generates PWM and drives MOSFETs.
Can I use different MOSFETs?
Yes, but match voltage (e.g., IRF540) and speed ratings.
How much power supply do I need?
±35V at 5-6A per rail, so a 300-400VA transformer.
What’s the frequency response?
20Hz-20kHz, depending on filter tuning.
Is it safe for beginners?
Not really—high voltage and switching need experience.
Can it drive 8-ohm speakers?
Yes, but power drops to ~200W—use a 4-ohm load for full 400W.
